Description

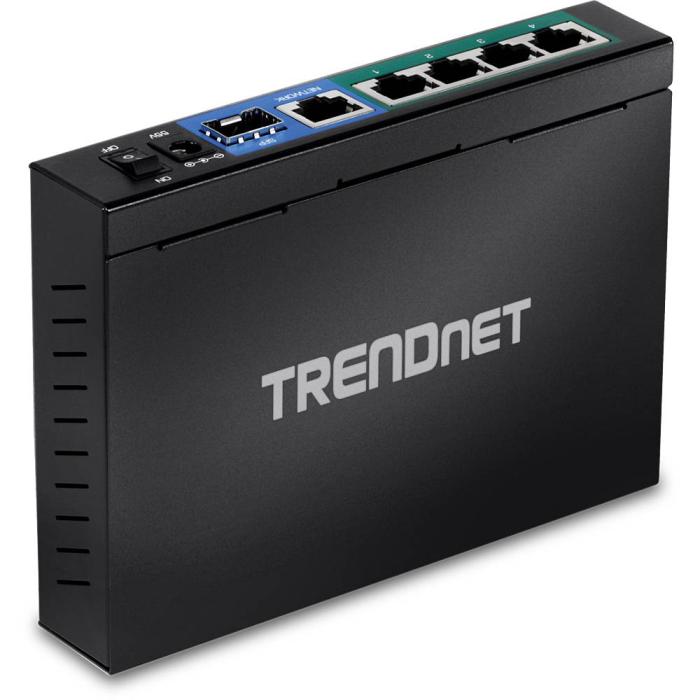

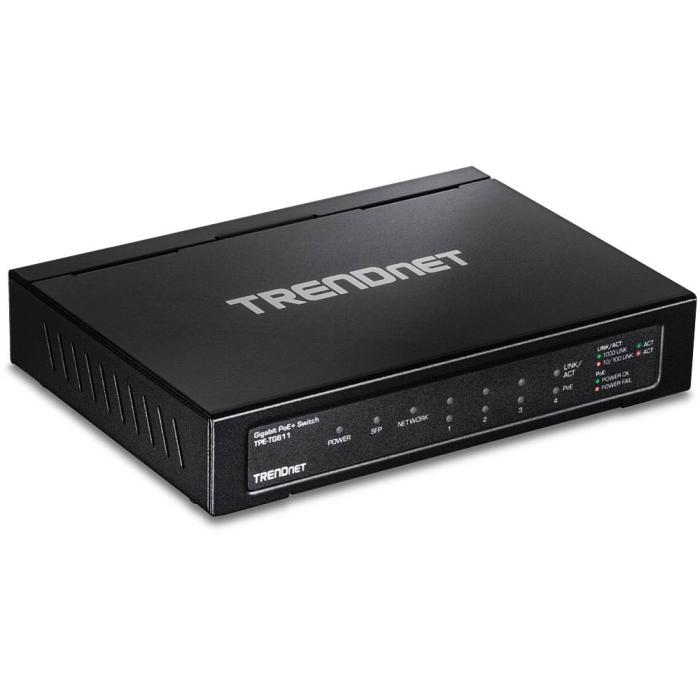

Trendnet TPE-TG611 switch in black, a Gigabit Ethernet switch with five RJ-45 ports and one SFP port for fibre optic, featuring Power over Ethernet (PoE) in accordance with IEEE 802.3af and 802.3at standards. With a metal casing and wall-mounting capability, this model offers a switching capacity of 12 Gbit/s, a MAC address table of 2000 entries, and support for jumbo frames up to 9000 bytes. Its full-duplex operation and Quality of Service (QoS) per IEEE 802.1p facilitate efficient network traffic management, while the forwarding rate of 8298 Mpps ensures smooth transmission in demanding work environments.
Specifications
Management features
- Quality of Service (QoS) support: Yes
Ports & interfaces

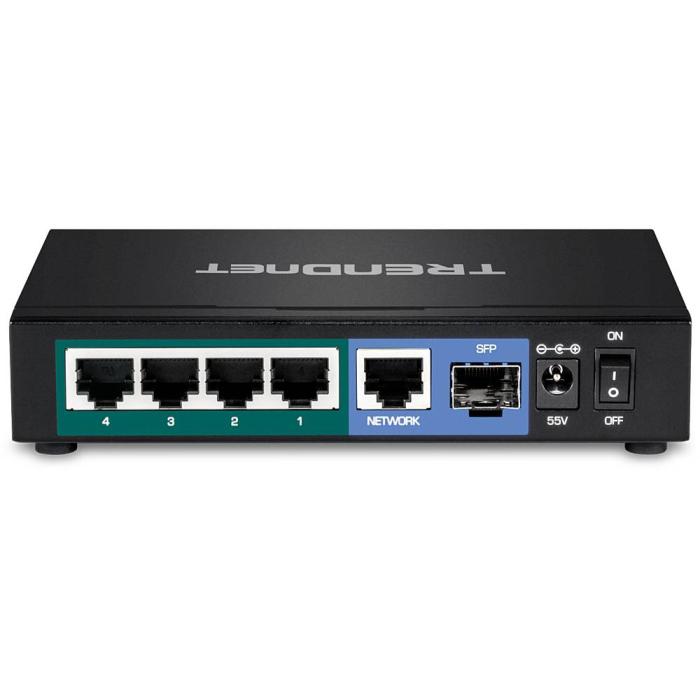

- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Fiber ports quantity: 1
- Fiber optic connector: SFP
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Full duplex: Yes
Optical fiber
- Fiber ethernet cabling technology: 100BASE-FX, 1000BASE-FX
Data transmission
- Switching capacity: 12 Gbit/s
- Forwarding rate: 8298 Mpps
- MAC address table: 2000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes

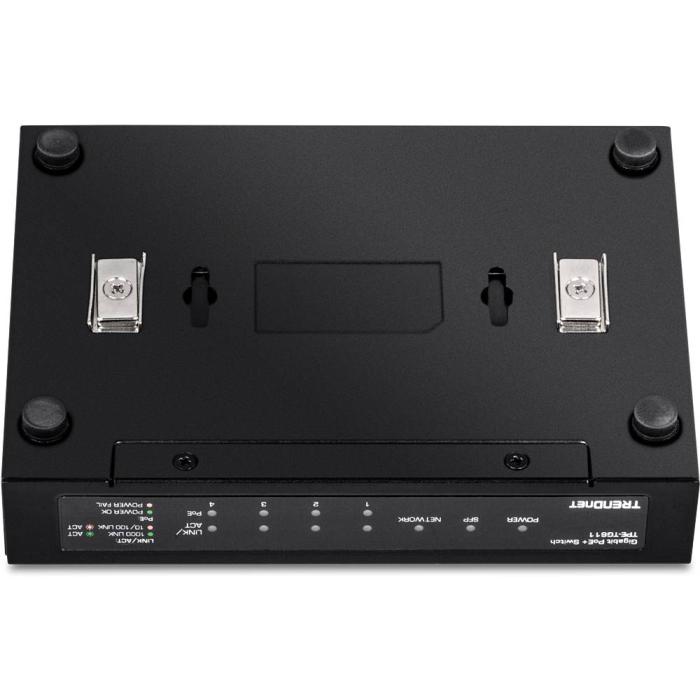

- Wall mountable: Yes
Performance
- Mean time between failures (MTBF): 1401356 h
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC input voltage: 55 V
- Power consumption (max): 71.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+
- Power over Ethernet plus (PoE+) ports quantity: 4
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 65 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 193 mm
- Depth: 84 mm
- Height: 26 mm
- Weight: 356 g

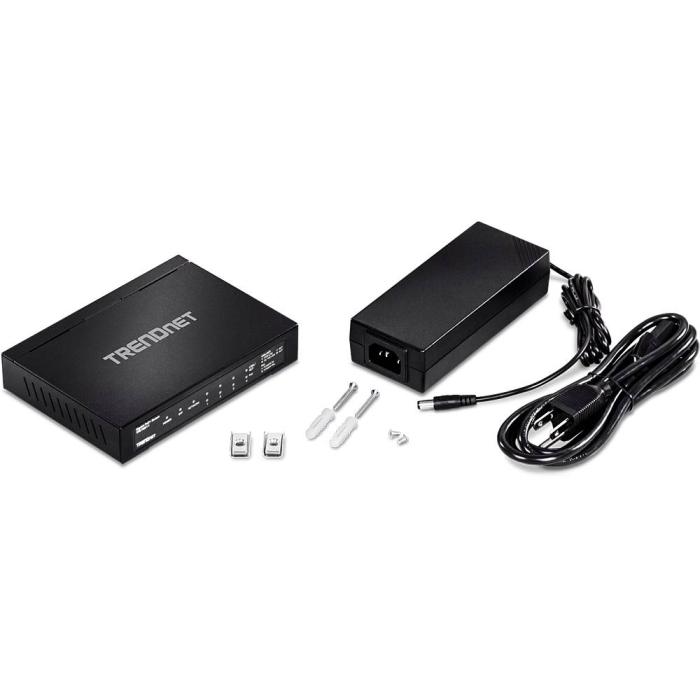

Packaging content
- Cables included: AC
- User guide: Yes
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
