Description

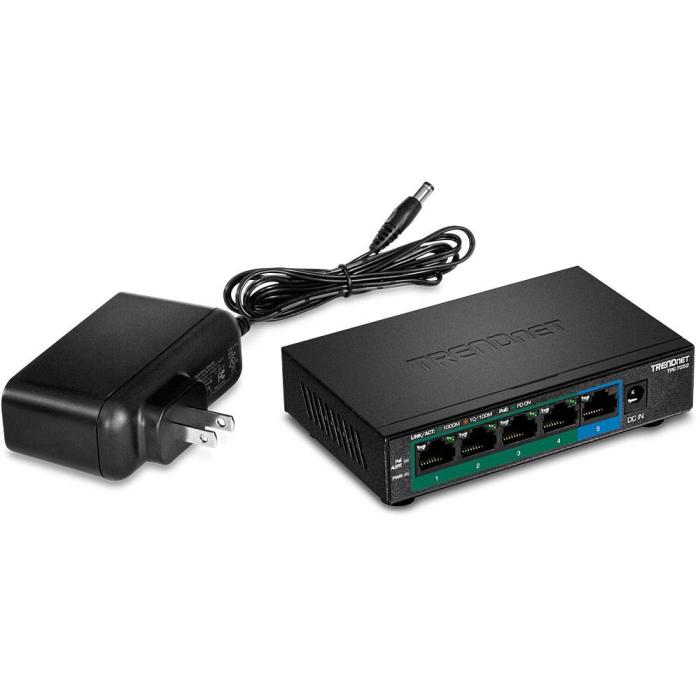

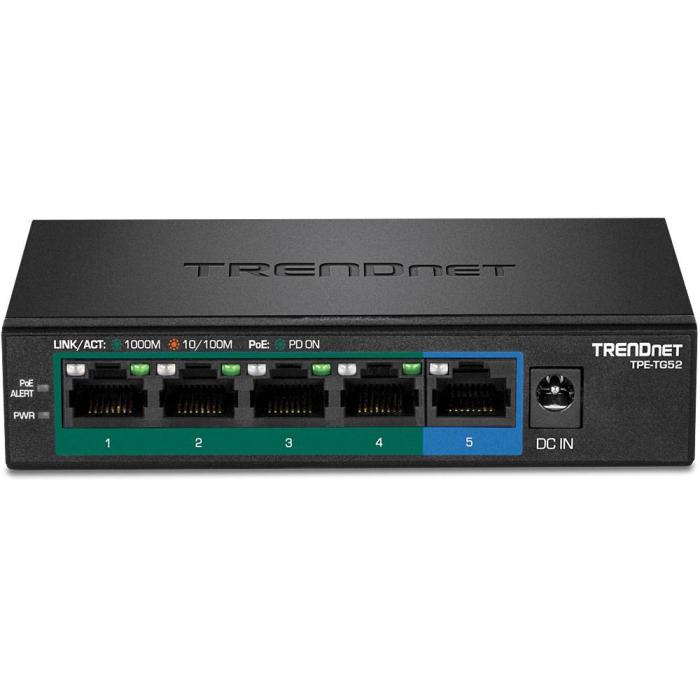

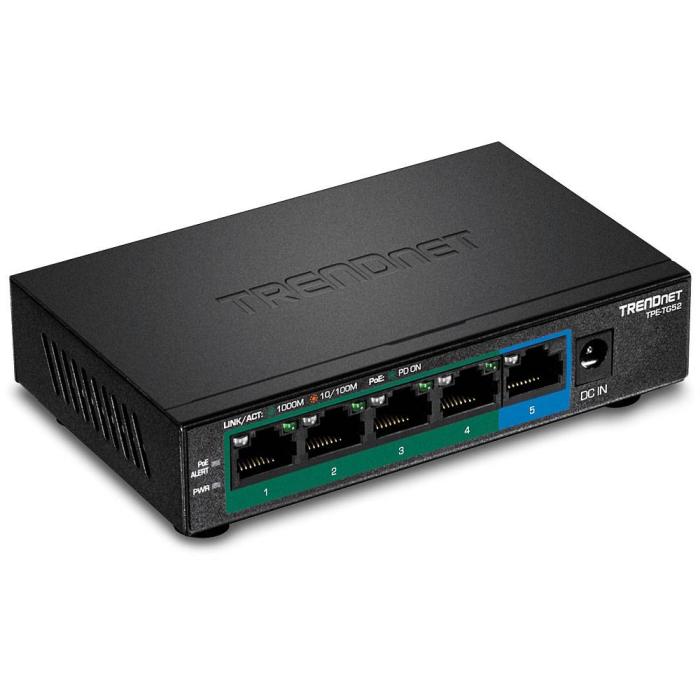

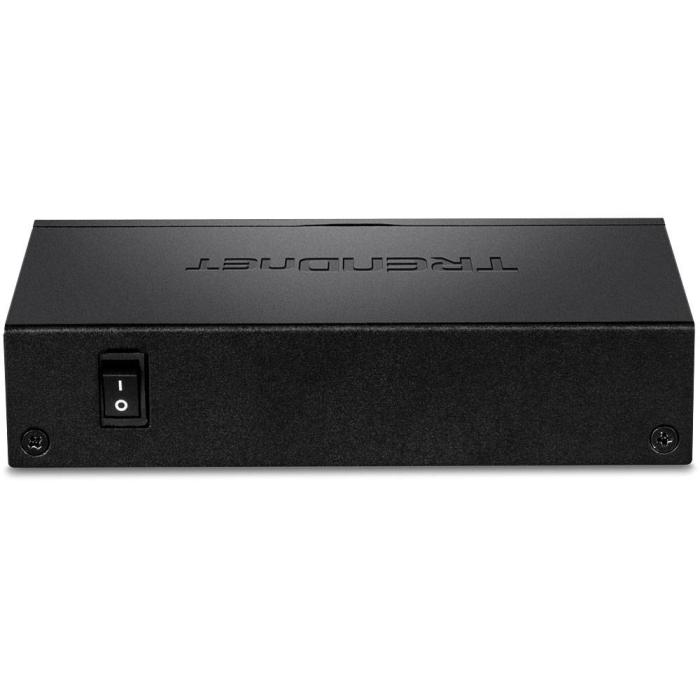

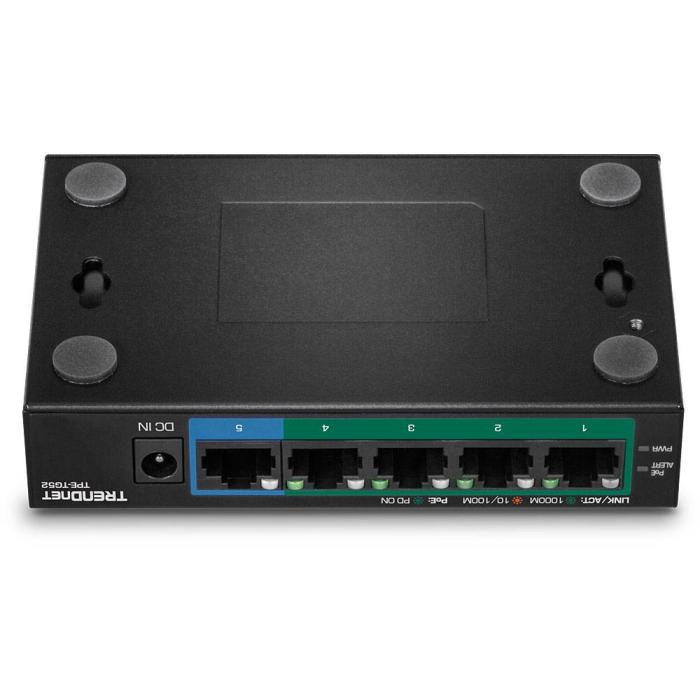

Trendnet TPE-TG52 unmanaged switch with five Gigabit Ethernet ports (10/100/1000) and PoE support, finished in black to blend discreetly into your network. This unit offers 10 Gbit/s switching, a MAC address table of 2000 entries, and a forwarding rate of 7.44 Mpps, with support for jumbo frames up to 9000 bytes. It includes QoS and VLAN support to segment traffic, as well as full-duplex and half-duplex operation according to IEEE 802.3, 802.3ab, 802.3af, 802.3at, 802.3p, 802.3u, and 802.3x standards. Its LED indicators for activity, link, PoE, and power let you quickly monitor the status of each connection.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Half duplex: Yes
- VLAN support: Yes
Optical fiber
- Switching optical modules type: Gigabit Ethernet
Data transmission
- Switching capacity: 10 Gbit/s
- Forwarding rate: 7.44 Mpps
- MAC address table: 2000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 0.128 MB
Design
- Product colour: Black
- Housing material: Metal
- LED indicators: Activity, Link, PoE, Power
- Wall mountable: Yes
Performance
- Fanless: Yes
- MTBF (PoE): 3516000 h
Power
- Power source: AC/DC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC input voltage: 54 V
- Input current: 1.2 A
- Power consumption (max): 36 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 32 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 121 mm
- Depth: 75 mm
- Height: 26 mm
- Weight: 246 g
Certificates
- Certification: CE, FCC, LVD
Logistics data
- Harmonized System (HS) code: 85176990
