Description

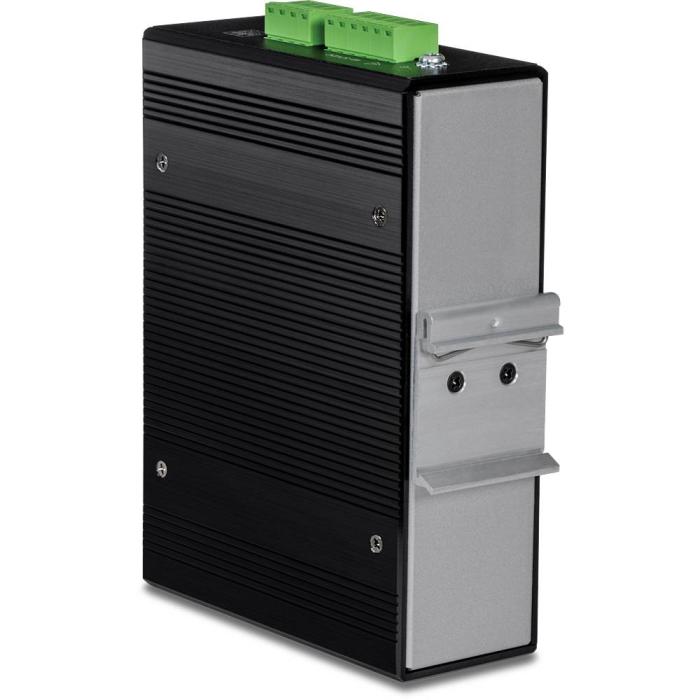

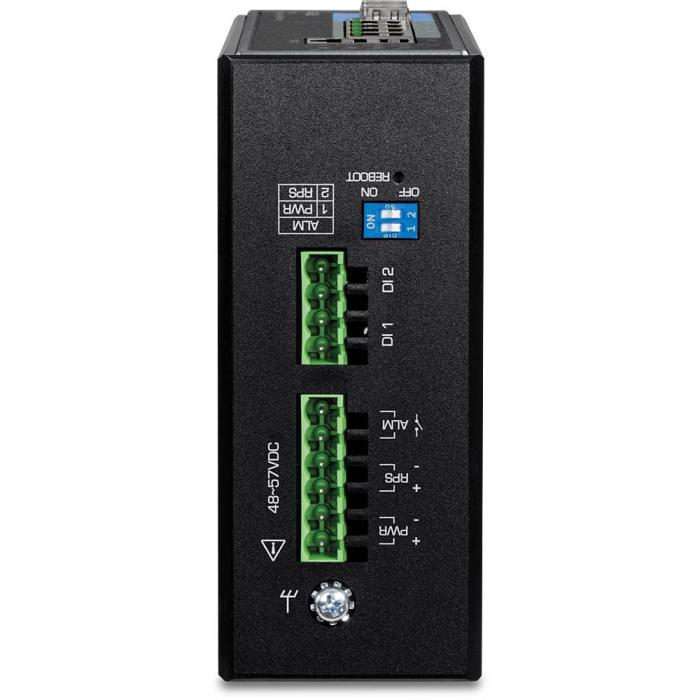

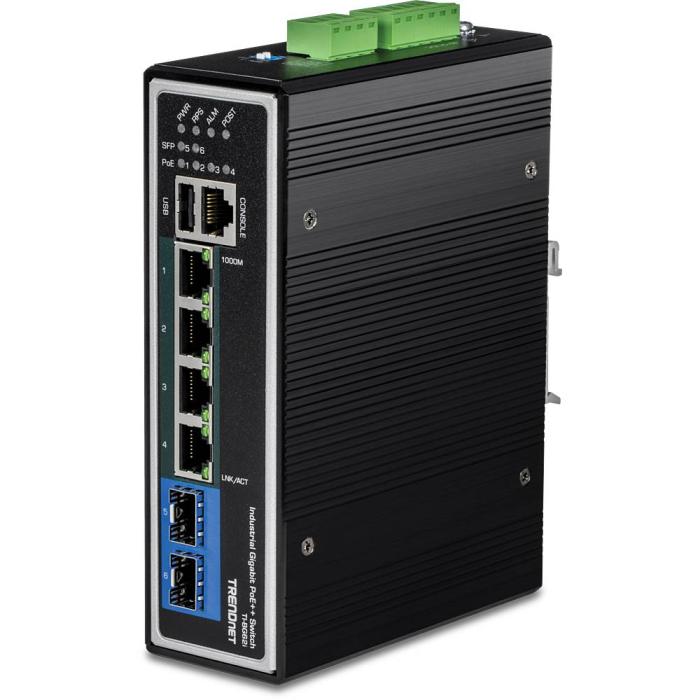

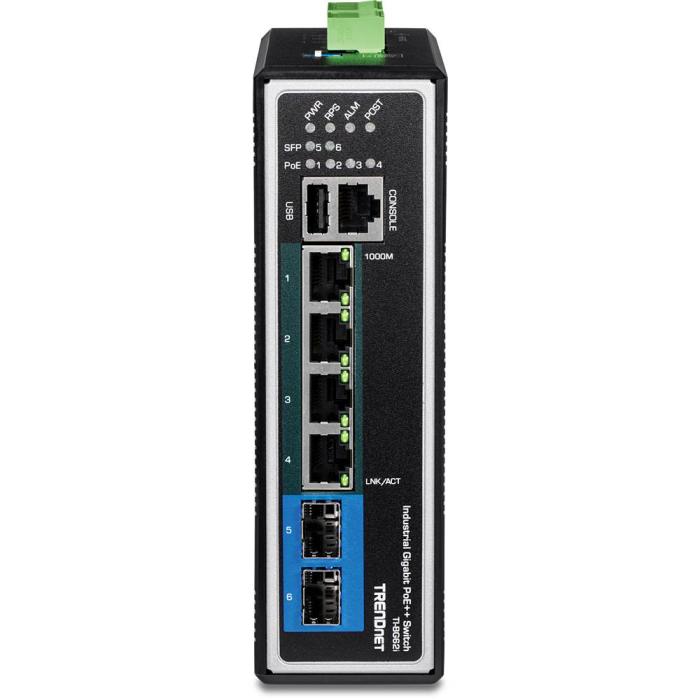

The Trendnet TI-BG62I managed L2+ switch, in a black finish, offers four Gigabit Ethernet (10/100/1000) RJ-45 ports with PoE support and two additional SFP modules for fibre links. Its web-based management and CLI configuration allow precise control, including ARP inspection and system event logging. With quality of service (QoS), VLAN support, storm control, and spanning tree protocol, it manages network traffic efficiently. Additionally, it supports link aggregation, flow control, and MAC address auto-learning for a stable network.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 4
- Installed SFP modules quantity: 2
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 80
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- MAC address auto-learning supported: Yes
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Stacked VLAN, Tagged VLAN
- Number of VLANs: 4094
Data transmission
- Switching capacity: 12 Gbit/s
- Forwarding rate: 8.9 Mpps
- MAC address table: 16000 entries
- Store-and-forward: Yes
- Number of IP interfaces: 16
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 0.512 MB
Security
- DHCP features: DHCP Option 82, DHCP relay, DHCP server, DHCP snooping
- IGMP snooping: Yes
- Security algorithms: SSH
- Authentication: Guest VLAN, Port-based authentication
- Authentication type: IEEE 802.1x, RADIUS
- Queue scheduling algorithms: Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: SNMP v1 / 2c / 3
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- Reset button: Yes
- LED indicators: Yes
- International Protection (IP) code: IP30
Power
- Power source: DC/PoE
- Power supply included: Yes
- Power consumption (max): 380 W
- Power protection features: Over current, Short circuit
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet 4PPoE (PoE++) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 360 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 50 mm
- Depth: 118 mm
- Height: 170 mm
- Weight: 956 g
Packaging content
- Quick start guide: Yes
Certificates
- Certification: FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
