Name: D-Link 12-Port L2 Managed Switch Switch with 8 x 10/100/1000BaseT(X) & 4 x 100/1000BaseSFP
Brand: D-LINK
Price: 1339.71 USD
Availability: InStock

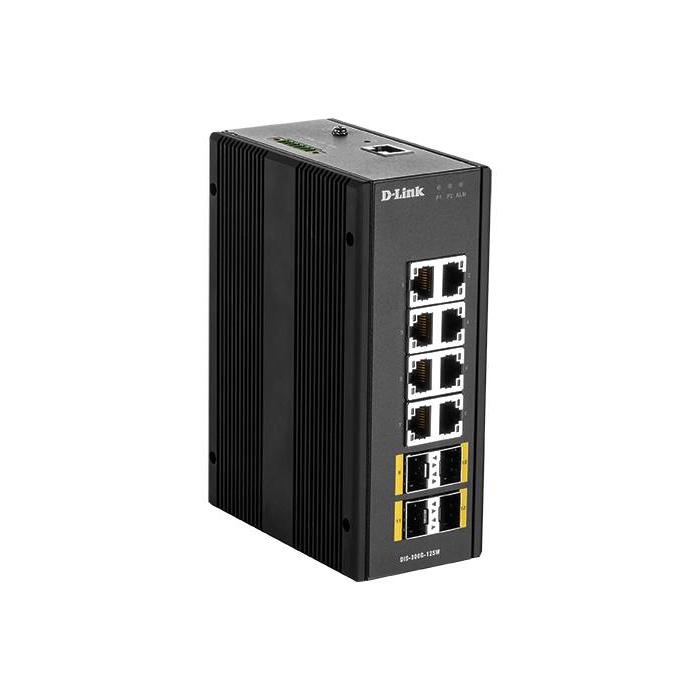

D-Link 12-Port L2 Managed Switch Switch with 8 x 10/100/1000BaseT(X) & 4 x 100/1000BaseSFP

$1,339.71

$1,339.71 without VAT

Amount

Brand: D-LINK

SKU: 80712 PRC: 210544 EAN: 790069437915 PN: DIS-300G-12SW

Description

D-Link 12-Port L2 Managed Switch Switch with 8 x 10/100/1000BaseT(X) u0026 4 x 100/1000BaseSFP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
Traffic shaping: Yes
System event log: Yes
MIB support: RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Fiber optic connector: LC

Network

Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G support: No
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Auto-negotiation: Yes
VLAN support: Yes
Virtual LAN features: Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs: 1024

Data transmission

MAC address table: 8000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 9000

Security

DHCP features: DHCP server, DHCP snooping, DHCP relay, DHCP client
Security algorithms: HTTPS, SNMP, SNMPv3, SSH
Authentication type: IEEE 802.1x, RADIUS
Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes

Design

Rack mounting: No
Product colour: Black
LED indicators: LAN, Status
International Protection (IP) code: IP30
Wall mountable: Yes

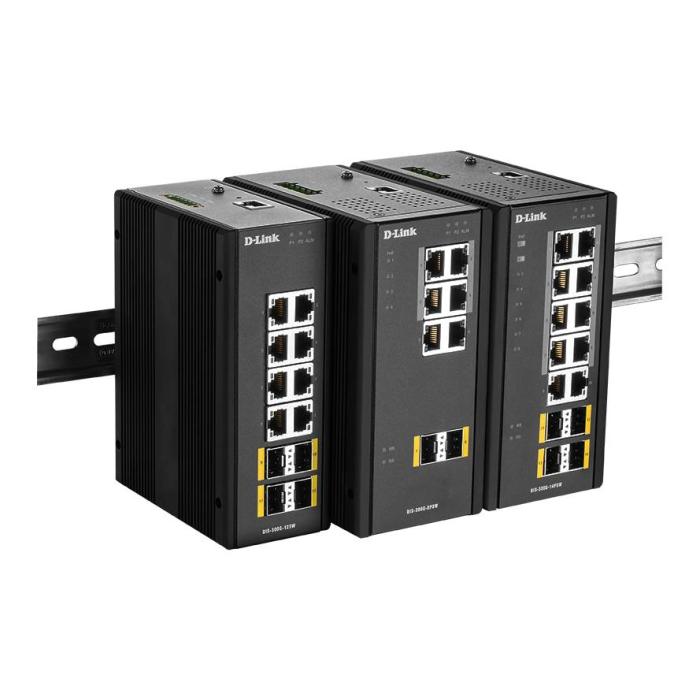

DIN rail mounting: Yes
Electromagnetic compatibility: FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6

Performance

Firmware upgradeable: Yes

Power

DC input voltage: 12 - 58 V
Power consumption (max): 17 W
Power protection features: Over current, Reverse polarity

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 61 mm
Depth: 154 mm
Height: 109 mm
Weight: 1.09 kg

Packaging data

Package width: 195 mm
Package depth: 242 mm
Package height: 118 mm
Package weight: 1.53 kg

Technical details

Shipping (inner) case height: 27 cm
Shipping (inner) case width: 41 cm
Shipping (inner) case length: 60 cm
Shipping (inner) case net weight: 15.3 kg
Products per shipping (inner) case: 10 pc(s)
Pallet gross weight (air): 346.7 kg
Master (outer) cases per pallet (air): 20 pc(s)
Products per pallet (air): 200 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 110 cm
Pallet height (air): 148.5 cm
Pallet gross weight (sea): 478.6 kg
Master (outer) cases per pallet (sea): 28 pc(s)
Products per pallet (sea): 280 pc(s)
Pallet height (sea): 2.02 m
Shipping (inner) case gross weight: 16.5 kg

Certificates

Certification: IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE

Logistics data

Harmonized System (HS) code: 85176990
