Description

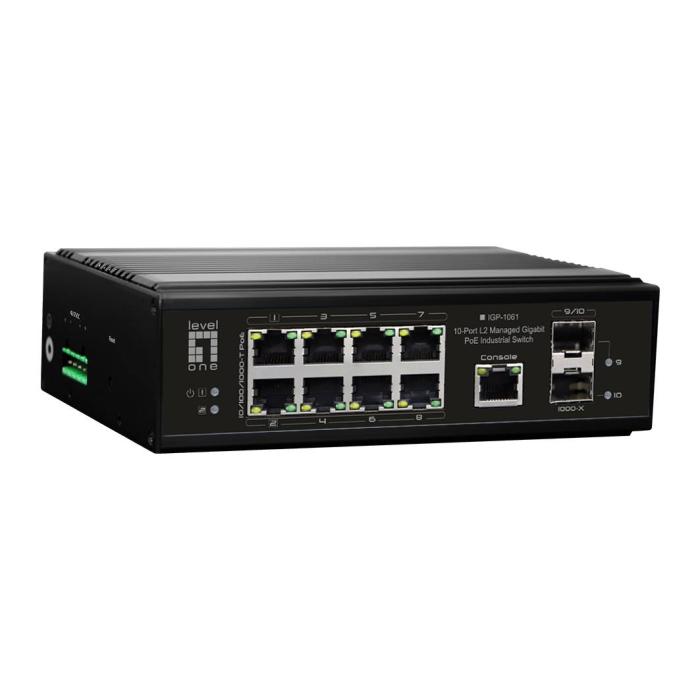

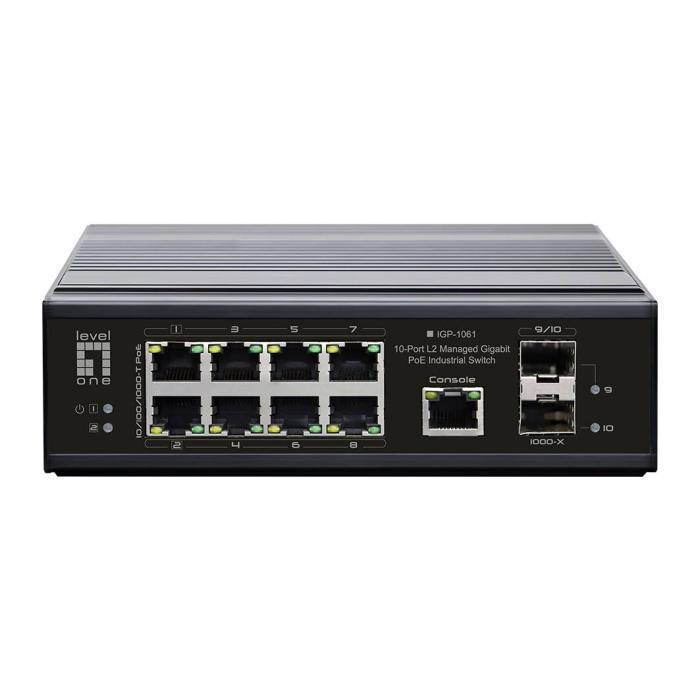

Connect up to eight Gigabit Ethernet ports and two SFP slots with the LevelOne IGP-1061 switch, a managed L2 model in black that offers web-based administration, QoS support, and ARP inspection for fine-grained network control. Its design incorporates spanning tree functions, storm control, link aggregation, and port mirroring, as well as IEEE 802.3af, at, and bt standards for PoE power delivery to connected devices. VLAN management adapts to various scenarios with options such as port-based, protocol-based, or voice VLAN, while auto-negotiation simplifies integration with diverse equipment. Includes an RJ-45 console port for straightforward initial configuration.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- Installed SFP modules quantity: 2
- Console port: RJ-45
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
- MAC address table: 8000 entries
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
Security
- DHCP features: DHCP Option 82, DHCP client, DHCP relay, DHCP snooping
- MAC address filtering: Yes
- BPDU filtering/protection: Yes
- Password protection: Yes
Multicast features
- Multicast support: Yes
Design
- Rack mounting: No
- Product colour: Black
- LED indicators: Activity, Link, PoE, Power
- DIN rail mounting: Yes
Performance
- Internal memory: 1024 MB
- Flash memory: 128 MB
- Noise level: 0 dB
- Fanless: Yes
- Mean time between failures (MTBF): 338634 h
Power
- Power source: DC

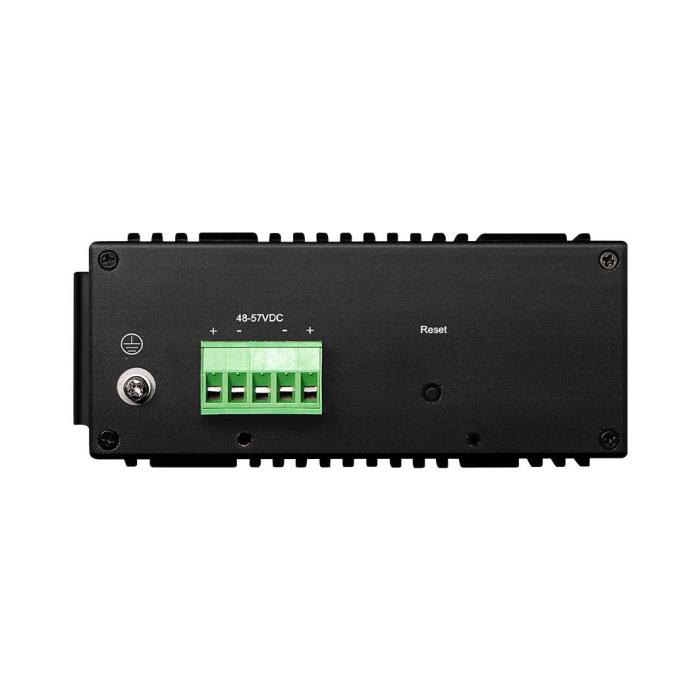

- DC input voltage: 48 - 57 V
- Power consumption (typical): 5 W
- Power consumption (max): 380 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) power per port: 10 W
- Total Power over Ethernet (PoE) budget: 360 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 165 mm
- Depth: 115 mm
- Height: 50 mm
- Weight: 500 g
Packaging content
- Quick start guide: Yes
Packaging data
- Package type: Box
- Package width: 270 mm
- Package depth: 181 mm
- Package height: 74 mm
- Package weight: 1.13 kg
Certificates
- Certification: CE, RoHS
Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
