Description

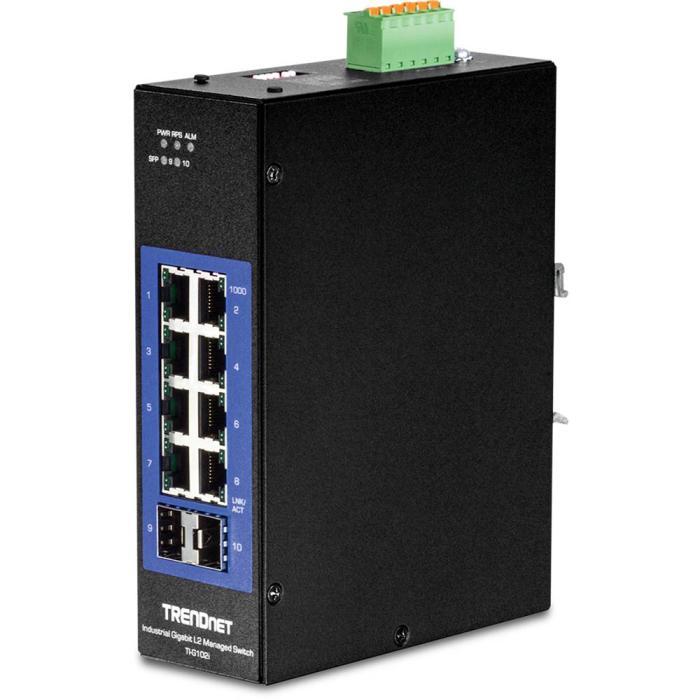

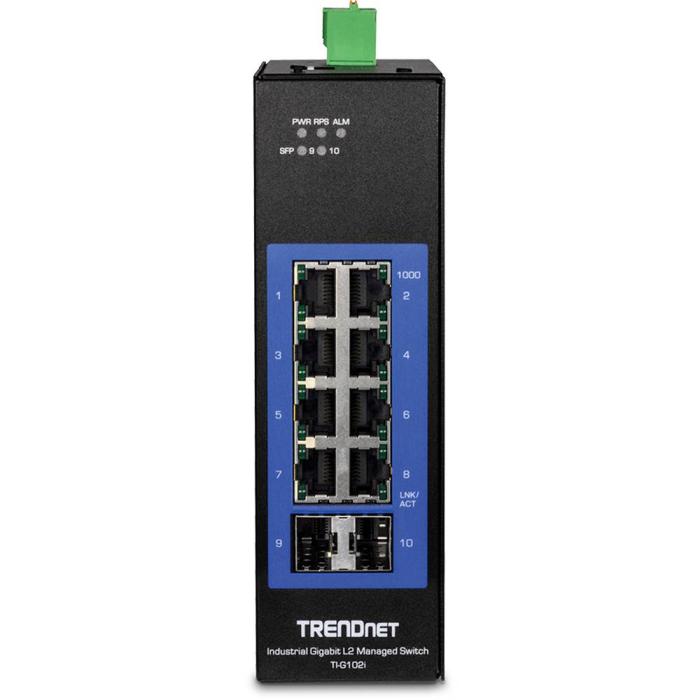

The Trendnet TI-G102i is a managed Layer 2 switch with eight Gigabit Ethernet (10/100/1000) ports and two SFP slots, all in a black finish. It offers management functions such as quality of service (QoS) support, event logging and CLI configuration, as well as protocols such as spanning tree, link aggregation and storm control. Its switching capacity reaches 20 Gbit/s, with a MAC address table for 8192 entries and Jumbo Frame support, while port mirroring and full duplex mode facilitate monitoring and performance in small or medium networks.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Configuring Location Settings (CLI): Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 80
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 8192 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10240
Security
- DHCP features: DHCP relay
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- BPDU filtering/protection: Yes
- Authentication: Guest VLAN
- Authentication type: RADIUS
Multicast features
- Multicast support: Yes
- Number of multicast groups filtered: 256
Protocols
- Management protocols: SNMP v1, v2c, v3
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- Reset button: Yes
- LED indicators: Yes
- International Protection (IP) code: IP30

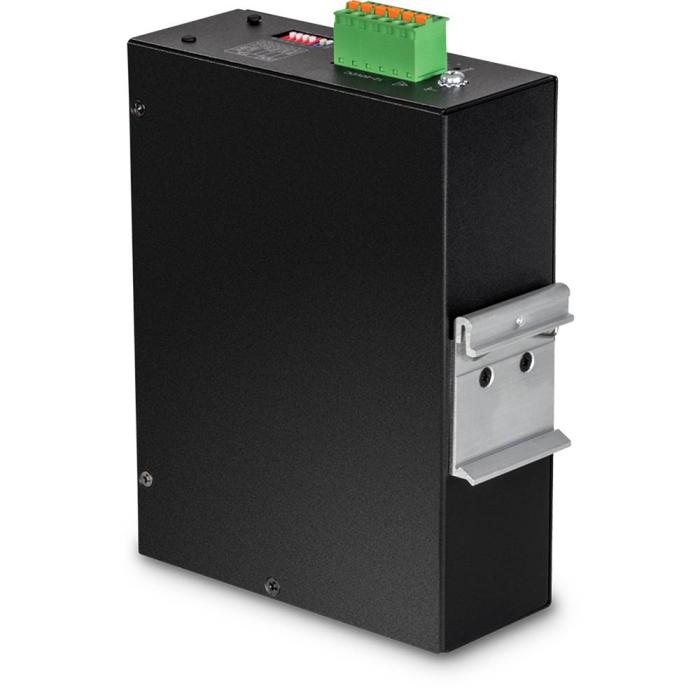

- DIN rail mounting: Yes
Performance
- Firmware upgradeable: Yes
- Mean time between failures (MTBF): 617085 h
Power

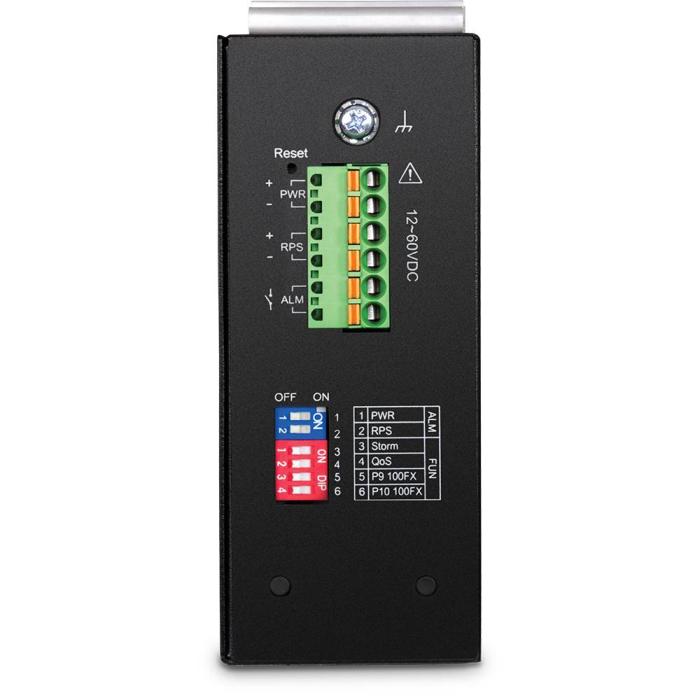

- Redundant power supply (RPS) support: Yes
- Power consumption (max): 13 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 160 mm
- Depth: 120 mm
- Height: 50 mm
- Weight: 884 g
Packaging content
- Quick start guide: Yes
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
