TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots

Few units

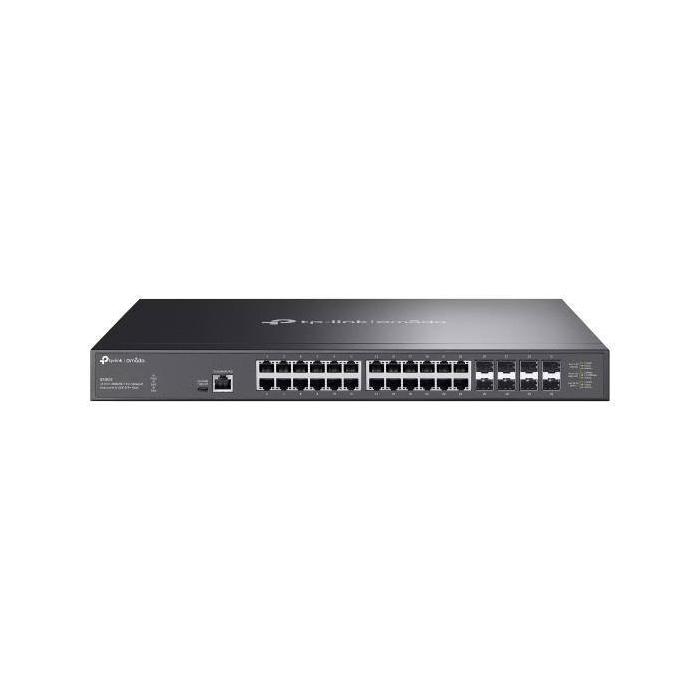

Product 1 image

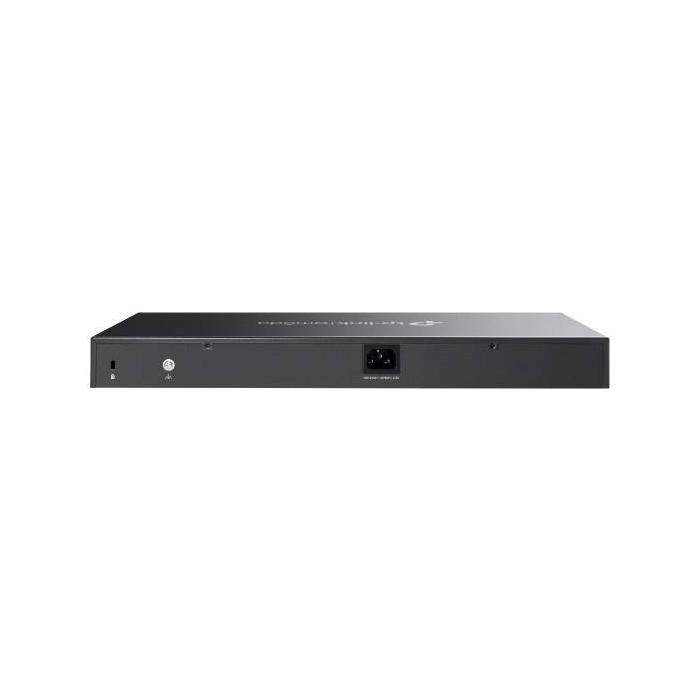

Product 2 image

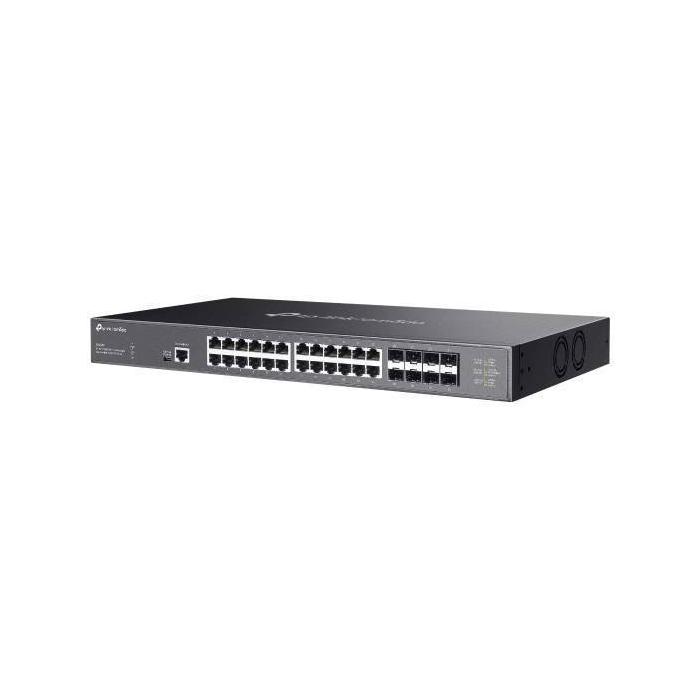

Product 3 image

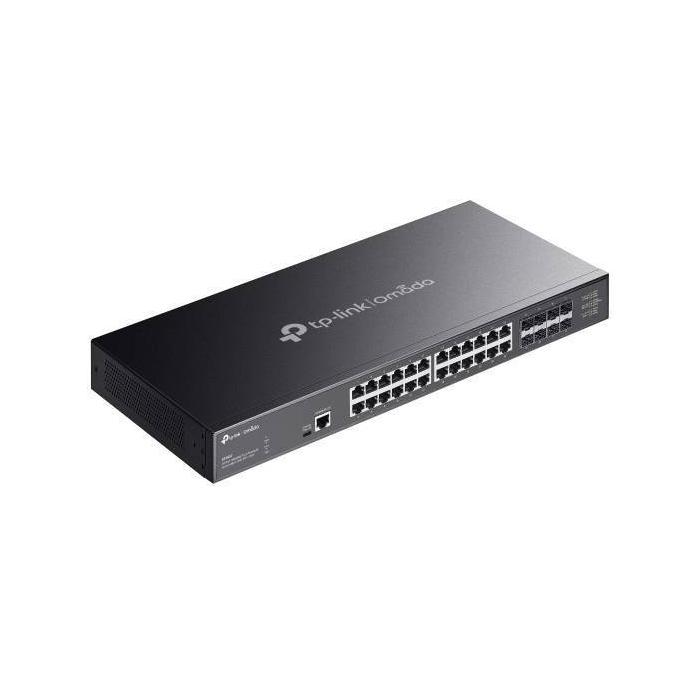

Product 4 image

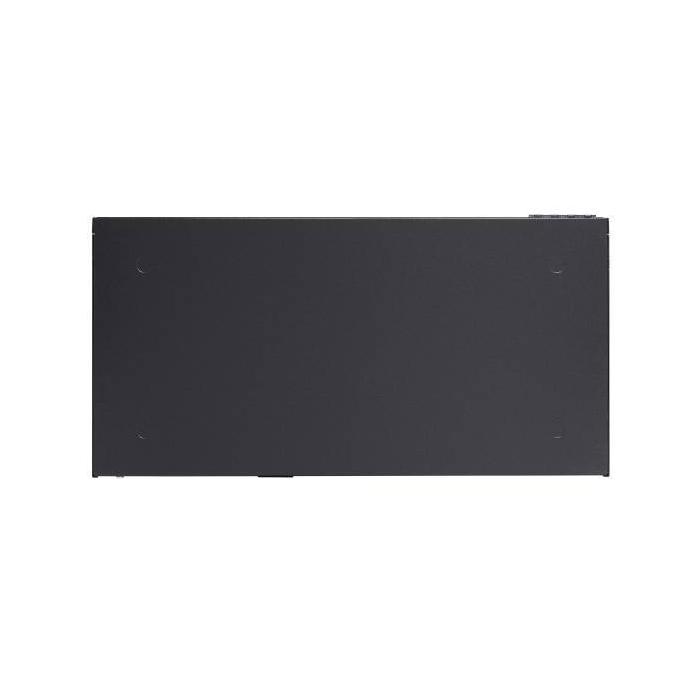

Product 5 image

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots

1,326.00 €

1,095.87 € without VAT

Amount

Brand: TP-LINK

SKU: 119492 PRC: 577392 EAN: 8885020622652 PN: SX3832

Description

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots, Managed, L2/L2+, 10G Ethernet (100/1000/10000), Rack mounting, 1U

Specifications

Management features

Configuring Location Settings (CLI): Yes
System event log: Yes
Switch type: Managed
Switch layer: L2/L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 8
USB Type-C ports quantity: 1
Console port: RJ-45/USB Type-C

Network

Networking standards: IEEE 802.3az
10G support: Yes
Port mirroring: Yes
IP routing: Yes
Flow control support: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Ethernet LAN data rates: 10,100 Mbit/s
VLAN support: Yes
Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN

Data transmission

Switching capacity: 640 Gbit/s
Forwarding rate: 240 Mpps
MAC address table: 32000 entries
Static route: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 24 MB

Security

DHCP features: DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Loop protection: Yes
Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
Authentication type: AAA, RADIUS, TACACS+

Multicast features

Multicast support: Yes

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 106.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 363.23 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 220 mm
Height: 44 mm

Packaging content

Cables included: AC, LAN (RJ-45)
Quick start guide: Yes
Rack mount kit: Yes
