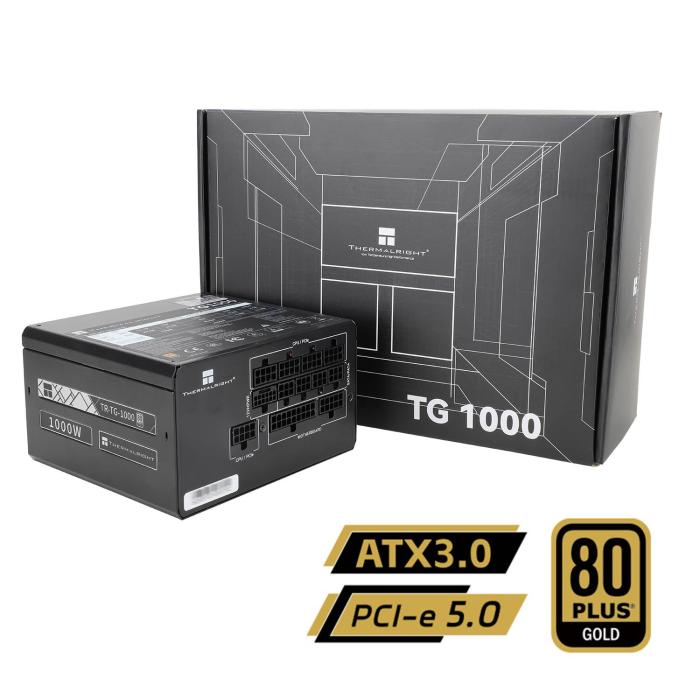

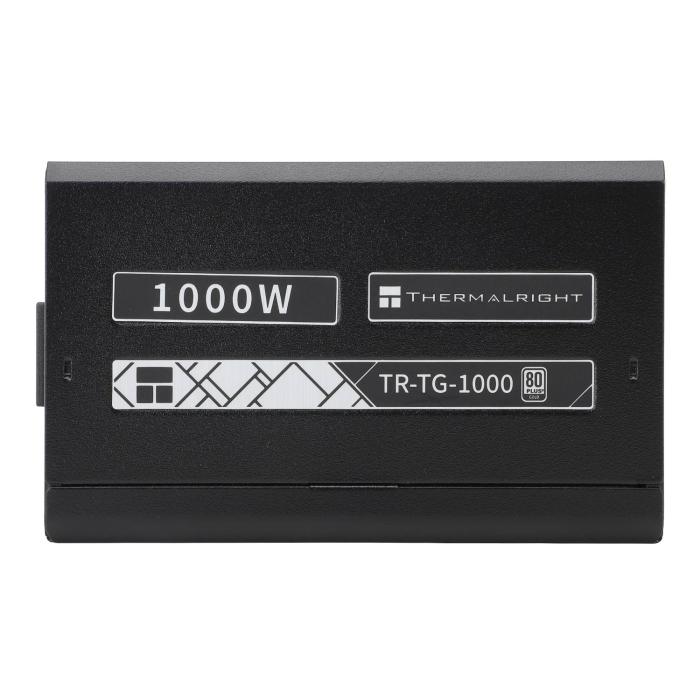

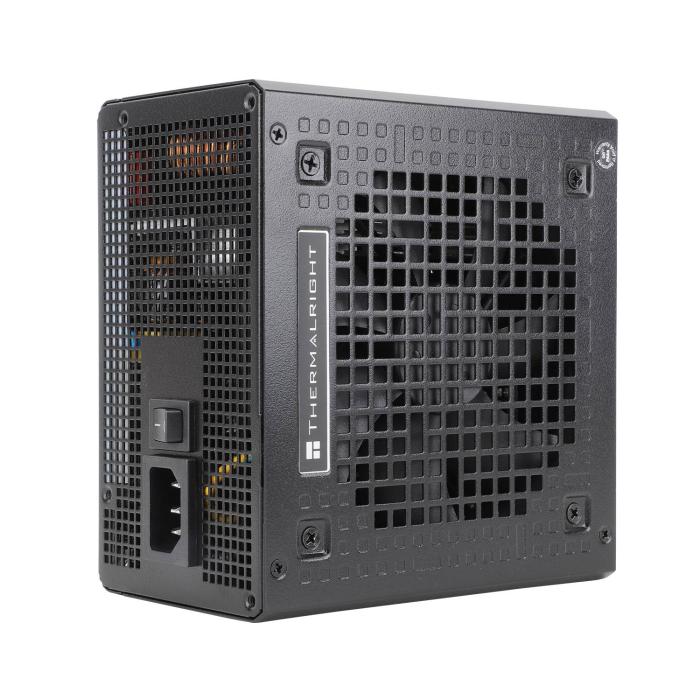

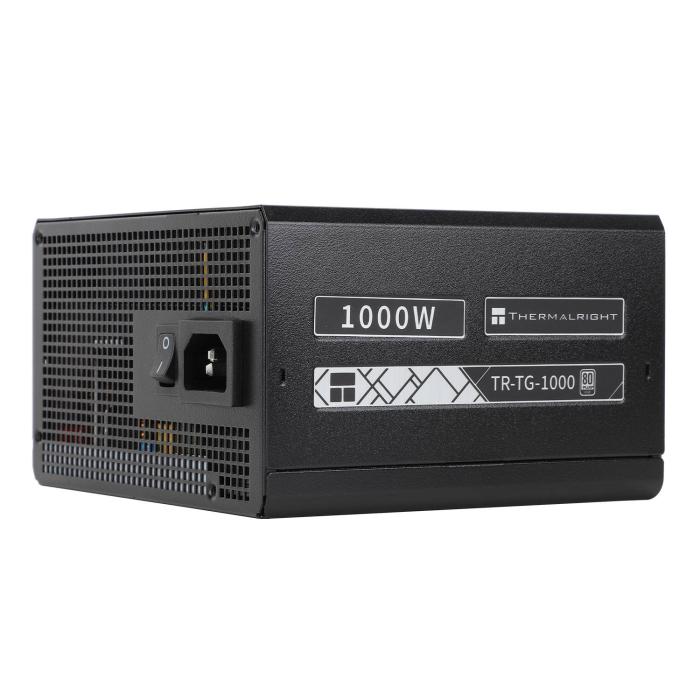

Thermalright TG-1000 power supply unit 1000 W 20+4 pin ATX ATX Black

$125.69

$125.69 without VAT

Amount

Brand: THERMALRIGHT

SKU: 115881 PRC: 596132 EAN: 814256016063 PN: 814256016063

Description

Specifications

Power

Total power: 1000 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 13 - 6.5 A
Combined power (+3.3V): 130 W
Combined power (+12V): 996 W
Combined power (+5V): 130 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 83 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

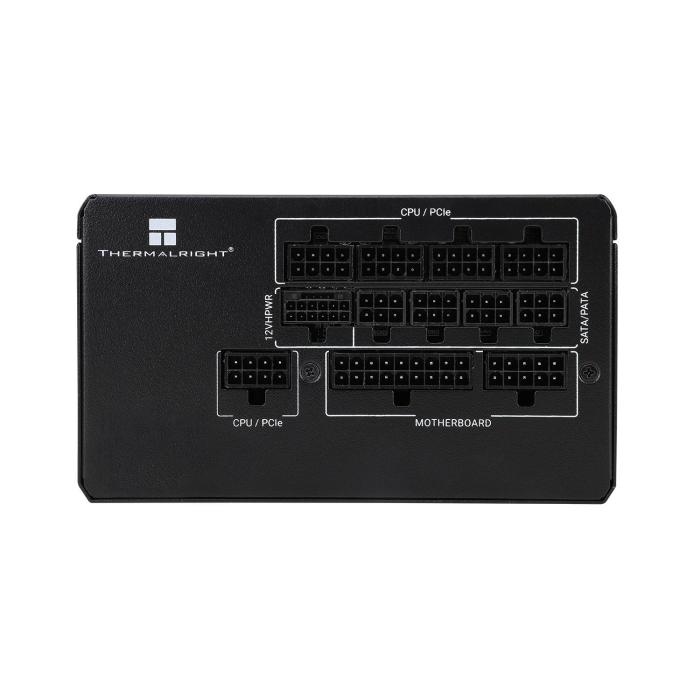

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 2
Number of PATA power connectors: 1
SATA power cable length: 450, 600, 750, 900 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 80 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
PCI Express connector: Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Built-in display: No
On/off switch: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Packaging content

Cables included: CPU, PATA, PCIe, SATA

Weight & dimensions

Width: 140 mm
Depth: 150 mm
Height: 86 mm

Logistics data

Warranty period: 5 year(s)
