Description

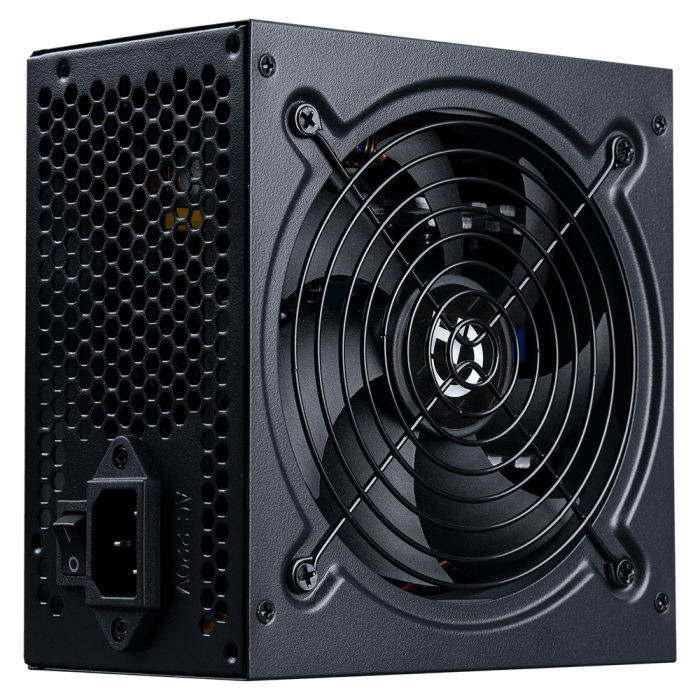

The Hiditec RL550 is a 550 W power supply unit with a 200 to 240 V mains connection and an input frequency of 50/60 Hz. Its power factor correction is active and it achieves an efficiency of 87%. The cabling is non-modular and the motherboard power connector is 20+4 pin ATX. It distributes its power with 540 W on the +12 V rail, 100 W on the +3.3 V rail and 100 W on the +5 V rail, with maximum currents of 45 A, 20 A and 20 A respectively. It features overcurrent, overvoltage, overpower, overheating, short circuit and undervoltage protection. It comes in black, with a weight of 1.75 kg and dimensions of 150 x 140 x 85 mm (width x height x depth).
Specifications
Power
- AC input frequency: 50/60 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 540 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Efficiency: 87%
- Total power: 550 W
- AC input voltage: 200 - 240 V
- Max output current (+3.3V): 20 A
- Max output current (+12V): 45 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power cable length: 50 cm
- SATA power cable length: 130, 300 mm
- Peripheral (Molex) power cable length: 130, 300 mm
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 65 cm
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 4
- Peripheral (Molex) power connectors (4-pin): 3
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 1
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- Illumination: No
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 85 mm
- Height: 140 mm
- Weight: 1.75 kg
