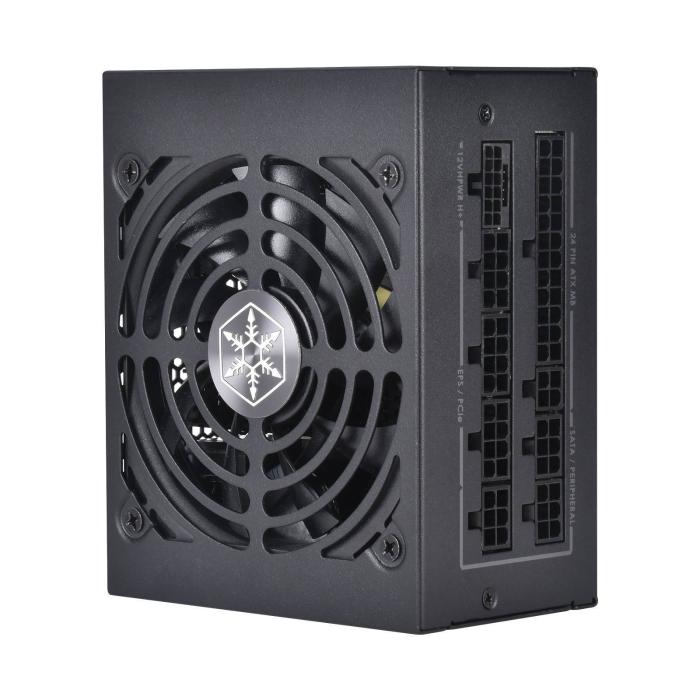

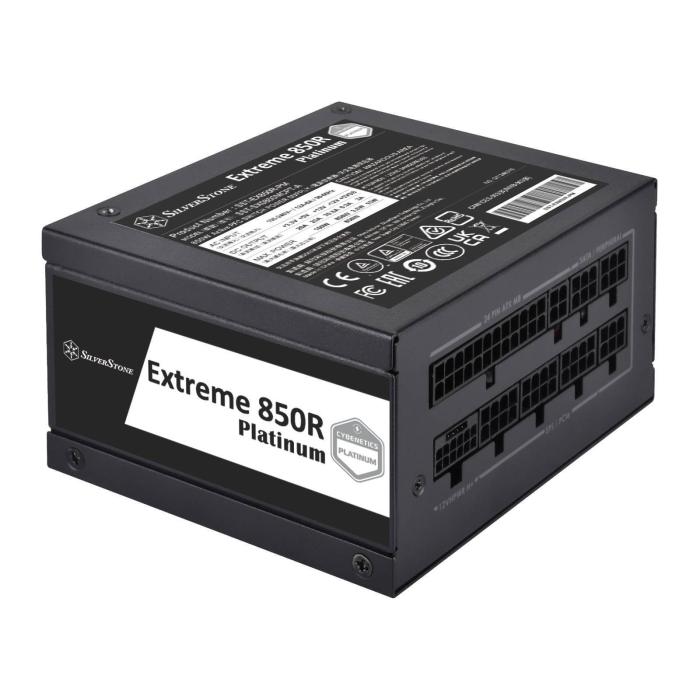

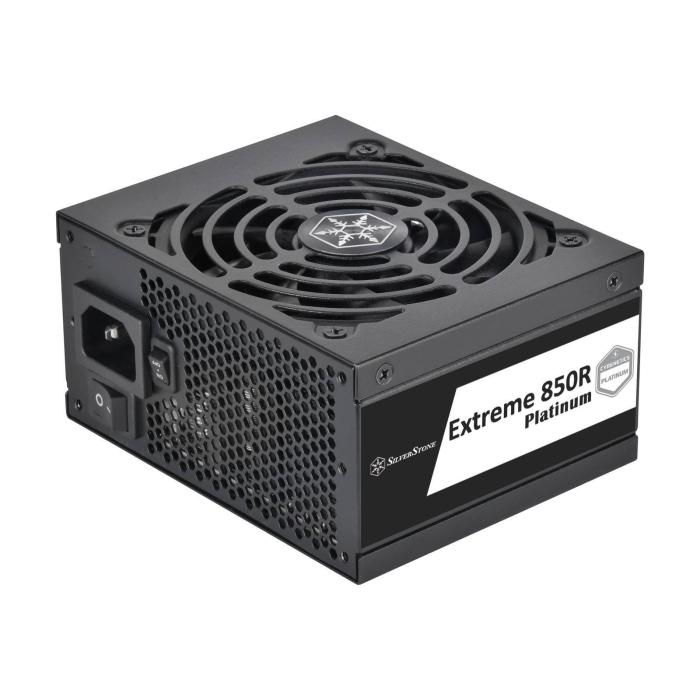

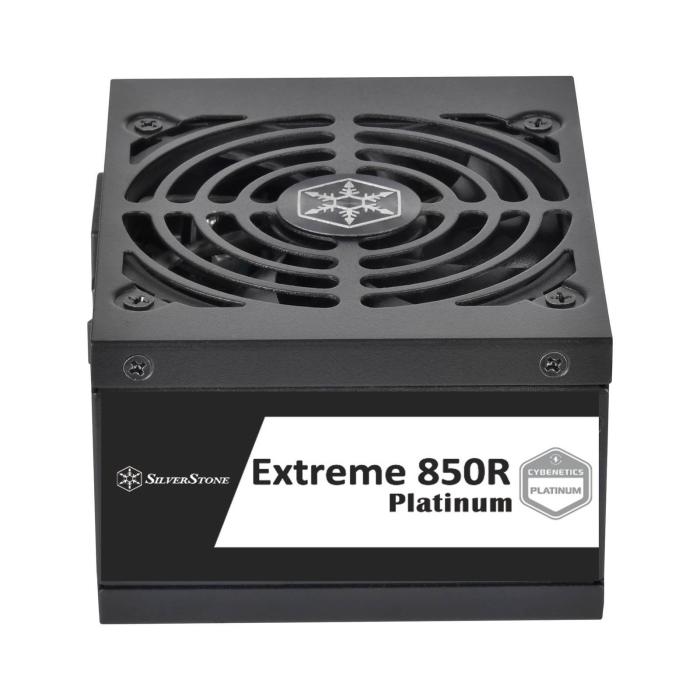

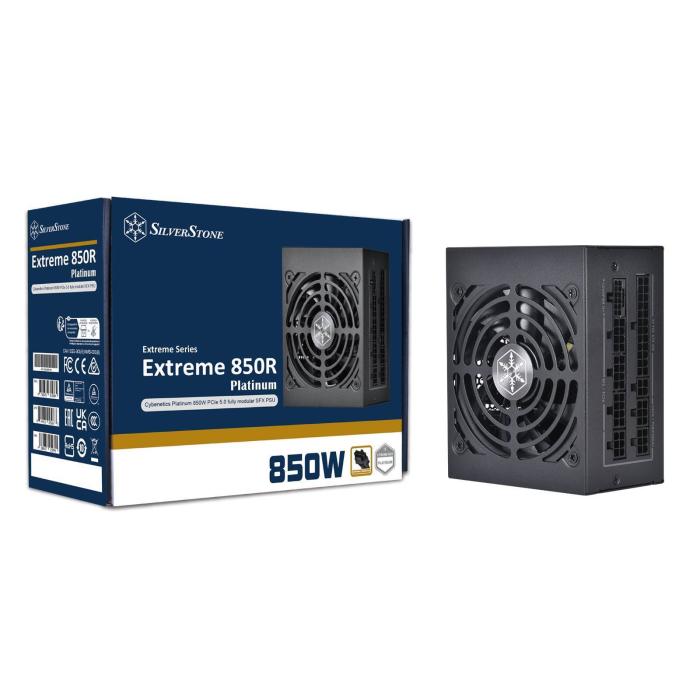

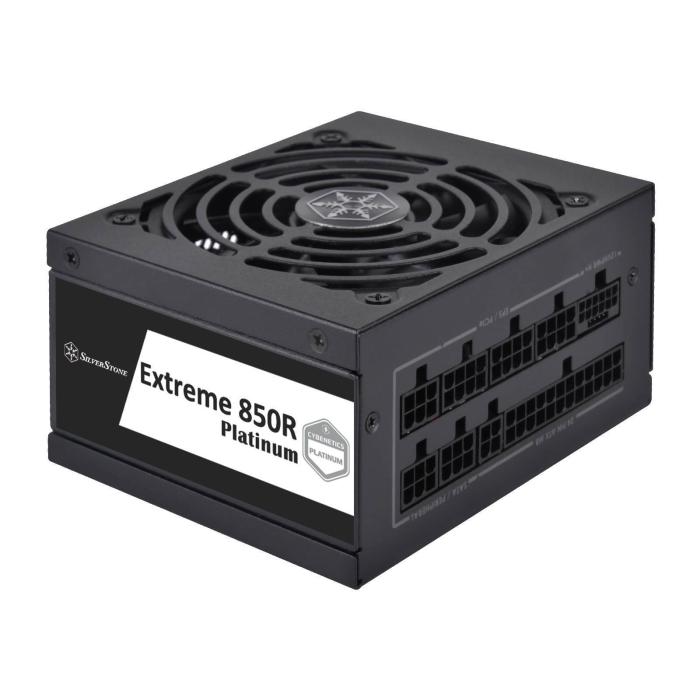

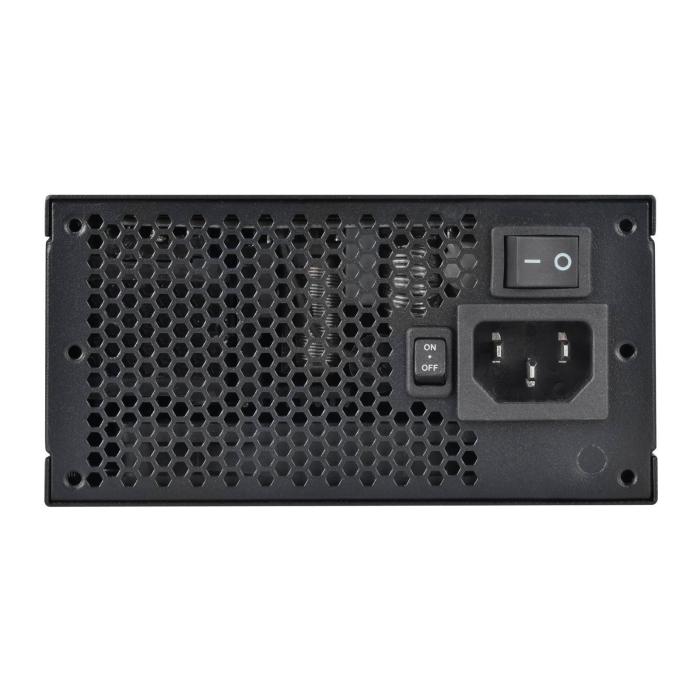

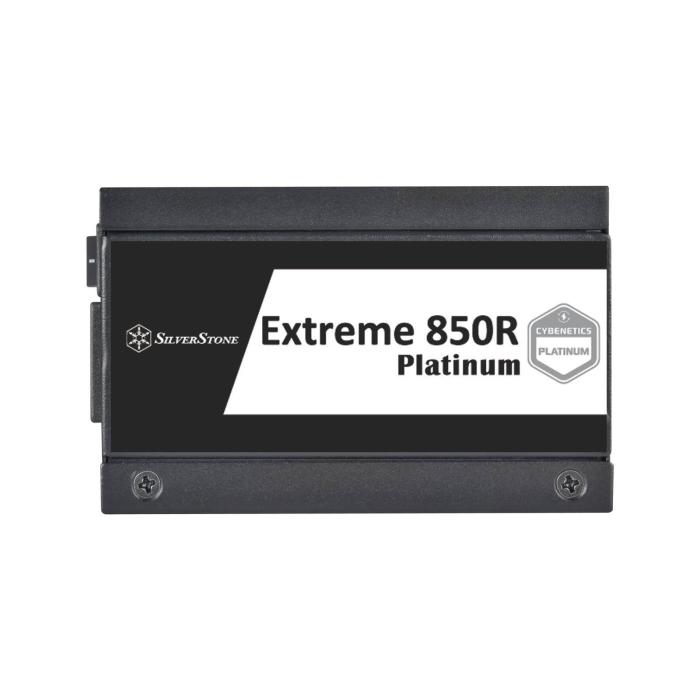

Silverstone SST-EX850R-PM power supply unit 850 W 20-pin ATX SFX Black
More info
Brand: SILVERSTONE
241.08 €
199.24 €
without VAT
Stock available: 2 units.
Get it
tomorrow
/
August 31
SKU:
109195
PRC:
579832
EAN:
4710679815664
PN:
SST-EX850R-PM
Description
Silverstone SST-EX850R-PM power supply unit in SFX format, black colour and with a total power of 850 W, designed for compact builds. It offers 91% efficiency and active power factor correction, with a power factor of 0.9. It includes 16 PCI Express 6+2 pin connectors and protections against overcurrent, overvoltage, overvoltage, overheating, short circuit and undervoltage. The motherboard power cable measures 30 cm, while the peripherals (Molex) reach 200 and 300 mm; its AC input accepts 180 to 264 V with a frequency of 47 to 63 Hz.
Specifications

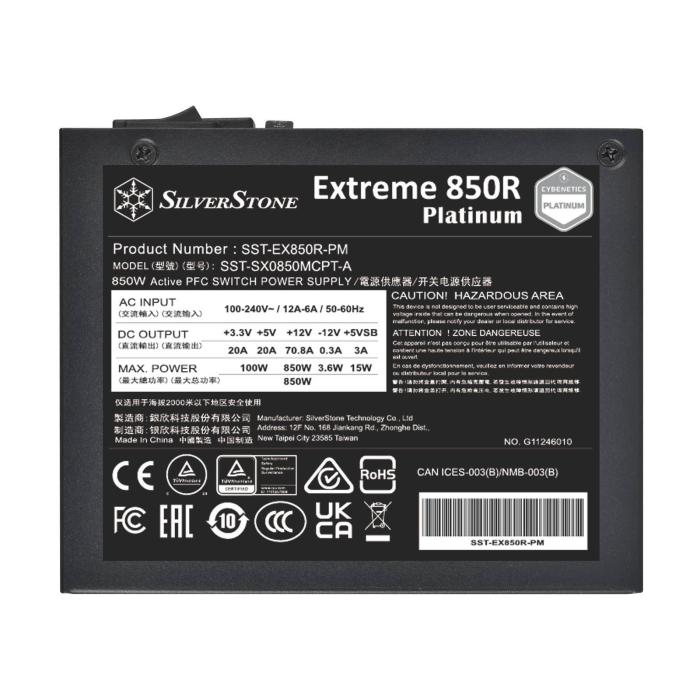

Power
- Total power: 850 W
- AC input voltage: 180 - 264 V
- AC input frequency: 47 - 63 Hz
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 850 W
- Combined power (+5V): 100 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 70.8 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 91%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

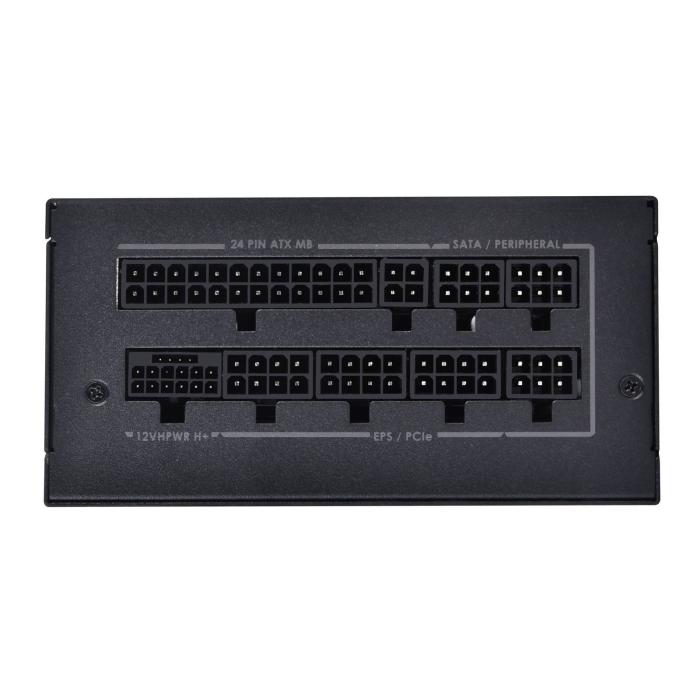

Ports & interfaces

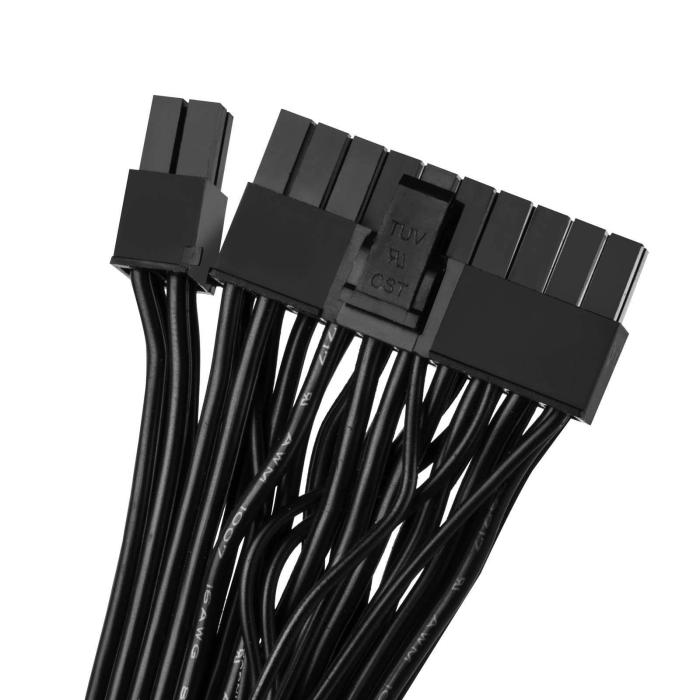

- Motherboard power connector: 20-pin ATX
- Motherboard power cable length: 30 cm

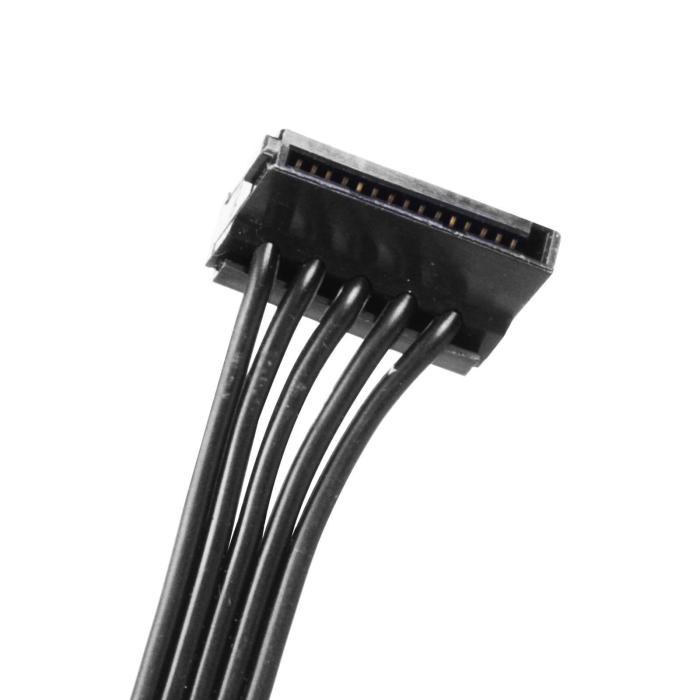

- Number of SATA power connectors: 8
- SATA power cable length: 100, 200, 300 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 200, 300 mm

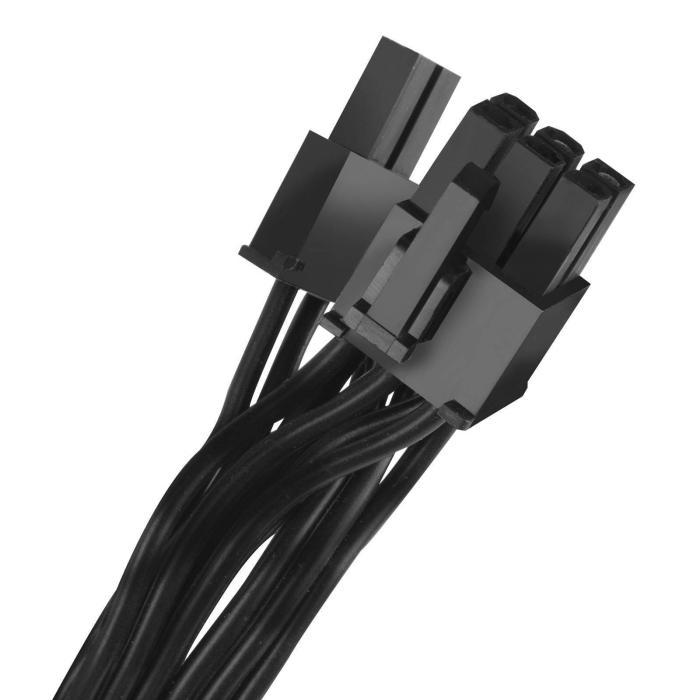

- PCI Express power connectors (6+2 pin): 16

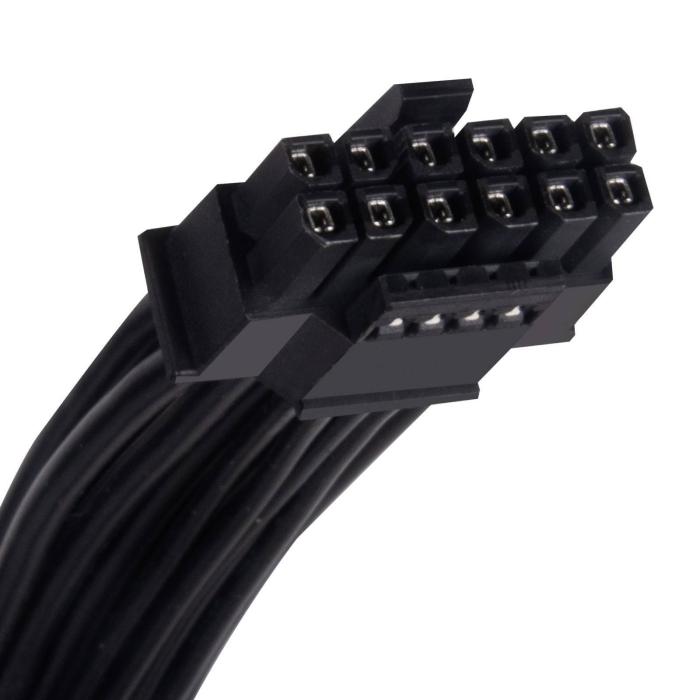

- PCI Express power connectors (12+4 pin): 1

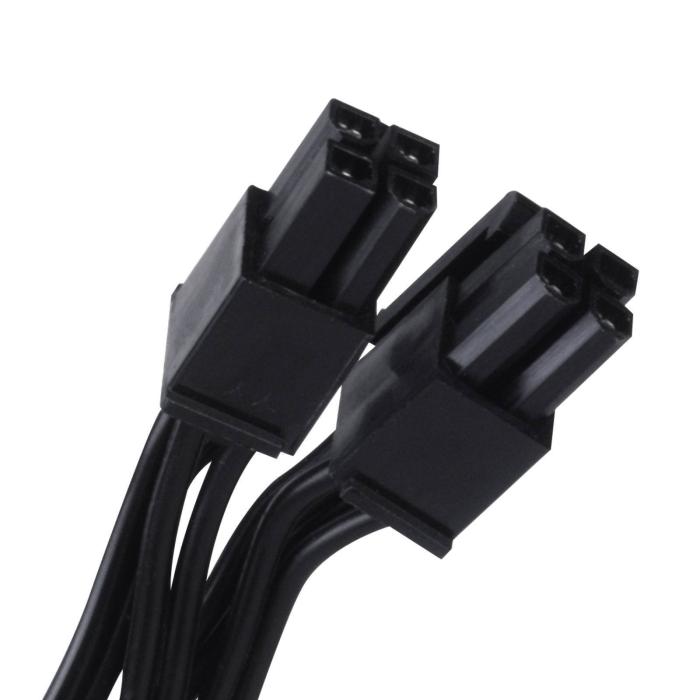

- CPU power connector (4+4 pin): Yes
- CPU power cable length: 40 cm

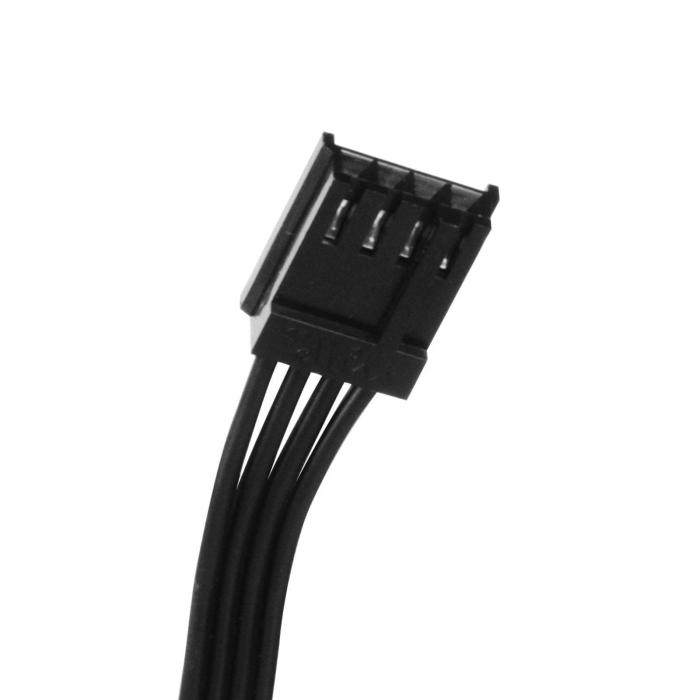

- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 10 cm
- PCI Express connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: No
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
- Silent mode: Yes
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black

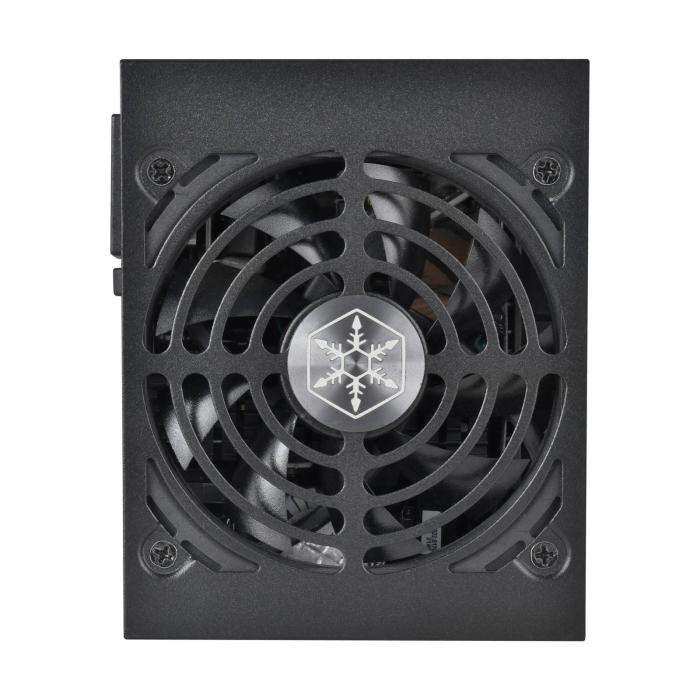

- Cooling type: Active
- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 125 mm
- Depth: 100 mm
- Height: 63.5 mm
- Weight: 1.6 kg
