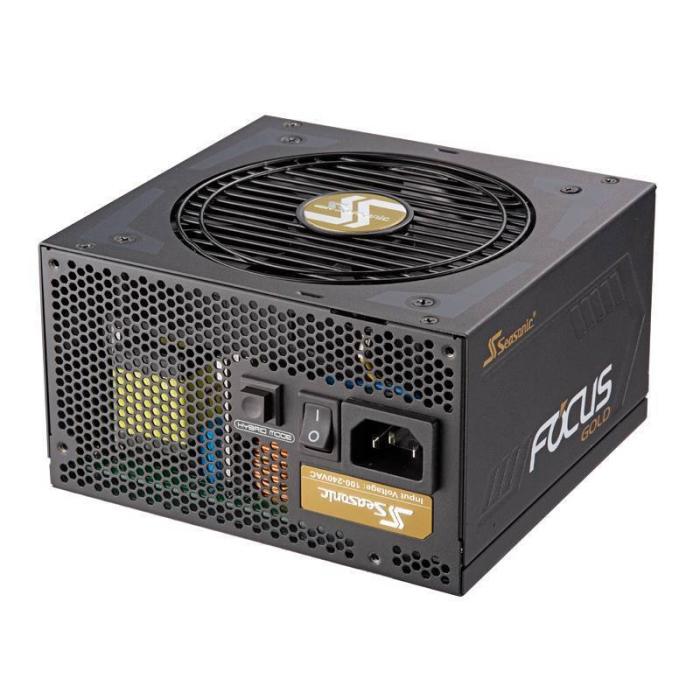

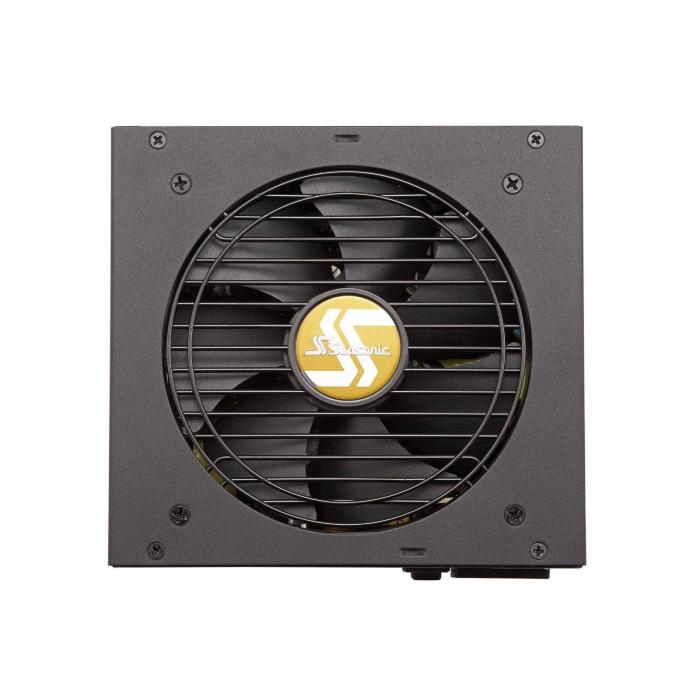

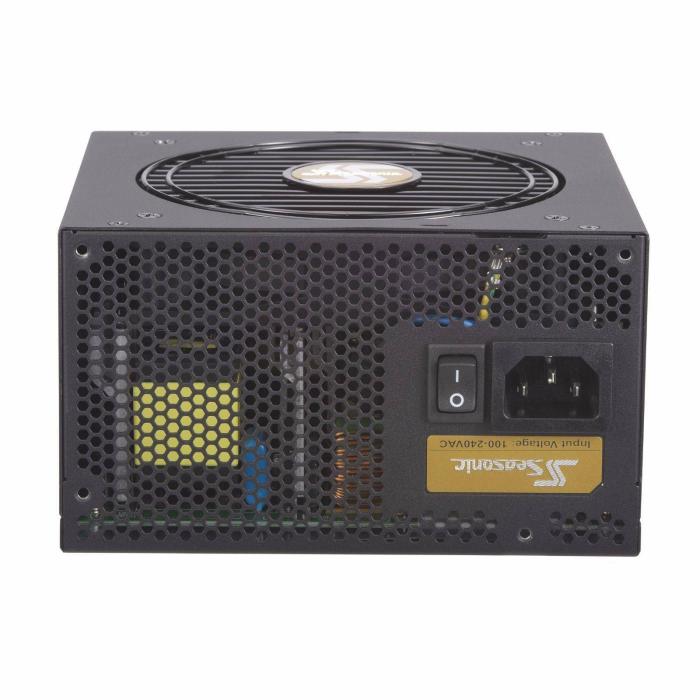

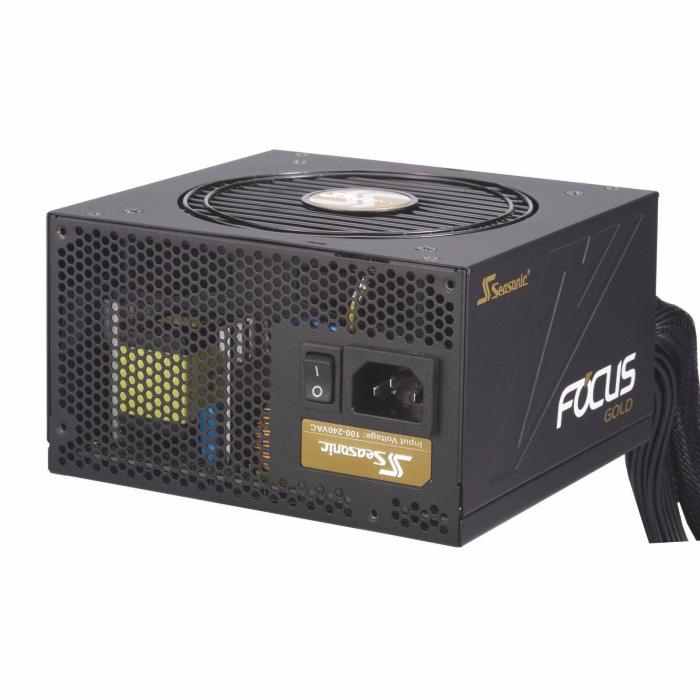

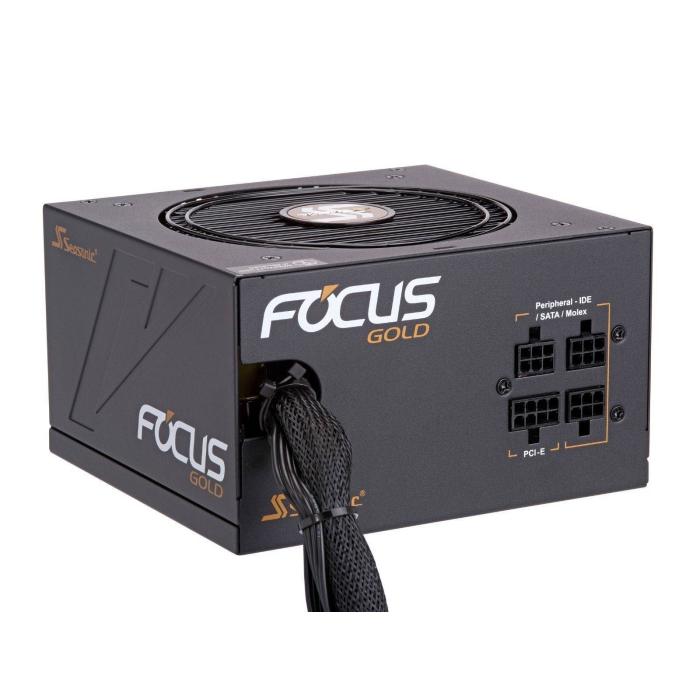

Seasonic Focus Gold 650 power supply unit 650 W 20+4 pin ATX ATX Black

$101.88
$101.88 without VAT

More info

Brand: SEASONIC
SKU: 108867 PRC: 559180 EAN: 4711173878490 PN: ssr-650fm

Description

Specifications

Power

  • Total power: 650 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 4.5 - 9 A
  • Combined power (+12V): 648 W
  • Combined power (+5V): 100 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 54 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Power protection features: Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage

Ports & interfaces

  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 61 cm
  • Number of SATA power connectors: 6
  • Peripheral (Molex) power connectors (4-pin): 3
  • PCI Express power connectors (6+2 pin): 4
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 65 cm
  • ATX power connector (20+4 pin): Yes
  • Floppy drive power connector: 1
  • Floppy disk drive connector: Yes
  • Floppy disk drive cable length: 10.1 cm
  • Cabling type: Semi-Modular

Performance

  • 80 PLUS certification: 80 PLUS Gold
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • Bearing technology: FDB
  • Mean time between failures (MTBF): 100000 h

Design

  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top
  • On/off switch: Yes

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C

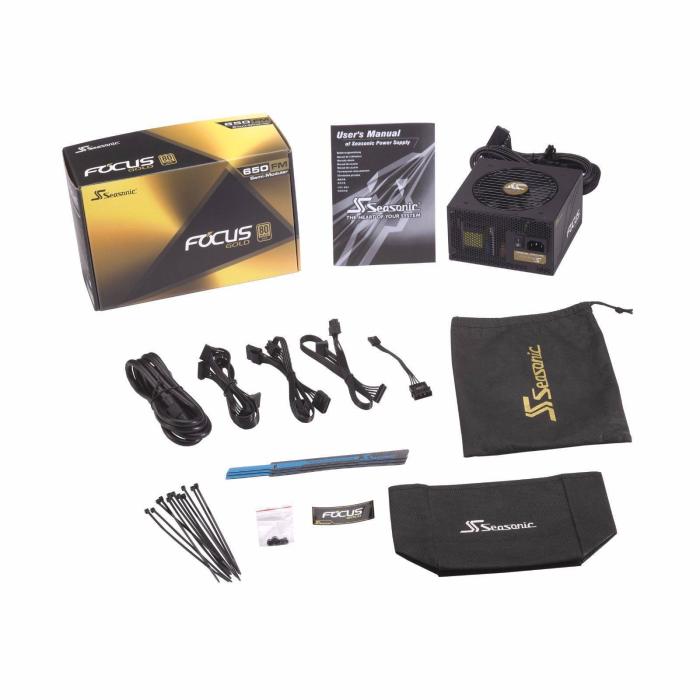

Packaging content

  • Cables included: AC

Certificates

  • Compliance certificates: RoHS
  • Certification: WEEE, ErP Lot 6, REACH

Safety regulation & standards

  • Safety: cTUVus, TUV, CB, CCC, BSMI, EAC, RCM

Weight & dimensions

  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm

Packaging data

  • Cable storage bag included: Yes
  • Number of straps: 3
  • Case badge included: Yes
  • Manual: Yes
  • Package type: Box

Technical details

  • Sustainability certificates: ENERGY STAR

Other features

  • Screws included: Yes
  • Number of screws: 4
  • Cable ties included: Yes
  • Warranty card: Yes
