Description
Hiditec BZ-650 80Plus Bronze, 650 W, 230 V, 50 - 60 Hz, Active, 20 A, 54 A
Specifications
Power
- Total power: 650 W
- AC input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Power Factor Correction (PFC) type: Active
- Max output current (+3.3V): 20 A
- Max output current (+12V): 54 A
- Max output current (+5V): 20 A
- Max output current (-12V): 6 A
- Max output current (+5Vsb): 15 A
- Efficiency: 85%
- Power protection features: Over voltage, Overload, Under power
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 50 cm
- Number of SATA power connectors: 6
- SATA power cable length: 600, 750, 900 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 600, 750, 900 mm
- PCI Express power connectors (6+2 pin): 2
- CPU power cable length: 57 cm
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 100 cm
- CPU power connectors (8-pin): 1
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.4
- Silent mode: Yes
- Mean time between failures (MTBF): 80000 h
Design
- Product colour: Black

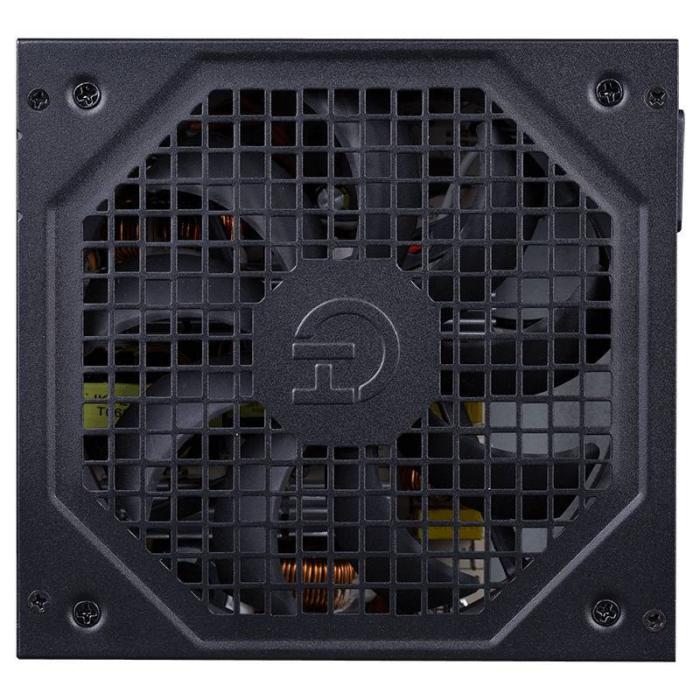

- Cooling type: Active
- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
Certificates
- Compliance certificates: RoHS
- Certification: CE
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 85 mm
- Weight: 1.75 kg
Packaging data
- Package type: Box
