Description

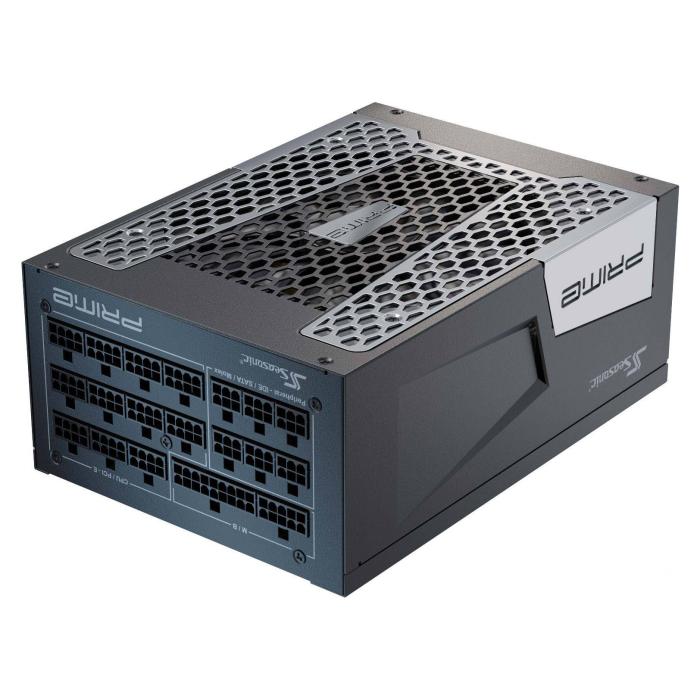

The Seasonic Prime TX-1600 is an ATX power supply unit in black with a total output of 1600 W, designed for demanding configurations that require a stable and robust supply. Among its key specifications, it offers a main motherboard connector of 20+4 pin, with a 61 cm cable length, and features ten SATA connectors for storage devices. This unit supports an input voltage of 100-240 V with a maximum output current of 133.3 A on the +12 V rail, and includes protection against overcurrent, overvoltage and short circuit. It also incorporates an Express PCI connector for graphics cards, facilitating hassle-free integration into high-performance systems.
Specifications
Power
- Total power: 1600 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 15 - 10 A
- Combined power (+3.3V): 125 W
- Combined power (+12V): 1600 W
- Combined power (+5V): 125 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 133.3 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over voltage, Short circuit

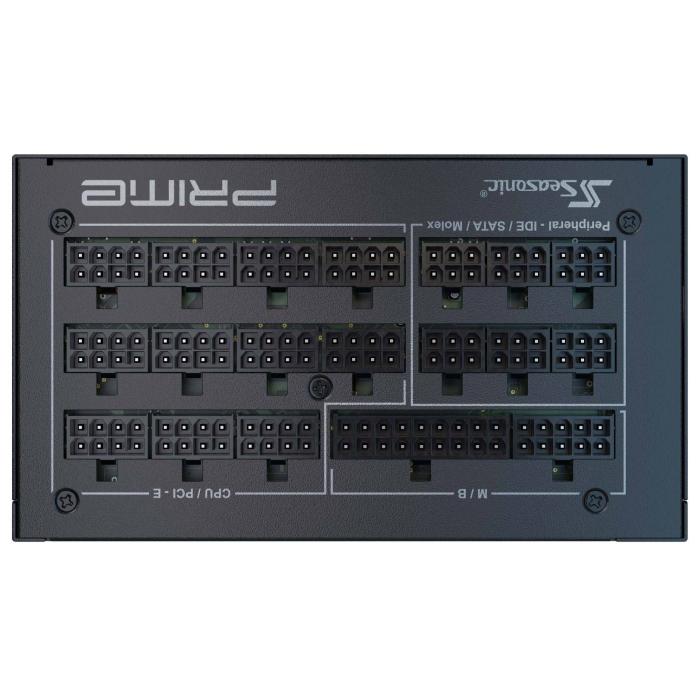

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 10
- Peripheral (Molex) power connectors (4-pin): 3
- PCI Express connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Titanium
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Bearing technology: FDB
- Mean time between failures (MTBF): 150000 h
- Compatible products: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Design
- Product colour: Black
- Cooling type: Active

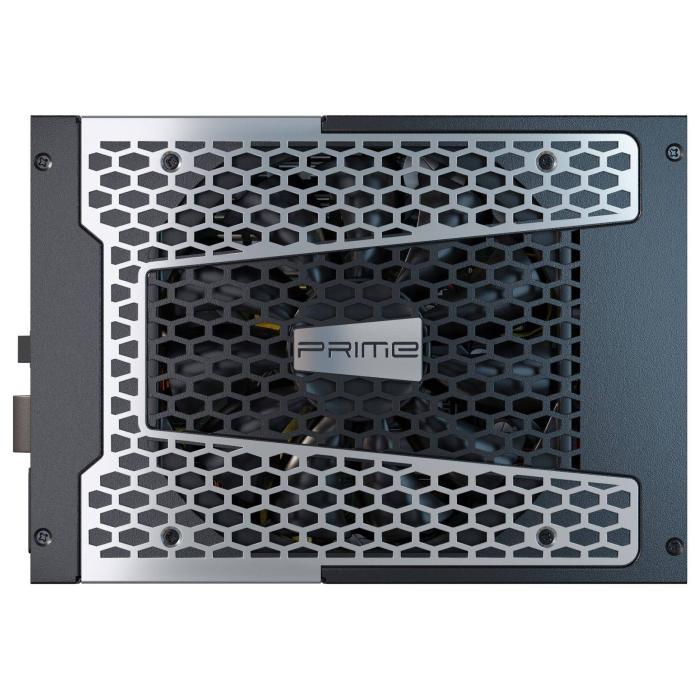

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C

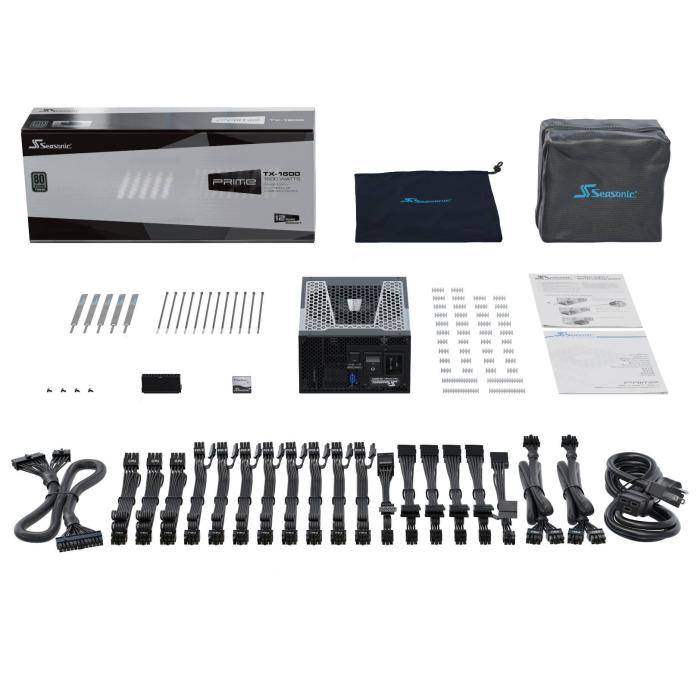

Packaging content
- Cables included: AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
- Cable tie(s) included: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 210 mm
- Height: 86 mm
Packaging data

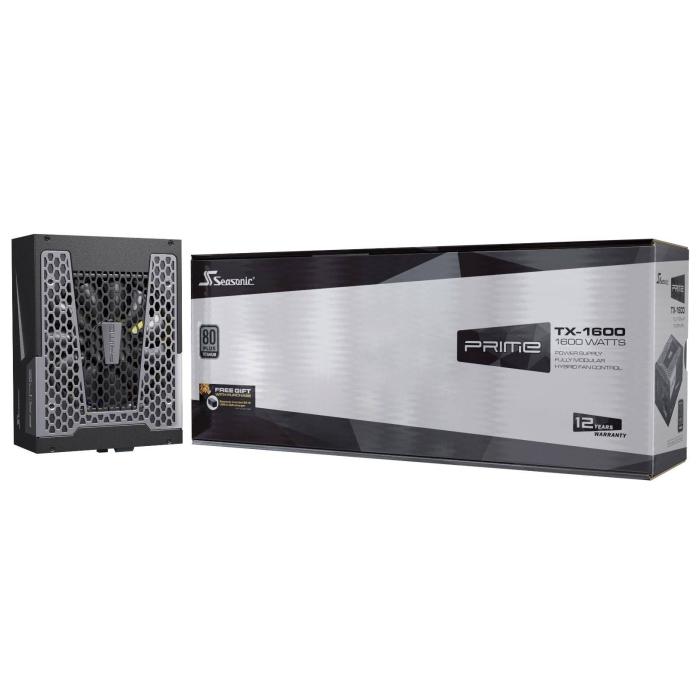

- Package type: Box
