Description

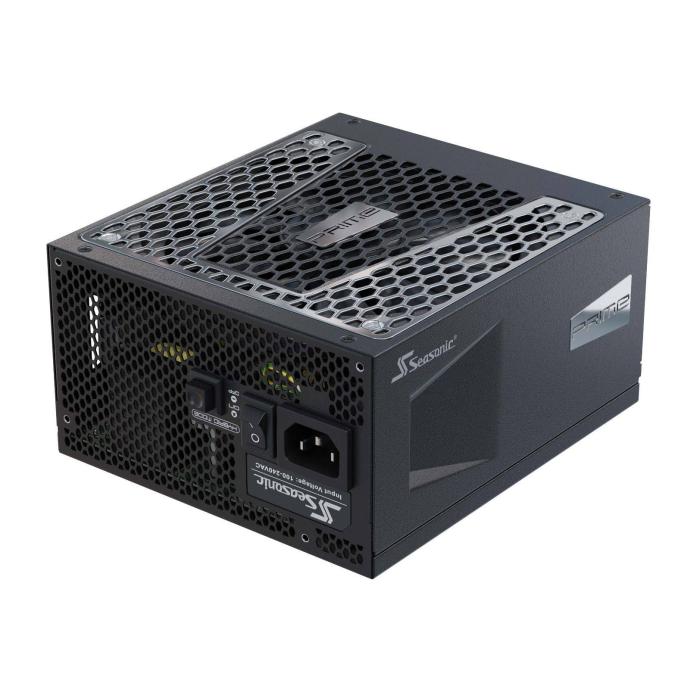

Seasonic Prime TX-1300 power supply, in its fully modular version and with a main 20+4 pin ATX connector, delivers 1300 W of total power and provides up to 1296 W on the +12 V rail with a maximum current of 108 A, ideal for demanding configurations. Its power input accepts between 100 and 240 V with a frequency of 50-60 Hz, and includes protections against overcurrent, overvoltage and short circuit. It includes a 4+4 pin CPU connector and auxiliary power distribution such as 125 W combined on +5 V and +3.3 V, plus 15 W on +5 VSB. This model in black finish is designed to sustain high loads stably, maintaining clean cabling thanks to its modular design.
Specifications
Power
- Total power: 1300 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 15 - 7.5 A
- Combined power (+3.3V): 125 W
- Combined power (+12V): 1296 W
- Combined power (+5V): 125 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 108 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over voltage, Short circuit
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 14
- Peripheral (Molex) power connectors (4-pin): 5
- CPU power connector (4+4 pin): Yes

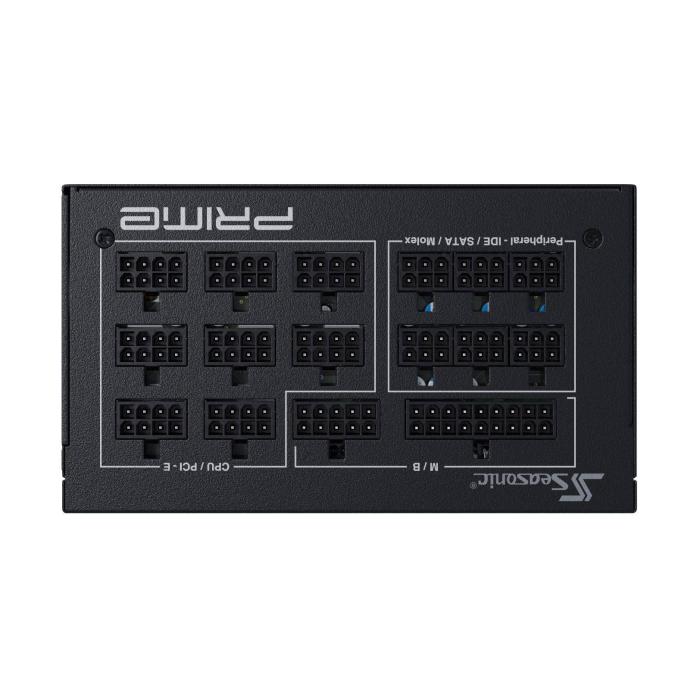

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Bearing technology: FDB
- Mean time between failures (MTBF): 150000 h
Design
- Product colour: Black
- Cooling type: Active

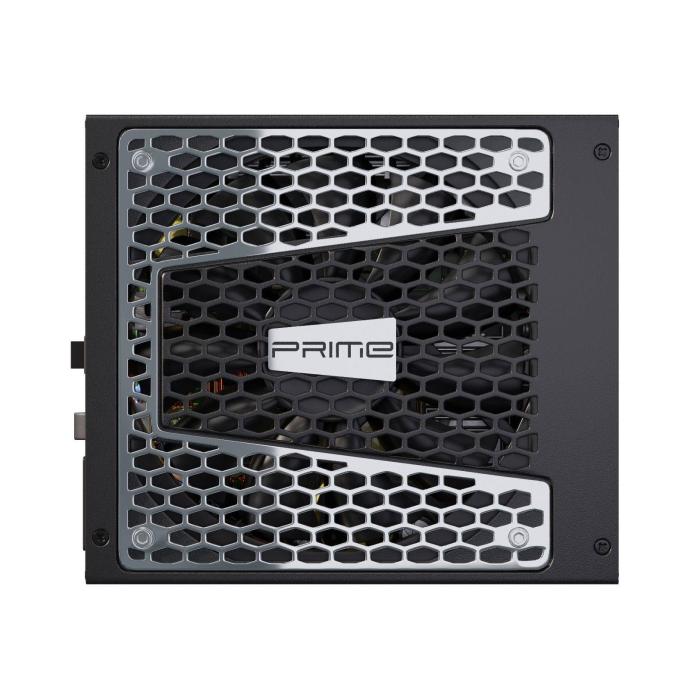

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Packaging content

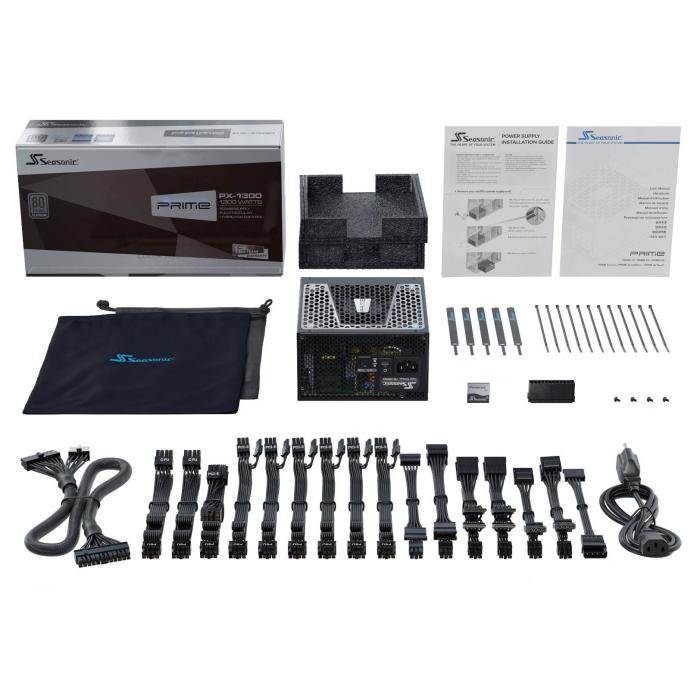

- Cables included: AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
- Cable tie(s) included: Yes
Certificates
- Compliance certificates: RoHS
- Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Weight & dimensions
- Width: 150 mm
- Depth: 210 mm
- Height: 86 mm
Packaging data
- Package type: Box
