Description
NOX NXS650 power supply unit, 650 W, black and red, with a 20+4 pin main connector and ATX design for conventional tower builds. Delivers a total power of 650 W with 87% efficiency, and offers a maximum current of 50 A on the +12 V rail, supplying up to 600 W for the most demanding components. Features active power factor correction (active PFC), along with two 6+2 pin PCI Express connectors for graphics cards. Its combined outputs of 120 W on +5 V and +3.3 V, plus 12.5 W on +5 VSB, cover the needs of the motherboard and peripherals, with stable system protection.
Specifications
Power
- Total power: 650 W
- AC input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Input current: 6.3 A
- Maximum input current (@110V): +12V,+3.3V,+5V,-12V,-5Vsb
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 600 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 50 A
- Max output current (+5V): 17 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 87%
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 4
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- PCI Express connector: Yes
- Cabling type: Non-Modular
Performance
- Purpose: PC
- EPS version: 2.91
Design
- Product colour: Black, Red
- Cooling type: Active

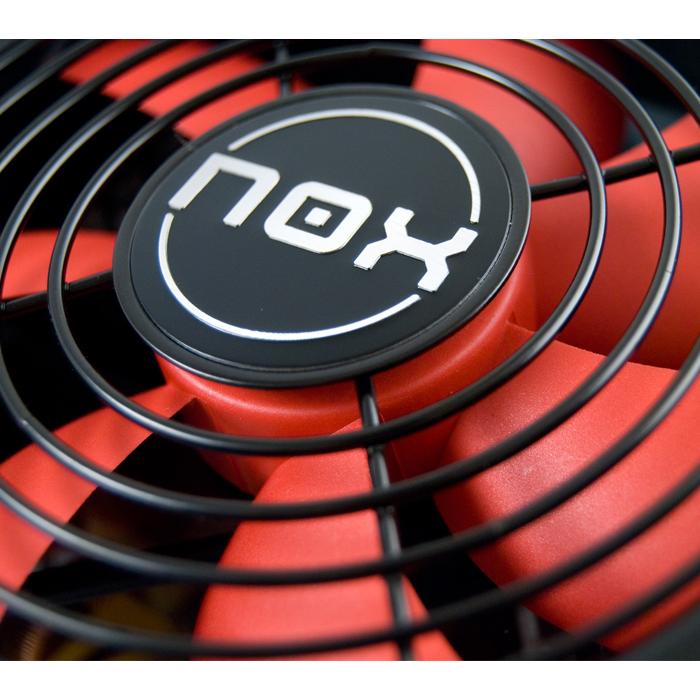

- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
- Weight: 1.6 kg
