Description

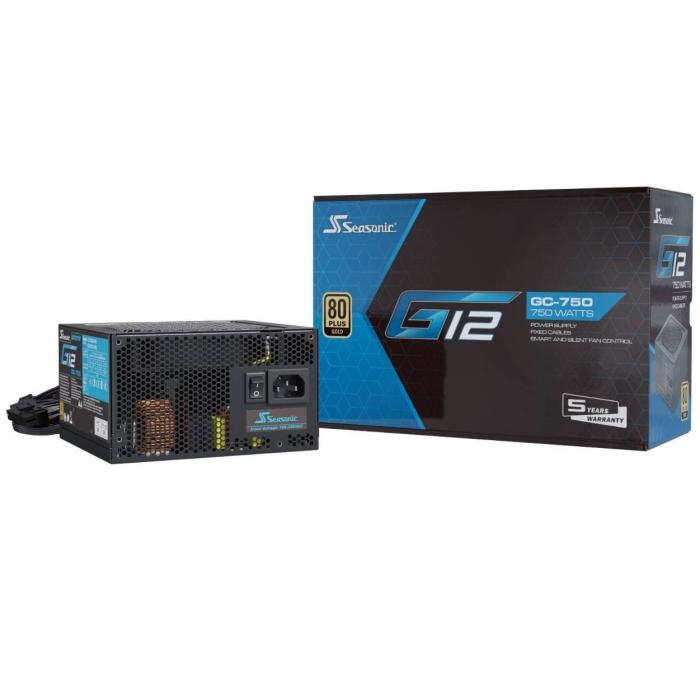

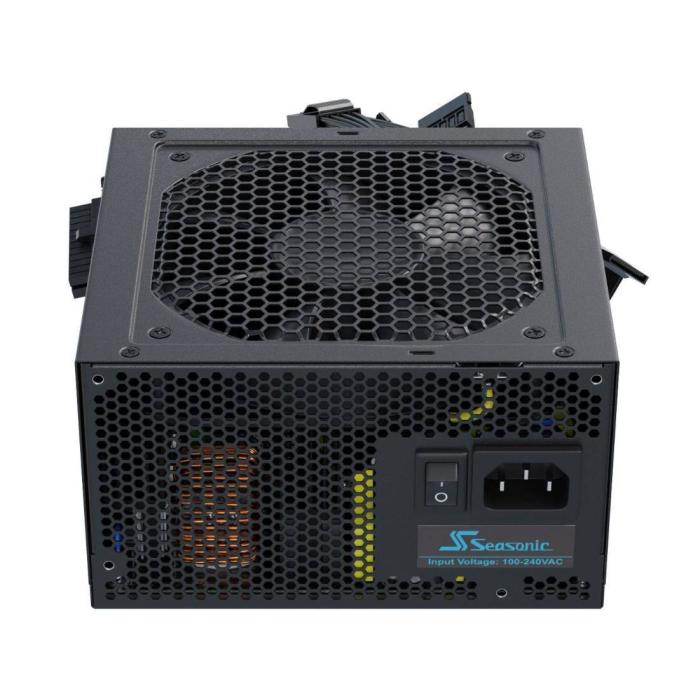

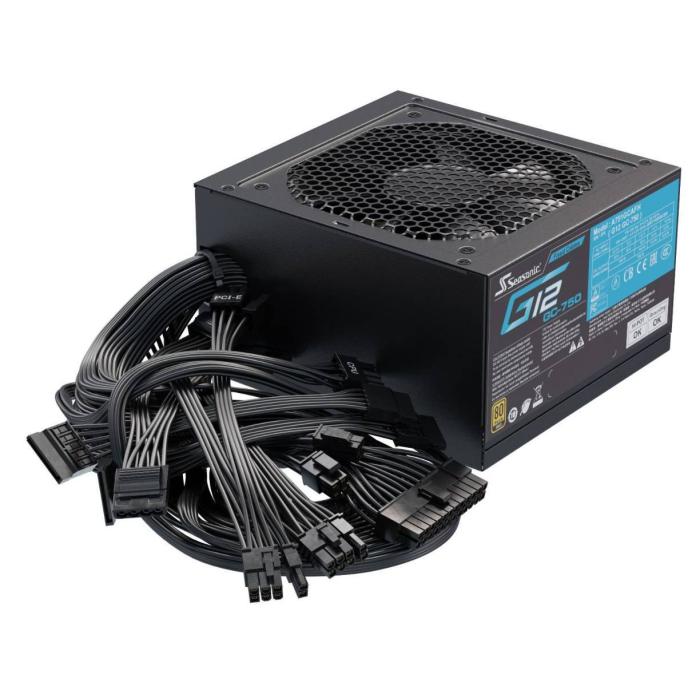

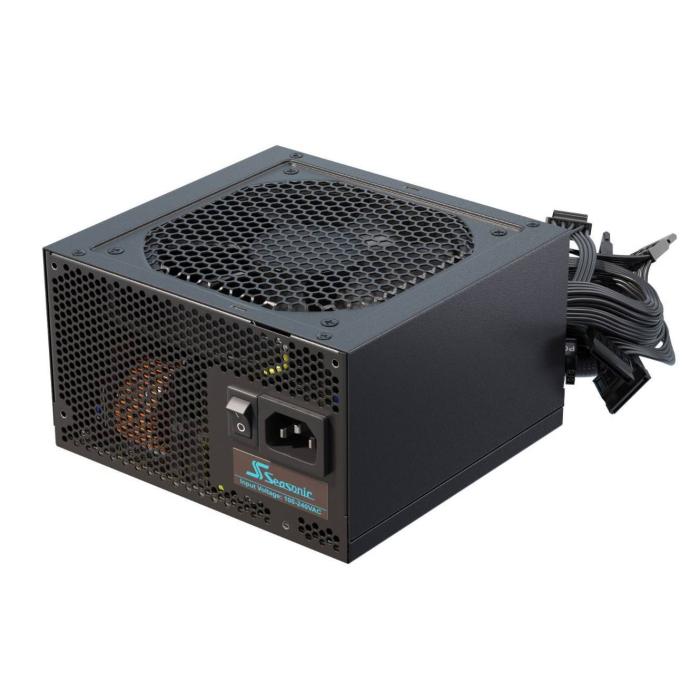

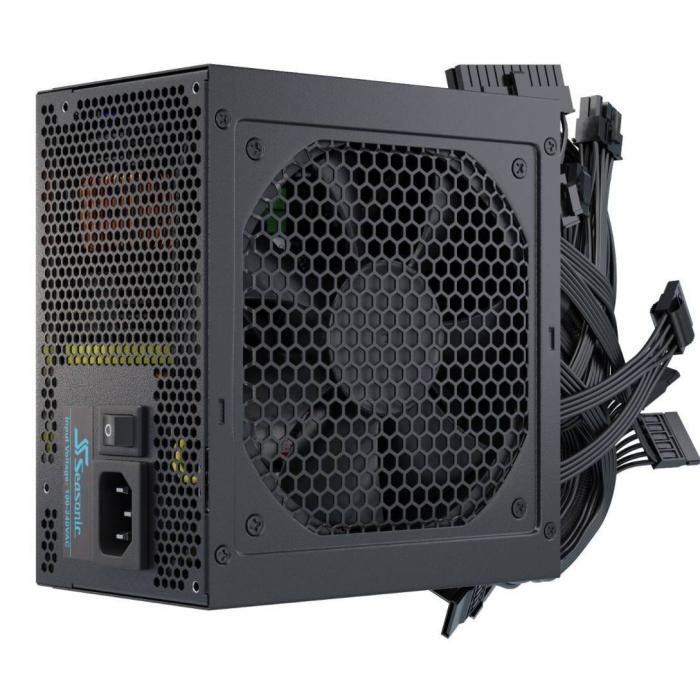

Seasonic G12 GC 750 W power supply in ATX form factor and black colour, designed with non-modular cabling and a 20+4 pin main connector for the motherboard. It offers a combined power output of 744 W on the +12 V rail, with a maximum output current of 62 A on that same rail, alongside secondary +5 V and +3.3 V lines with 15 A each. It includes at least one PCI Express connector with a 70 cm cable and features active power factor correction (active PFC), accepting an input voltage of 100 to 240 V. Its current ratings for the -12 V (0.3 A) and +5 VSB (2.5 A) lines complete the specifications of this model aimed at desktop systems.
Specifications
Power
- Total power: 750 W
- AC input voltage: 100 - 240 V
- Input current: 10 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 744 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 15 A
- Max output current (+12V): 62 A
- Max output current (+5V): 15 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 6
- SATA power cable length: 690 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 690 mm
- PCI Express power connectors (6-pin): 2
- PCI Express power connectors (8-pin): 2
- PCI Express power cable length: 70 cm
- PCI Express connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Supported motherboard form factors: ATX
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Silent mode: Yes
- Bearing technology: Sleeve
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Fan diameter: 12 cm
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Certificates
- Certification: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Safety regulation & standards
- Safety: cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Logistics data
- Harmonized System (HS) code: 84733020
