Description

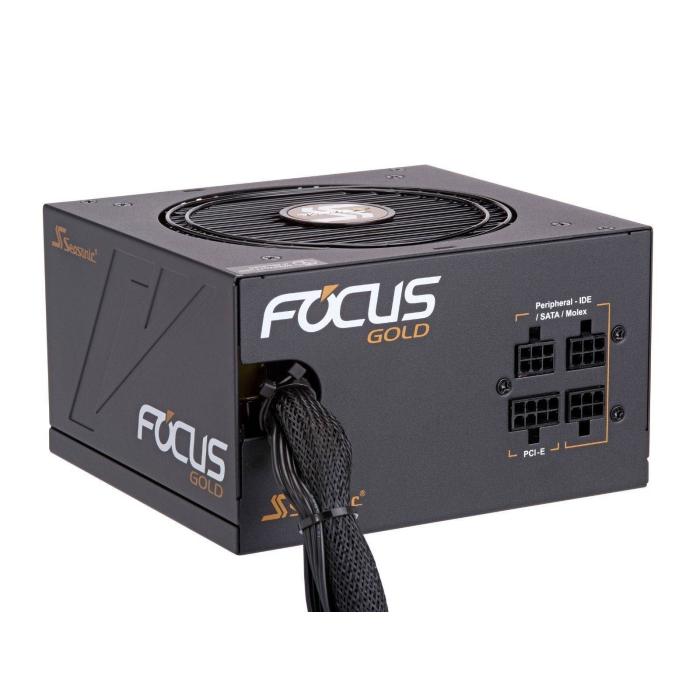

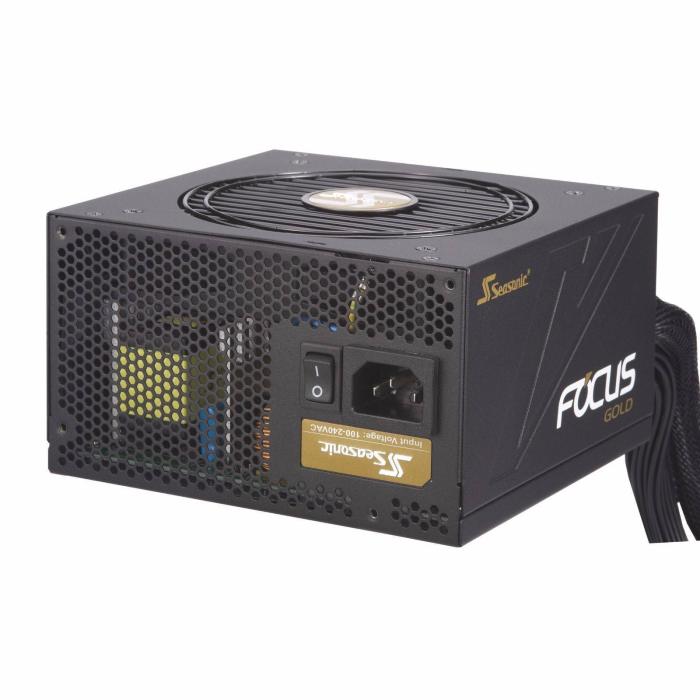

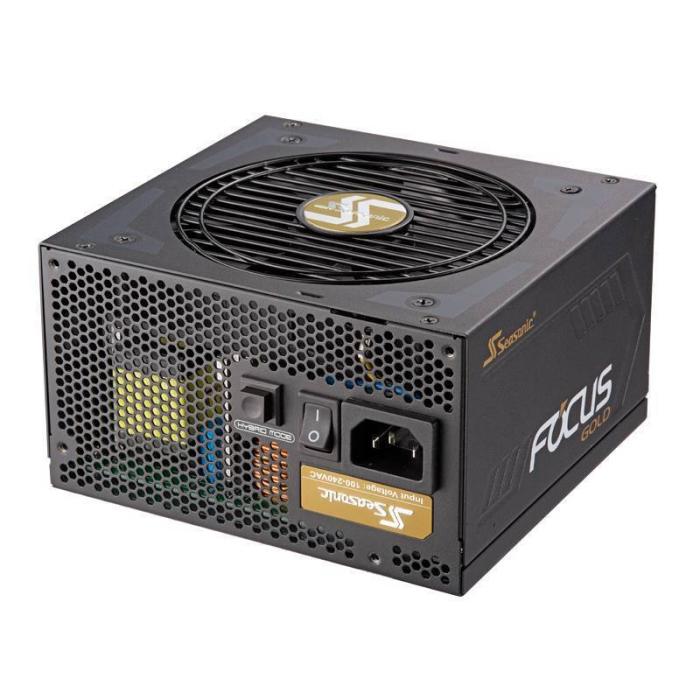

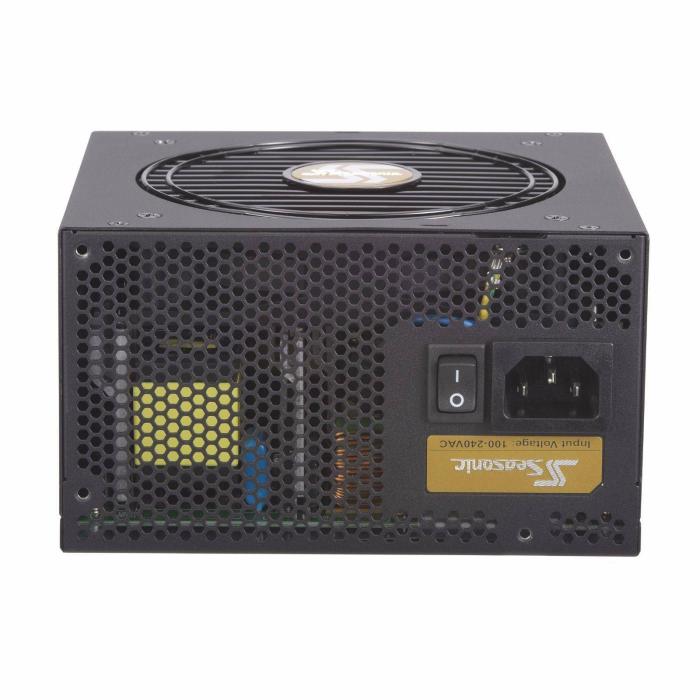

Seasonic Focus Gold 750 W power supply in ATX format with a black finish, featuring a main 20+4 pin connector for the motherboard. It delivers up to 744 W combined on the +12 V rail with a maximum current of 62 A, and handles input voltages between 100 and 240 V AC with a frequency of 50-60 Hz. Includes protections against overvoltage, overcurrent, overload, overtemperature, short circuit, and undervoltage to safeguard components. Its CPU and motherboard power cables measure 65 cm and 61 cm, respectively, facilitating installation in standard towers.
Specifications
Power
- Total power: 750 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 5 - 10 A
- Combined power (+3.3V): 100 W
- Combined power (+12V): 744 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 62 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 3
- PCI Express power connectors (6+2 pin): 4
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 65 cm
- ATX power connector (20+4 pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 10.1 cm
- Cabling type: Semi-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

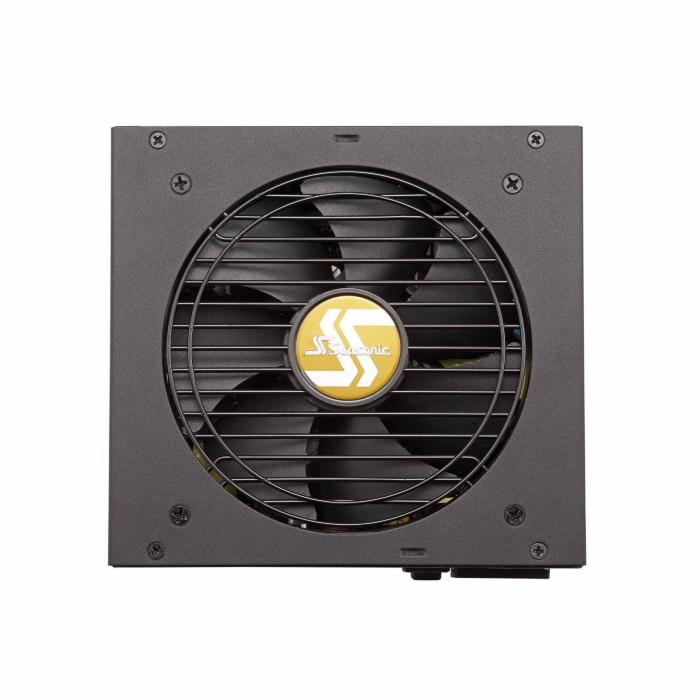

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C

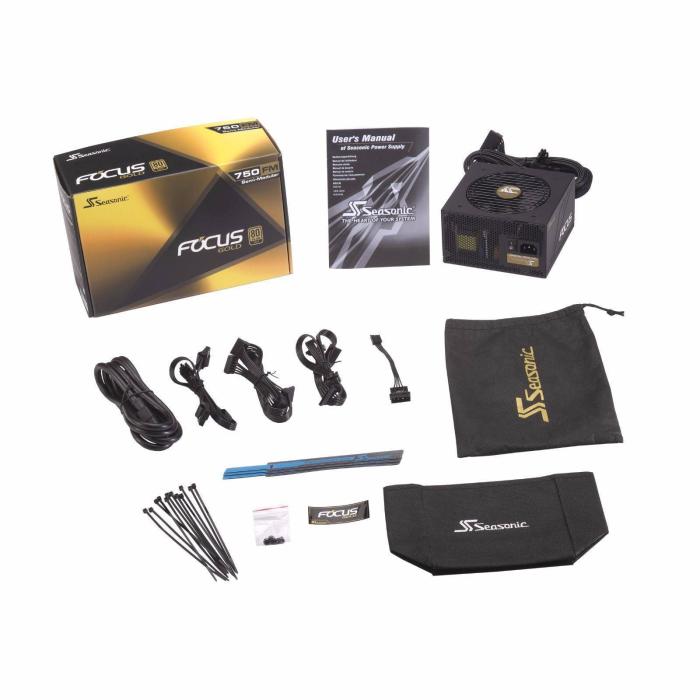

Packaging content
- Cables included: AC
Certificates
- Compliance certificates: RoHS
- Certification: WEEE, ErP Lot 6, REACH
Safety regulation & standards
- Safety: cTUVus, TUV, CB, CCC, BSMI, EAC, RCM
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Packaging data
- Cable storage bag included: Yes
- Number of straps: 3
- Case badge included: Yes
- Manual: Yes
- Package type: Box
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- Screws included: Yes
- Number of screws: 4
- Cable ties included: Yes
- Warranty card: Yes
