Description

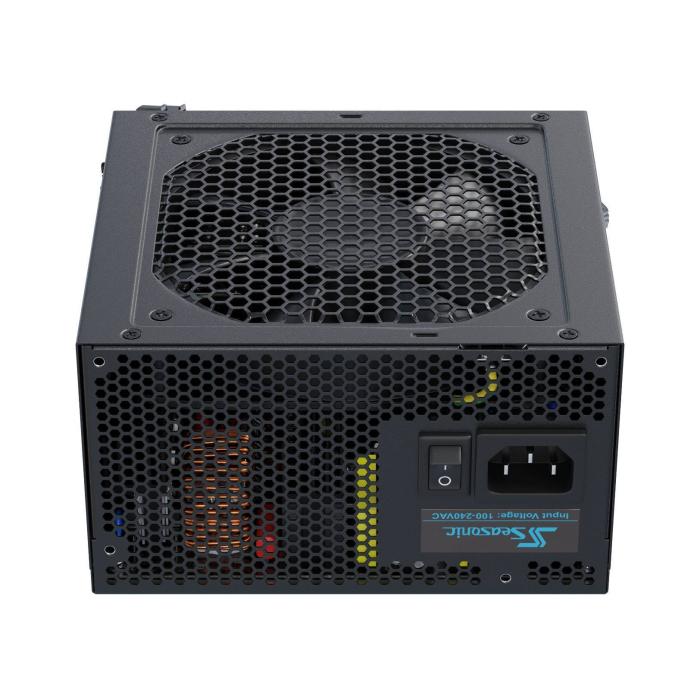

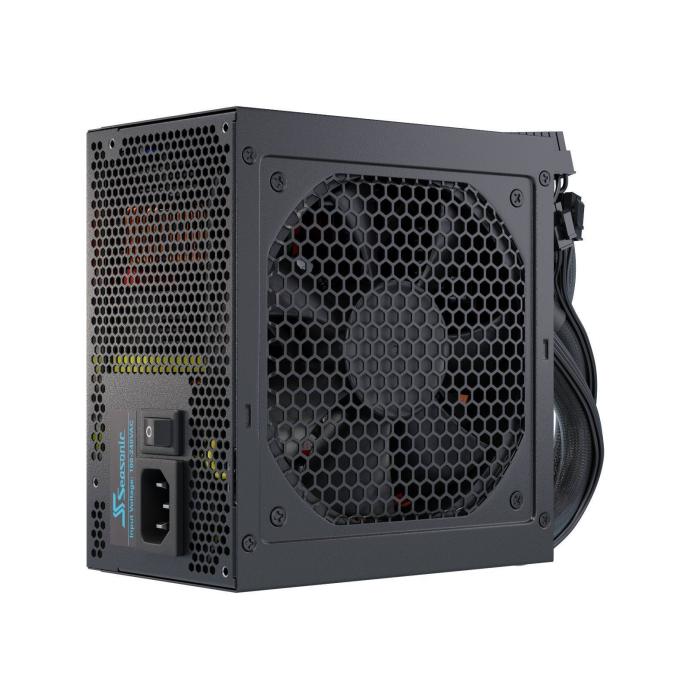

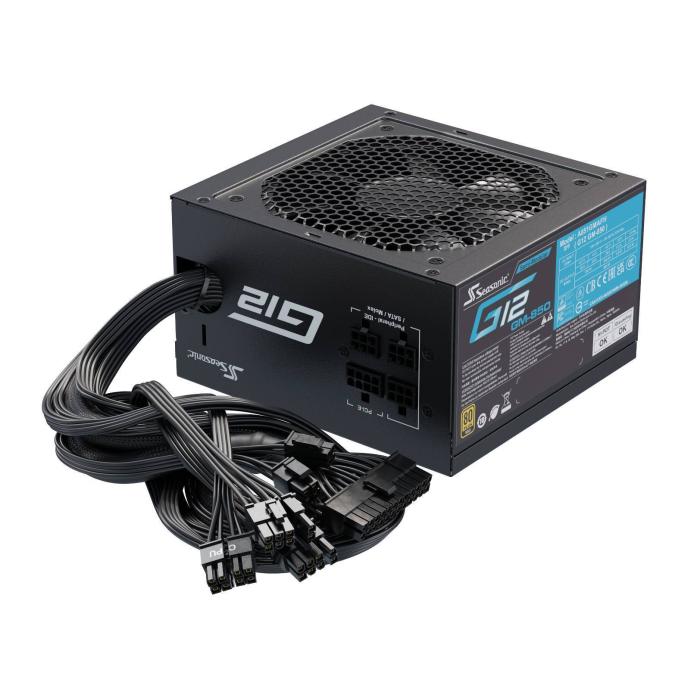

Seasonic Focus G12 GM power supply, 850 W, ATX form factor, black finish, with semi-modular cabling and a main 20+4 pin connector for the motherboard. It provides a combined output of 840 W on the +12 V rail with a maximum current of 70 A, and supplies 100 W on the 3.3 V and 5 V rails respectively. It includes overcurrent, overvoltage and short-circuit protections, plus a 4+4 pin CPU connector with a 60 cm cable. It supports an input voltage of 100 to 240 V with an input current of 10 A, and features -12 V and +5 VSB output rails with specific capacities for stable installation.
Specifications
Power
- Total power: 850 W
- AC input voltage: 100 - 240 V
- Input current: 10 A
- Combined power (+3.3V): 100 W
- Combined power (+12V): 840 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 70 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Power protection features: Over current, Over voltage, Short circuit
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 690 mm
- PCI Express power connectors (6+2 pin): 2
- PCI Express power cable length: 70 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 60 cm
- Cabling type: Semi-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Bearing technology: Sleeve
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Packaging content
- Cables included: AC, PCIe, Peripheral (Molex), SATA
- Cable tie(s) included: Yes
Certificates
- Certification: cTUVus, TUV, CB, CCC, BSMI, CE, FCC, RoHS, WEEE, ErP Lot 6, REACH
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Packaging data
- Package type: Box
