Description

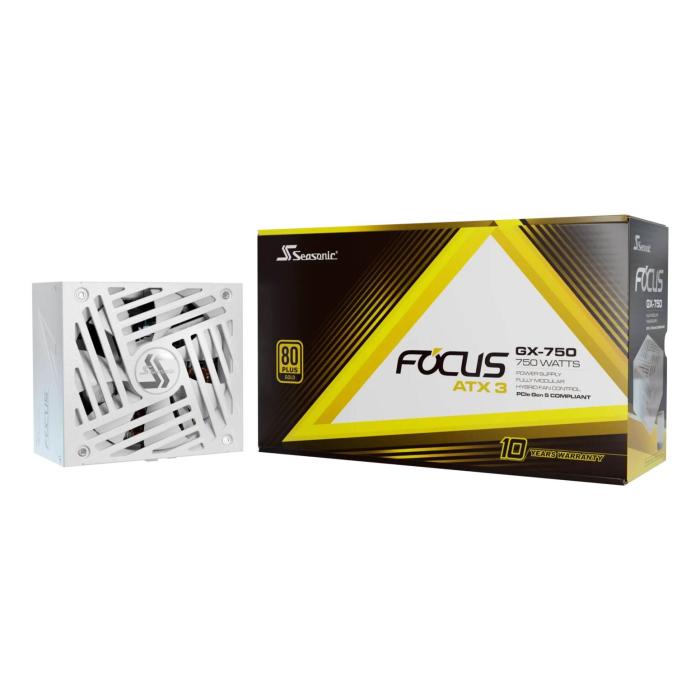

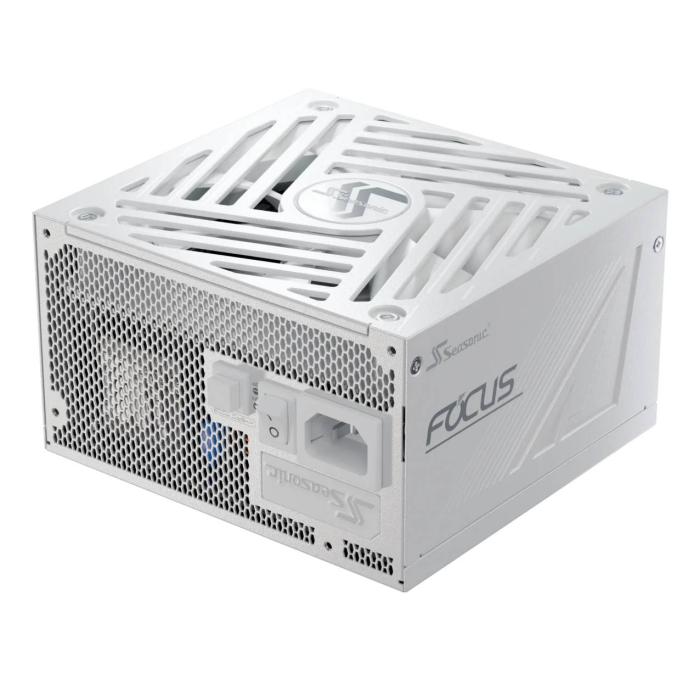

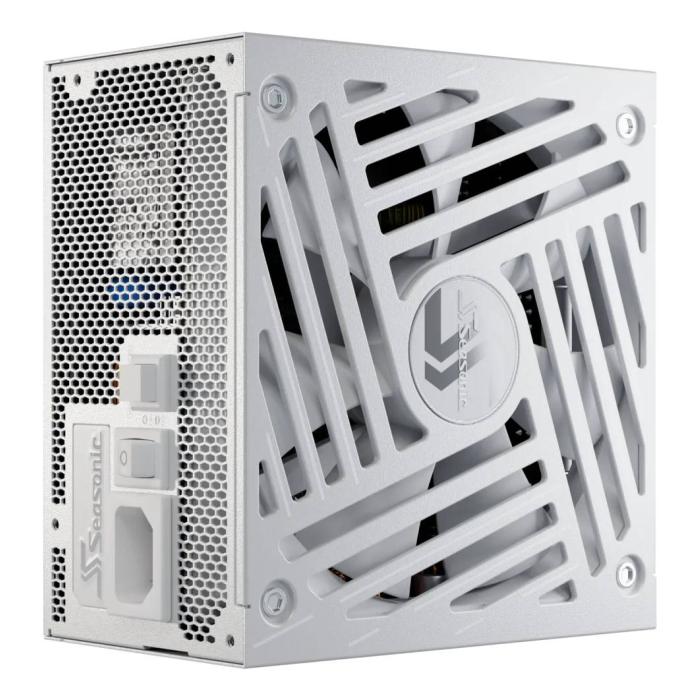

The Seasonic Focus GX in a white finish offers a total power of 750 W with a main 24-pin ATX connector, designed for builds where colour also matters. Among its specifications, it supports an AC input voltage of 100-240 V, with a maximum output current of 62 A on the +12 V rail, delivering up to 744 W for the most demanding components. It includes protections against overcurrent, overvoltage, undervoltage, overheating and short circuit, as well as a 12+4-pin PCI Express cable with a 700 mm length and a 4+4-pin CPU connector for the motherboard. Its modular design facilitates cable management, keeping the case interior tidy in ATX systems.
Specifications
Power
- Total power: 750 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10 - 5 A
- Combined power (+3.3V): 100 W
- Combined power (+12V): 744 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 62 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 61 cm
- SATA power cable length: 950 mm
- Peripheral (Molex) power cable length: 690 mm
- PCI Express power connectors (6+2 pin): 2
- PCI Express power connectors (12+4 pin) cable length: 700 mm
- PCI Express power cable length: 75 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 70 cm
- PCI Express connector: Yes

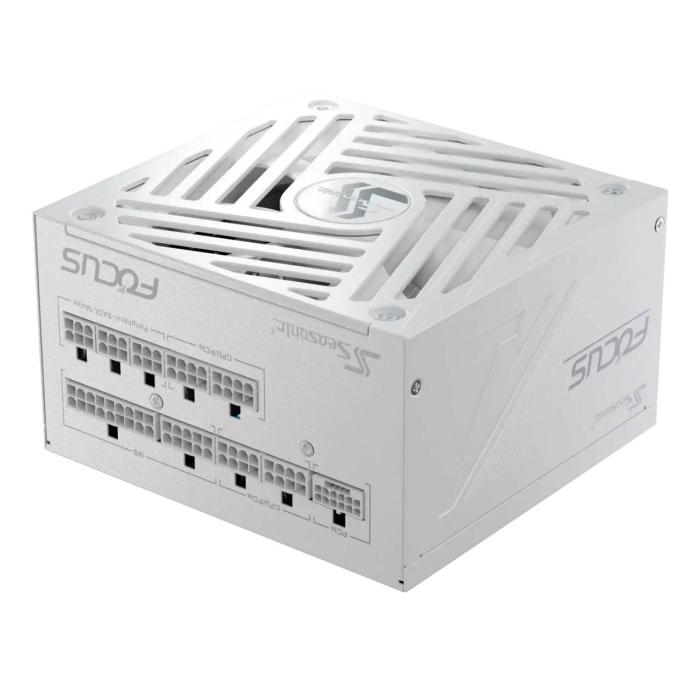

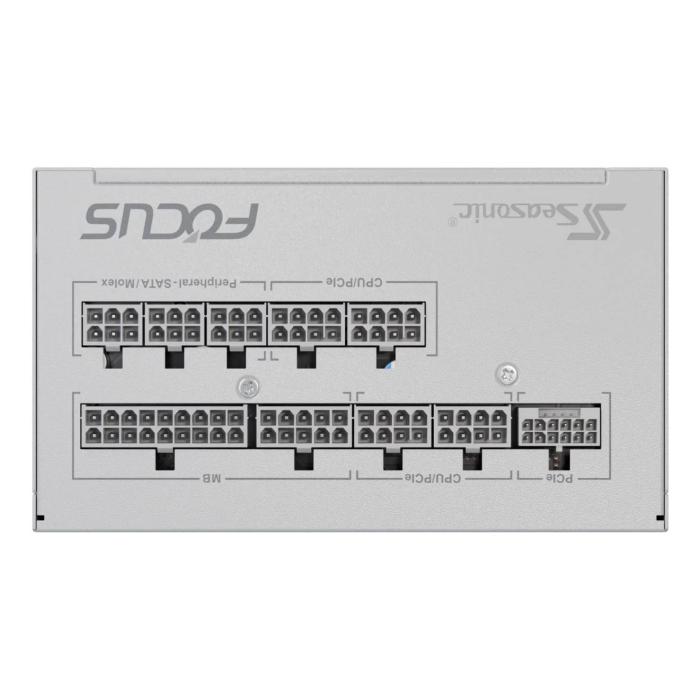

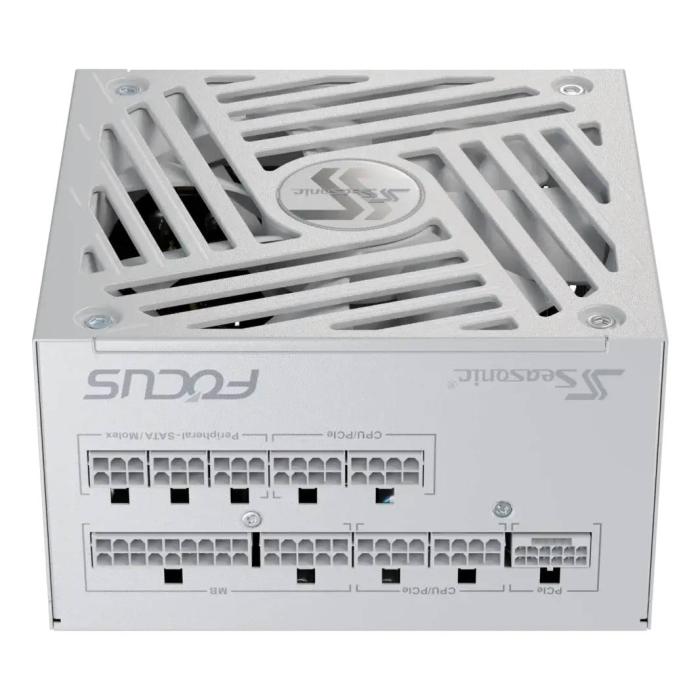

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Silent mode: Yes
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design

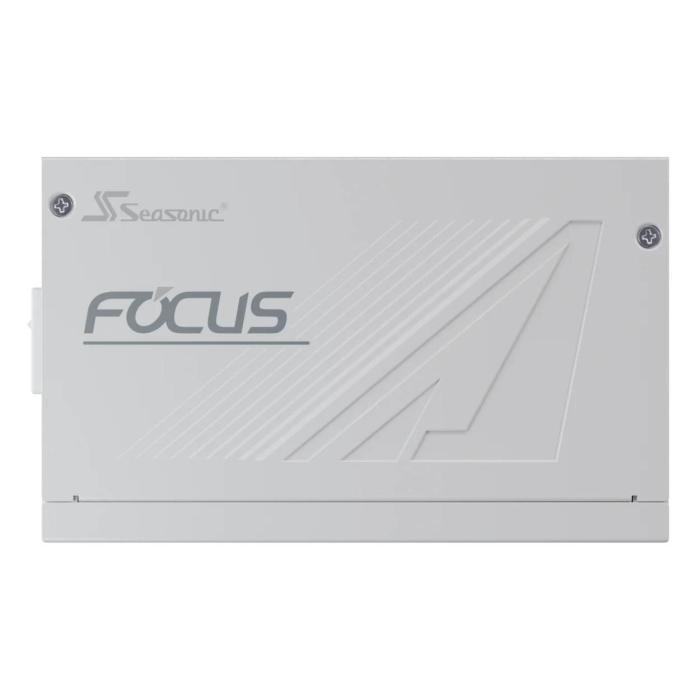

- Product colour: White
- Cooling type: Active

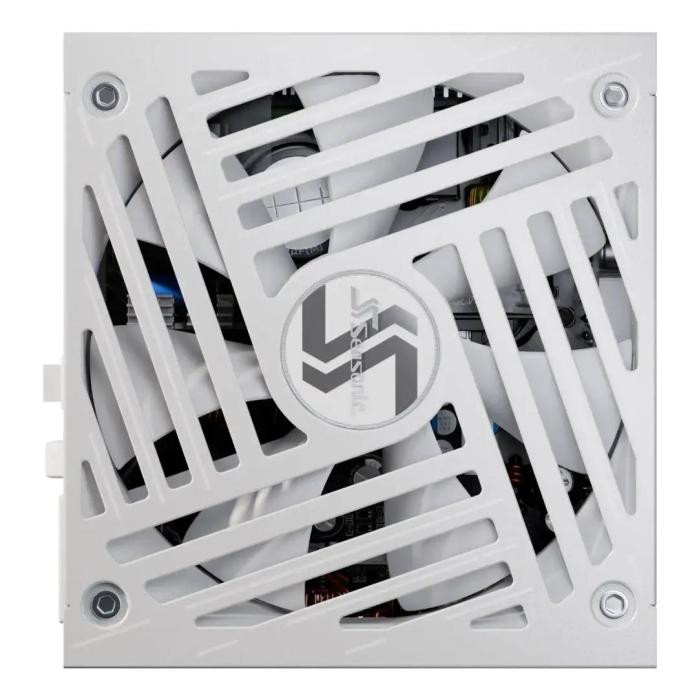

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)

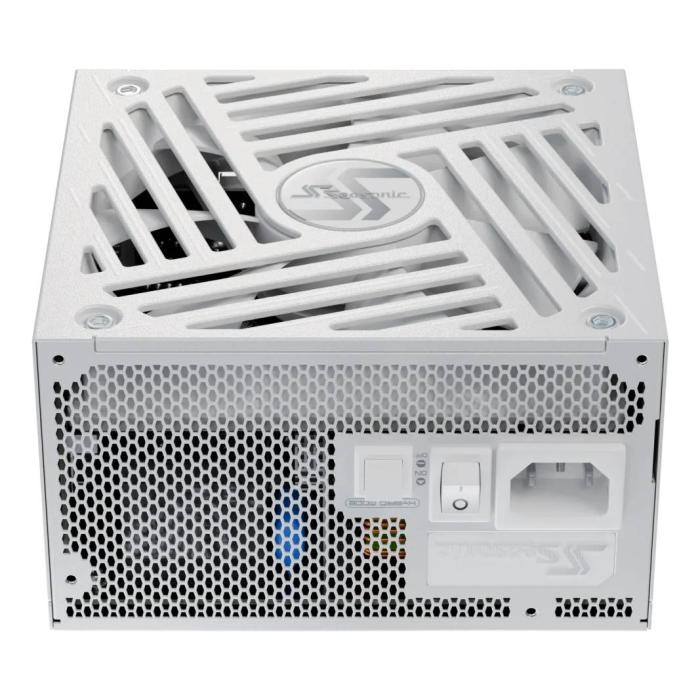

- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C

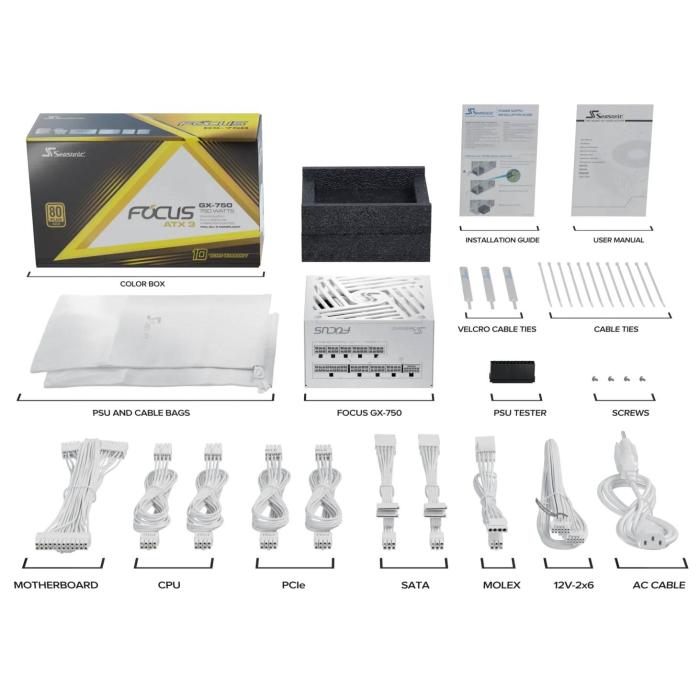

Packaging content
- Cable tie(s) included: Yes
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
- Compliance certificates: BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), REACH, RoHS, TÜV mark, cTUVus
- Certification: BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV, Energy Star, ErP Lot 6, REACH, RoHS, WEEE
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Technical details
- Sustainability compliance: Yes
- Sustainability certificates: ENERGY STAR, ErP
