Description
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7
- Full duplex: Yes
- Flow control support: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet forwarding rate (1 Gbps): 1488000 pps
- Packet forwarding rate (100 Mbps): 148000 pps
- Packet forwarding rate (10 Mbps): 14880 pps
Security
- DHCP features: DHCP snooping, DHCP relay
- SSH/SSL support: Yes
Design
- Rack mounting: Yes
- Product colour: Grey
- LED indicators: Activity, PoE, Power

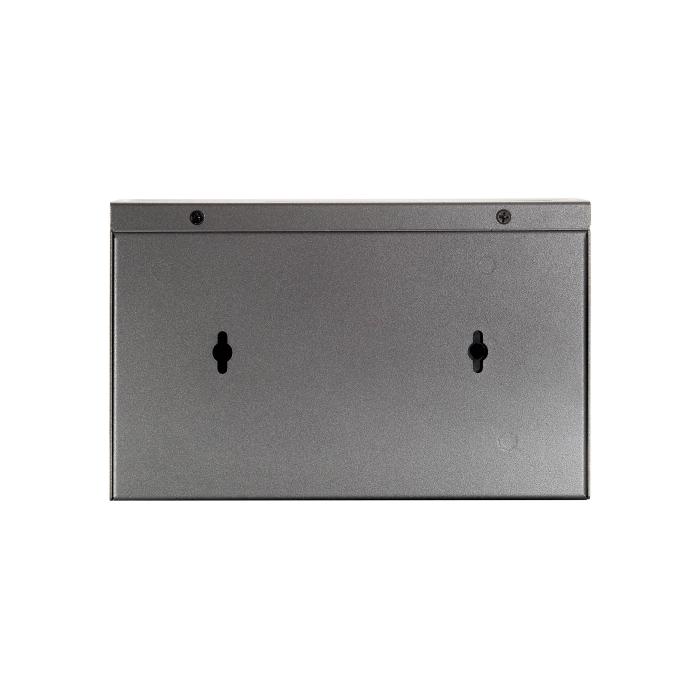

- Wall mountable: Yes
Performance
- Buffer size: 128 KB
- sFlow: Yes
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 1.35 A
- Power consumption (typical): 90 W
- Power protection features: Over current, Short circuit
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 61.6 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 185 mm
- Depth: 44 mm
- Height: 280 mm
- Weight: 1.2 kg
Packaging content
- Cables included: AC
- Quick start guide: Yes
Packaging data
- AC adapter included: Yes
- Package type: Box
- Package width: 85 mm
- Package depth: 375 mm
- Package height: 230 mm
- Package weight: 2.55 kg
Certificates
- Certification: CE, FCC
Logistics data
- Country of origin: Taiwan
- Master (outer) case width: 250 mm
- Master (outer) case length: 520 mm
- Master (outer) case height: 395 mm
- Harmonized System (HS) code: 85176990
- Master (outer) case gross weight: 13.2 kg
- Products per master (outer) case: 6 pc(s)
