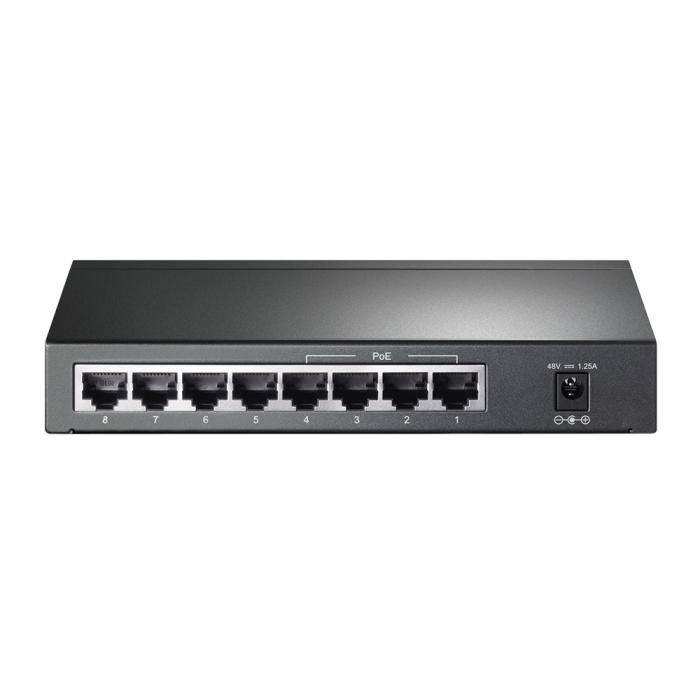

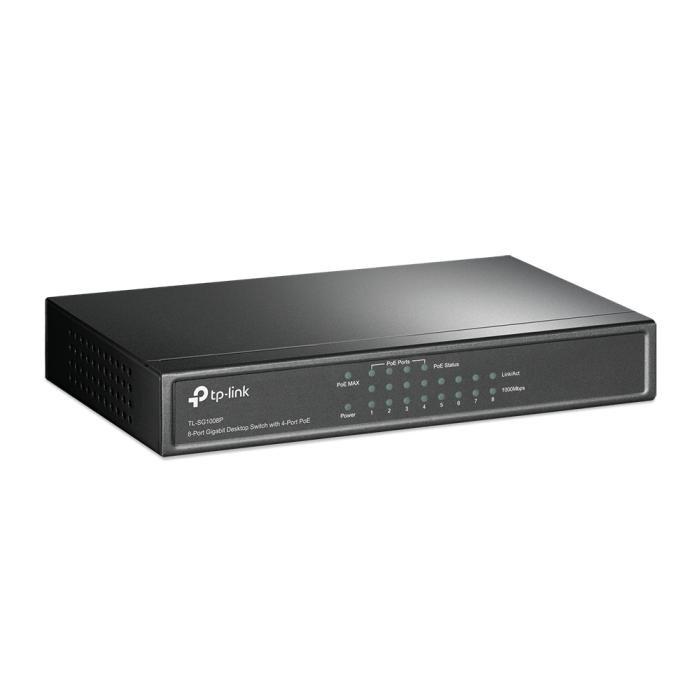

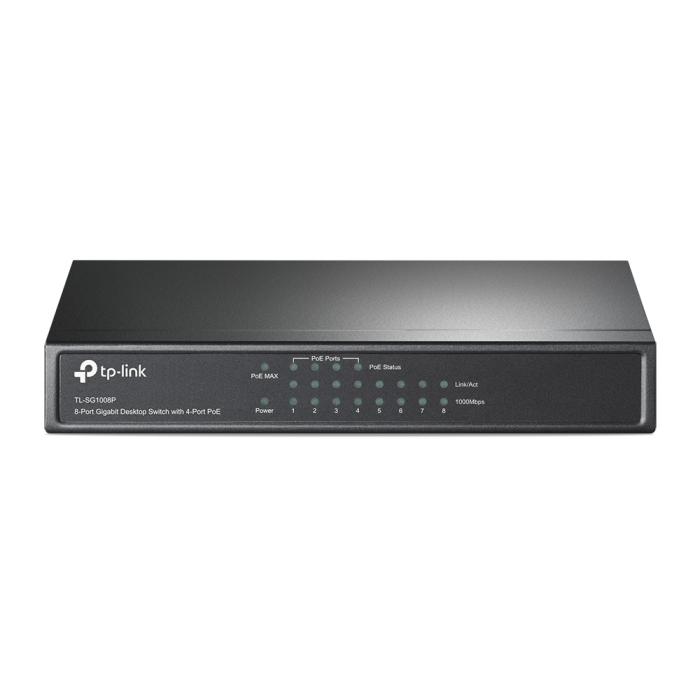

TP-Link 8-Port Gigabit Desktop PoE Switch with 4-Port

$44.75
$44.75 without VAT

TP-Link 8-Port Gigabit Desktop PoE Switch with 4-Port.   More info

Brand: TP-LINK
SKU: 71176 PRC: 4589 EAN: 6935364021160 PN: TL-SG1008P

Description

Specifications

Management features

  • Switch type: Managed
  • Quality of Service (QoS) support: No

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 8
  • Power connector: DC-in jack

Network

  • Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • MAC address auto-learning supported: Yes
  • MAC address auto-aging supported: Yes

Data transmission

  • Switching capacity: 16 Gbit/s
  • Forwarding rate: 11.904 Mpps
  • MAC address table: 4000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 16000

Security

  • IGMP snooping: Yes

Design

  • Rack mounting: No
  • Stackable: No
  • Product colour: Grey
  • Housing material: Metal
  • LED indicators: Yes

Performance

  • Maximum cable length: 100 m
  • Fanless: Yes

Power

  • Power source: DC/PoE
  • Power supply included: Yes
  • Number of power supply units: 1
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • DC input voltage: 53.5 V
  • Input current: 1.31 A
  • Power consumption (max): 75 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 4
  • Total Power over Ethernet (PoE) budget: 64 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 225.75 BTU/h

Weight & dimensions

  • Width: 171 mm
  • Depth: 98 mm
  • Height: 27 mm

Packaging content

  • Cables included: AC
  • User guide: Yes

Packaging data

  • Package weight: 900 g
  • Package type: Box
  • Package width: 223 mm
  • Package depth: 280 mm
  • Package height: 68 mm

Sustainability

  • Sustainability compliance: Yes

Certificates

  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
