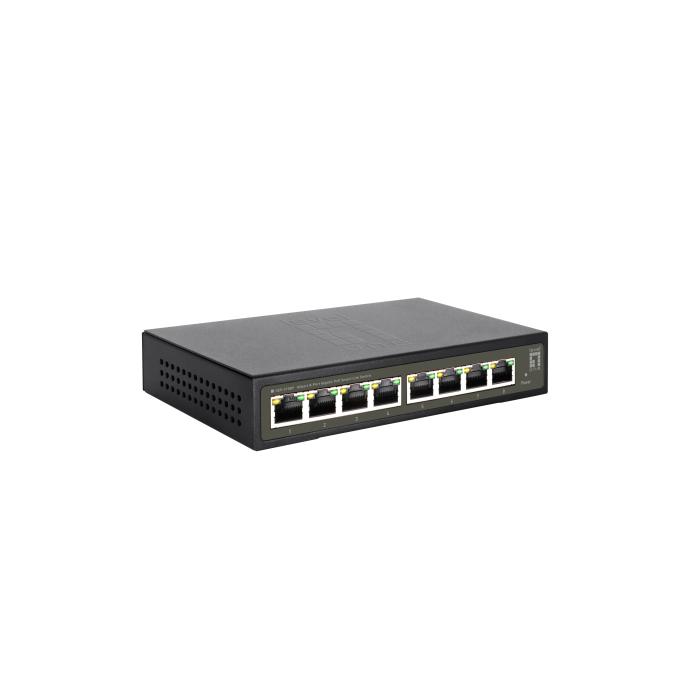

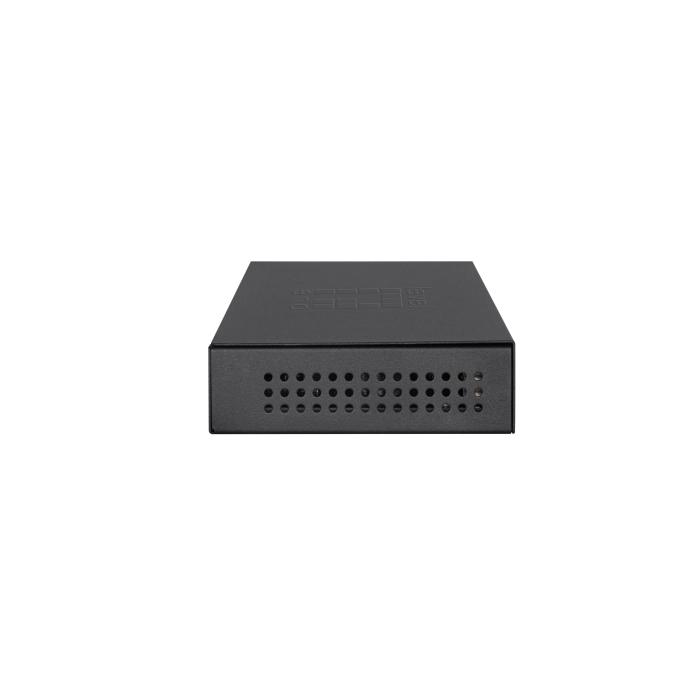

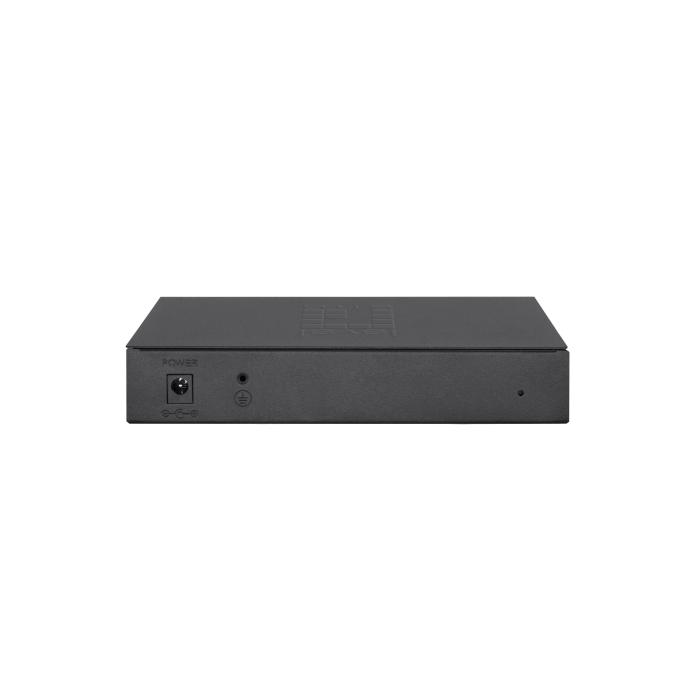

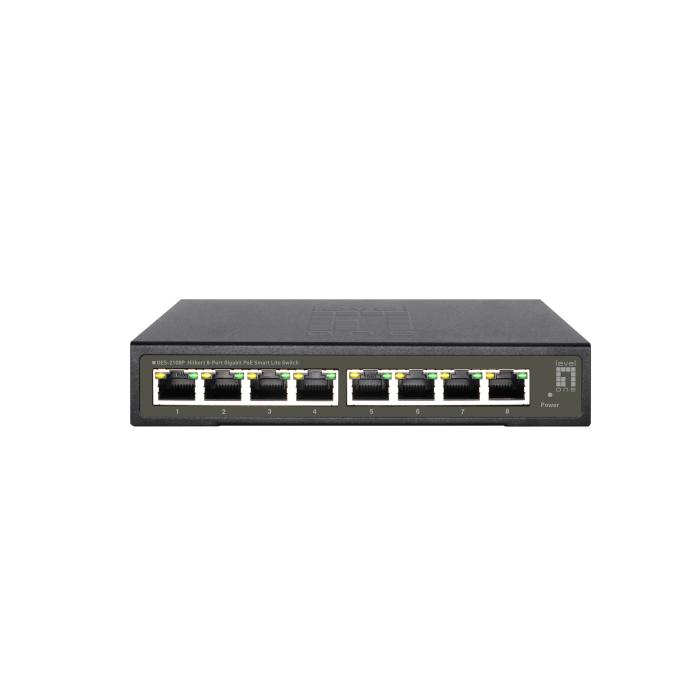

LevelOne Hilbert 8-Port Gigabit PoE Smart Lite Switch, 802.3at/af PoE, 8 PoE Outputs, 112.8W PoE Power Budget

$129.50
$129.50 without VAT

LevelOne Hilbert 8-Port Gigabit PoE Smart Lite Switch, 802.3at/af PoE, 8 PoE Outputs, 112.8W PoE Power Budget.   More info

Brand: LEVELONE
SKU: 102853 PRC: 461647 EAN: 4015867229200 PN: GES-2108P

Description

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 8

Network

  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • MAC address auto-learning supported: Yes
  • MAC address auto-aging supported: Yes
  • VLAN support: Yes
  • Virtual LAN features: Tagged VLAN
  • Number of VLANs: 32

Data transmission

  • Switching capacity: 16 Gbit/s
  • MAC address table: 4000 entries
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 1.5 MB

Security

  • IGMP snooping: Yes

Multicast features

  • Multicast support: Yes

Design

  • Rack mounting: No
  • Product colour: Black
  • LED indicators: Activity, Link, PoE

Performance

  • Flash memory: 2 MB
  • Noise level: 0 dB
  • Fanless: Yes
  • Mean time between failures (MTBF): 43800 h

Power

  • Power source: DC/PoE
  • Power supply included: Yes
  • DC input voltage: 54 V
  • Input current: 2.2 A
  • Power consumption (max): 120 W
  • Surge protection: Yes
  • Surge protection voltage: 8 kV

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 112.8 W

Operational conditions

  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 95%
  • Heat dissipation: 27.3 BTU/h

Weight & dimensions

  • Width: 160 mm
  • Depth: 95 mm
  • Height: 29 mm
  • Weight: 400 g

Packaging content

  • Cables included: AC

Packaging data

  • AC adapter included: Yes
  • Package type: Box
  • Package width: 310 mm
  • Package depth: 230 mm
  • Package height: 65 mm
  • Package weight: 1.3 kg

Sustainability

  • Sustainability compliance: Yes

Technical details

  • Master (outer) cases per pallet (air): 18 pc(s)
  • Pallet gross length: 80 cm
  • Pallet gross width: 120 cm
  • Pallet height (air): 158.4 cm

Certificates

  • Compliance certificates: CE, RoHS
  • Certification: UKCA, FCC Class A

Logistics data

  • Master (outer) case net weight: 600 g
  • Country of origin: China
  • Master (outer) case width: 350 mm
  • Master (outer) case length: 330 mm
  • Master (outer) case height: 480 mm
  • Master (outer) case gross weight: 13.6 kg
  • Products per master (outer) case: 10 pc(s)
