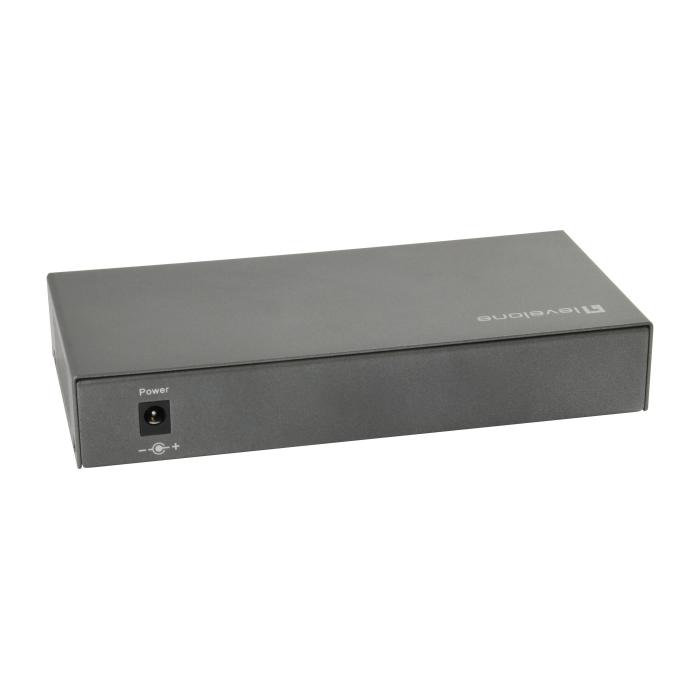

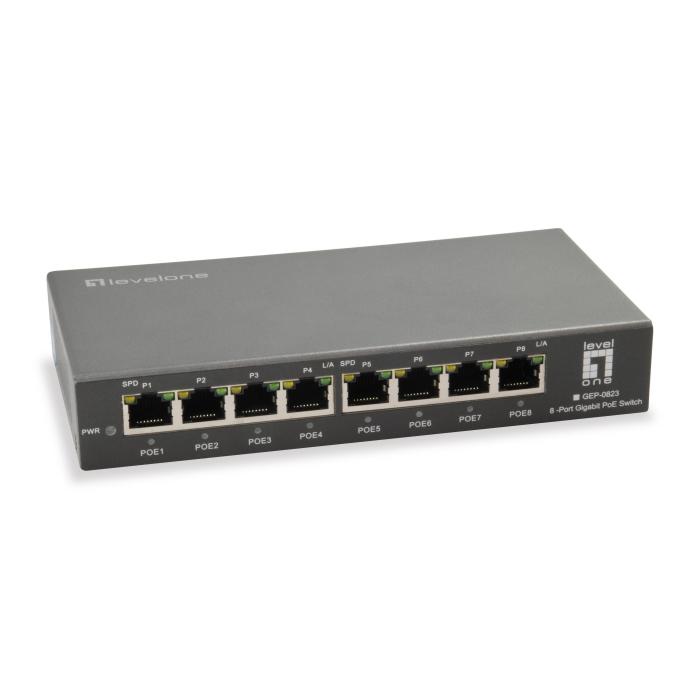

LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE, 120W

136.00 €
112.40 € without VAT

More info

Brand: LEVELONE
SKU: 81992 PRC: 246946 EAN: 4015867207444 PN: 57081903

Description

LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE, 120W, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

Specifications

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Power connector: DC-in jack

Network

  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Full duplex: Yes

Data transmission

  • Switching capacity: 16 Gbit/s
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9126

Design

  • Stackable: No
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Activity, LAN, Power

Performance

  • Internal memory: 1 MB
  • Buffer size: 8 KB
  • Mean time between failures (MTBF): 30000 h

Power

  • Input current: 2.5 A
  • Input voltage: 52 V
  • Power consumption (typical): 10 W
  • Power protection features: Over current, Short circuit

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

  • Operating temperature (T-T): -20 - 70 °C
  • Storage temperature (T-T): -20 - 70 °C
  • Operating relative humidity (H-H): 5 - 90%
  • Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

  • Width: 86 mm
  • Depth: 30 mm
  • Height: 176 mm
  • Weight: 450 g

Packaging content

  • Quick start guide: Yes

Packaging data

  • AC adapter included: Yes
  • Package width: 230 mm
  • Package depth: 60 mm
  • Package height: 290 mm
  • Package weight: 950 g

Certificates

  • Certification: CE,FCC

Logistics data

  • Country of origin: China
  • Harmonized System (HS) code: 85176990
