LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C

Return

Product 1 image

Product 2 image

Product 3 image

Product 4 image

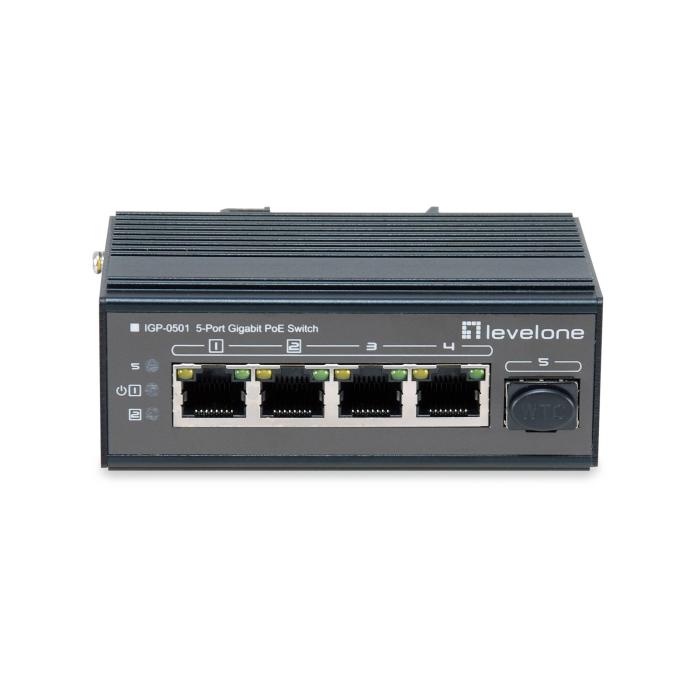

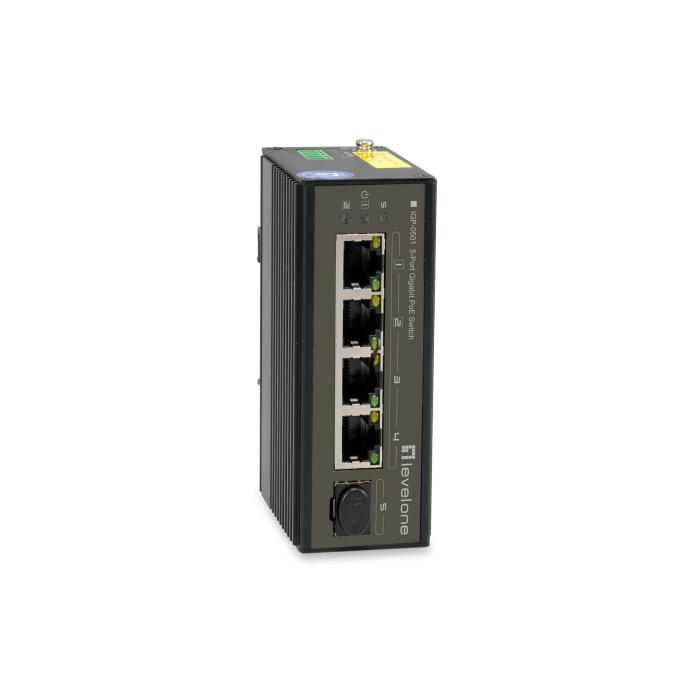

LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C

$153.30

$153.30 without VAT

Amount

Brand: LEVELONE

SKU: 88526 PRC: 327022 EAN: 4015867196625 PN: IGP-0501

Description

LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 4
SFP module slots quantity: 1

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex: Yes
Half duplex: Yes
Flow control support: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes

Design

Rack mounting: No
Product colour: Black
Housing material: Metal
LED indicators: Activity, Power
International Protection (IP) code: IP30
Wall mountable: Yes

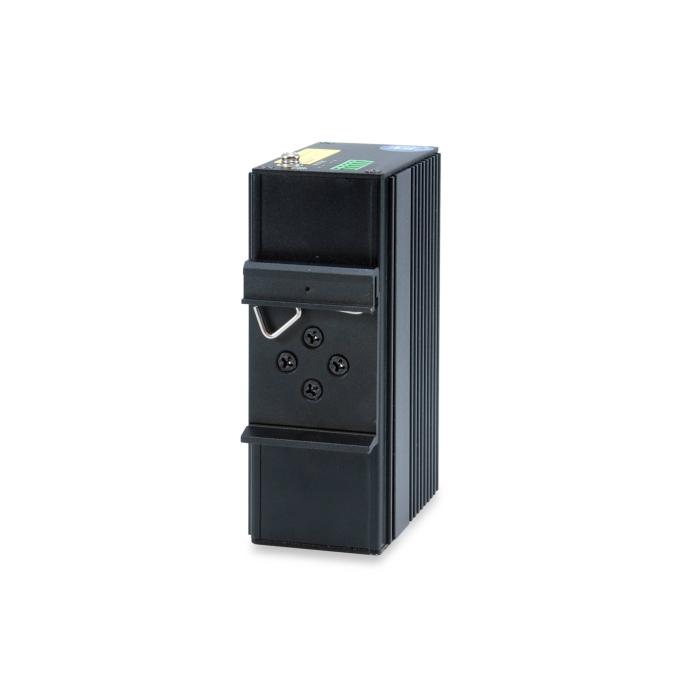

DIN rail mounting: Yes

Power

Power supply included: No

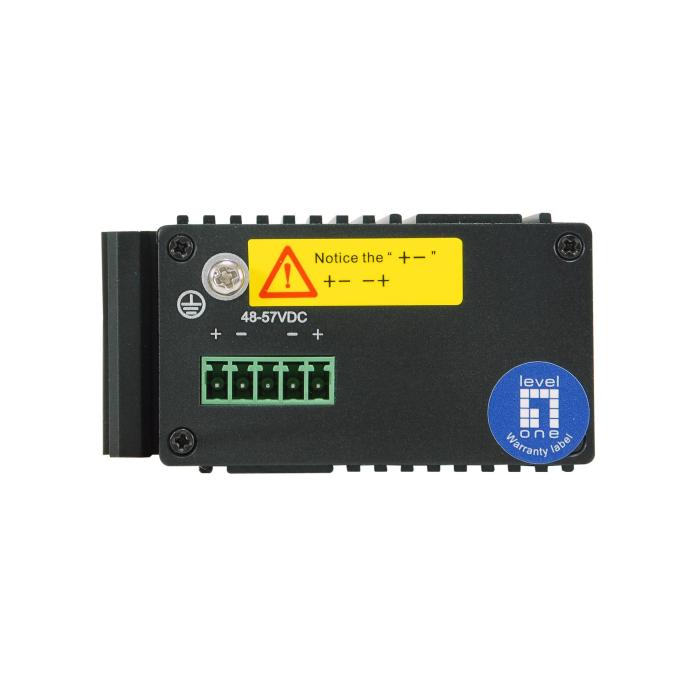

DC input voltage: 48 - 57 V
Surge protection: Yes
Surge protection voltage: 6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W

Operational conditions

Operating temperature (T-T): -30 - 65 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 65 mm
Depth: 36 mm
Height: 101 mm
Weight: 350 g

Packaging content

Quick start guide: Yes

Packaging data

Terminal block included: Yes
Package type: Box
Package width: 70 mm
Package depth: 60 mm
Package height: 110 mm
Package weight: 400 g

Technical details

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 159 cm

Logistics data

Products per pallet: 24 pc(s)
Country of origin: China
Master (outer) case width: 422 mm
Master (outer) case length: 566 mm
Master (outer) case height: 360 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 13 kg
Products per master (outer) case: 28 pc(s)
