Description

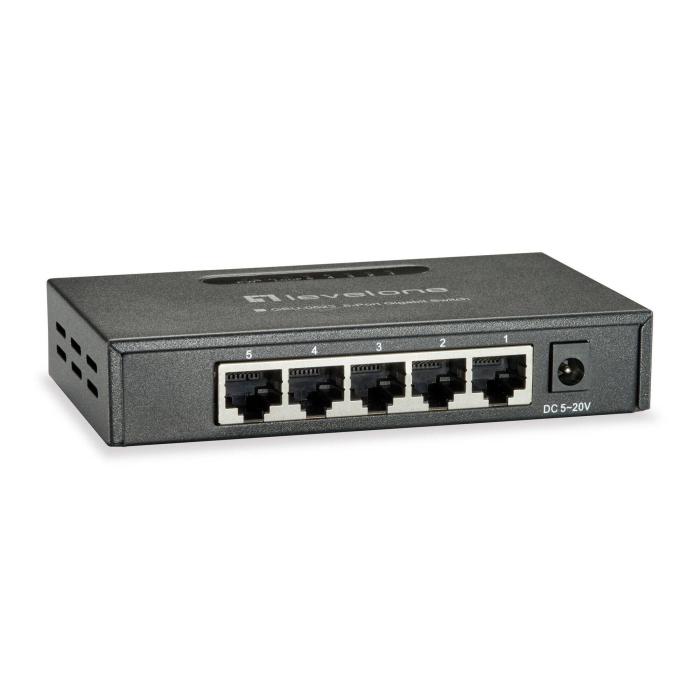

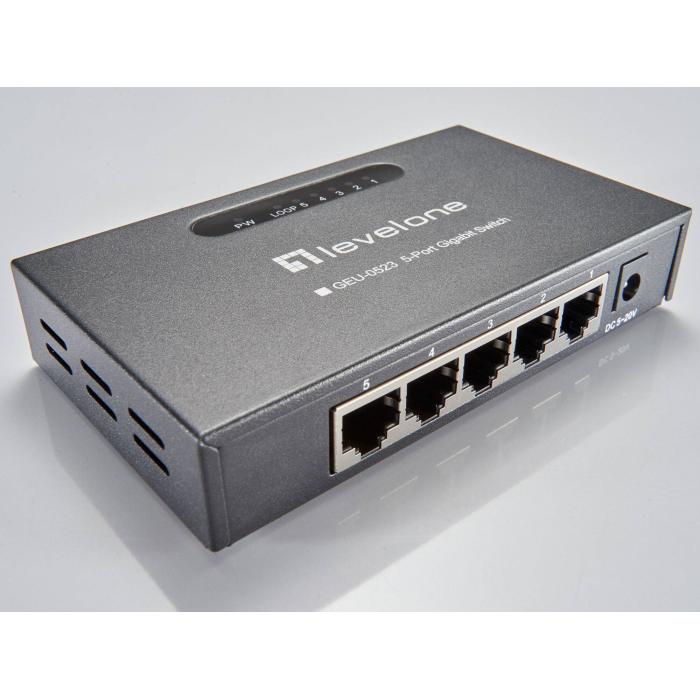

The LevelOne GEU-0523 switch is an unmanaged black device that provides five RJ-45 Gigabit Ethernet (10/100/1000) ports to expand the wired connectivity of your local network. Its switching capacity reaches 10 Gbit/s and the Store-forward transmission method relies on a MAC address table of 2000 entries, enough to manage the traffic of a small office or a home with several devices. It includes support for 9000-byte Jumbo frames and complies with the IEEE 802.3az standard, as well as supporting auto-learning and auto-aging of MAC addresses. The packet forwarding rate stands at 1488000 pps at 1 Gbps. Its metal casing withstands continuous use and allows wall mounting, with dimensions of 124 x 24 x 72 mm (width x height x depth) and a weight of 174 g that keep it discreet in any installation.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 5
Network
- Networking standards: IEEE 802.3az
- 10G support: No
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 10 Gbit/s
- MAC address table: 2000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Transmission method: Store- froward
- Packet forwarding rate (1 Gbps): 1488000 pps
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes

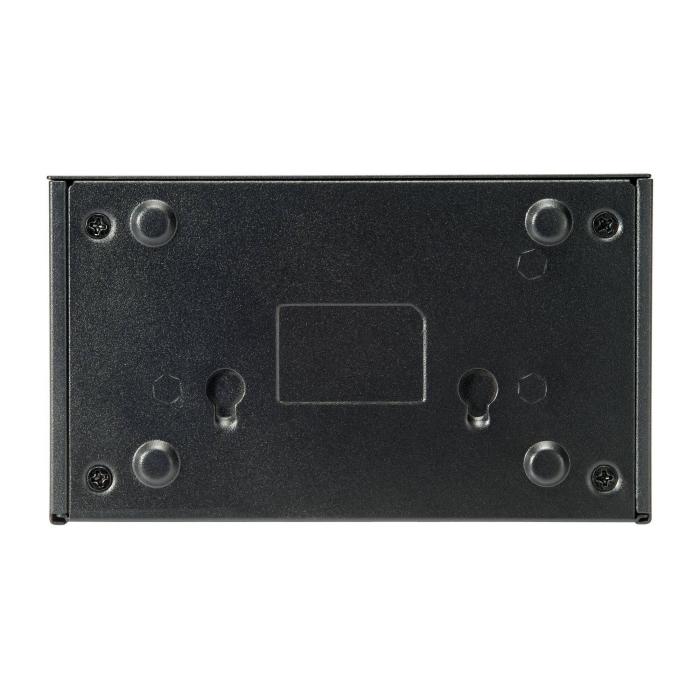

- Wall mountable: Yes
Performance
- Built-in processor: Yes
- Processor model: MT7530D
- Flash memory: 1024 MB
Power
- Power supply included: No
- DC input voltage: 5 V
- Input current: 0.5 A
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 124 mm
- Depth: 72 mm
- Height: 24 mm
- Weight: 174 g
Packaging content
- Quick start guide: Yes
- Manual: Yes
Packaging data
- AC adapter included: Yes
- Package width: 138 mm
- Package depth: 80 mm
- Package height: 80 mm
- Package weight: 290 g
Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
