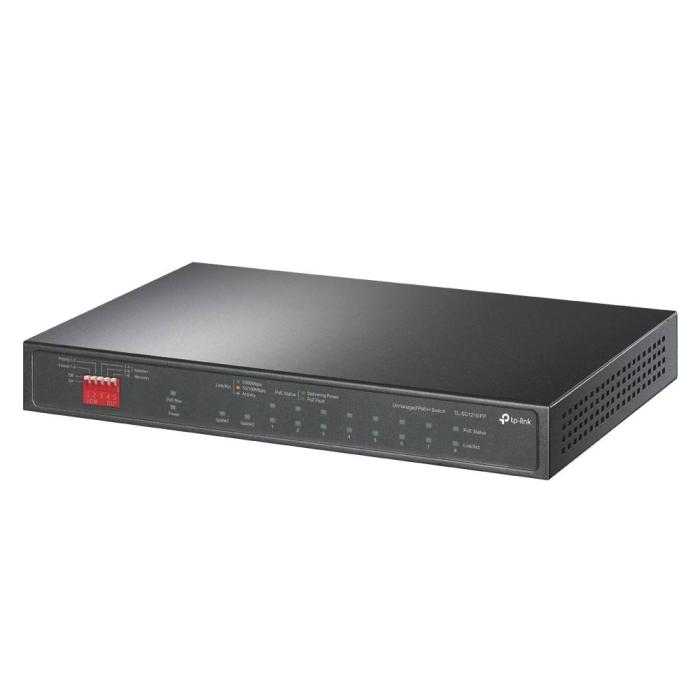

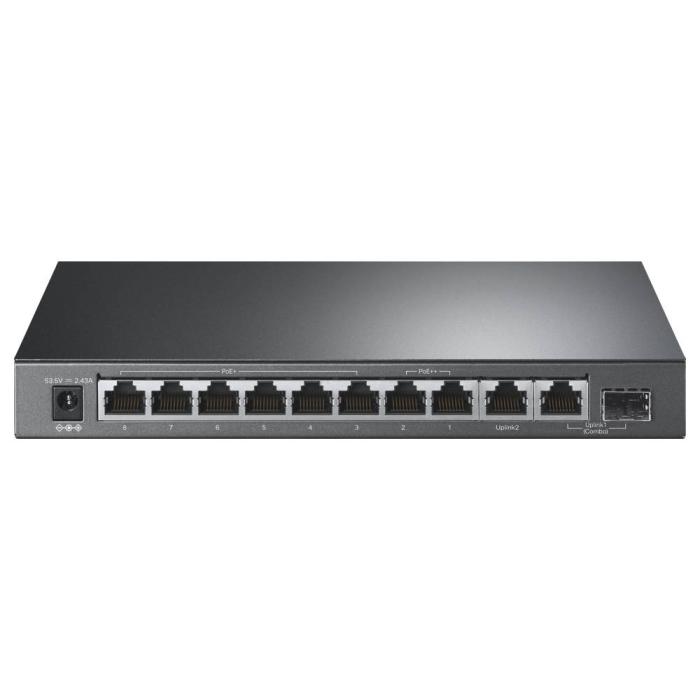

TP-Link 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++

$117.12
$117.12 without VAT

TP-Link 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++.   More info

Brand: TP-LINK
SKU: 102487 PRC: 460330 EAN: 4895252500356 PN: TL-SG1210PP

Description

10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++

Specifications

Management features

  • Switch type: Unmanaged
  • Quality of Service (QoS) support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 10
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 10
  • Combo SFP ports quantity: 1

Network

  • Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • MAC address auto-learning supported: Yes
  • MAC address auto-aging supported: Yes

Data transmission

  • Switching capacity: 20 Gbit/s
  • Forwarding rate: 14.88 Mpps
  • MAC address table: 4000 entries
  • Store-and-forward: Yes

Security

  • IGMP snooping: Yes

Design

  • Rack mounting: No
  • Product colour: Black
  • Housing material: Steel
  • LED indicators: Yes

Performance

  • Fanless: Yes

Power

  • Power source: DC/PoE
  • Power supply included: Yes
  • Number of power supply units: 1
  • AC input voltage: 90 - 220 V
  • AC input frequency: 50 Hz
  • Input current: 2.43 A
  • Input voltage: 53.5 V
  • Power consumption (max): 144.1 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 2
  • Power over Ethernet 4PPoE (PoE++) ports quantity: 6
  • Total Power over Ethernet (PoE) budget: 123 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 482.17 BTU/h

Weight & dimensions

  • Width: 209 mm
  • Depth: 126 mm
  • Height: 26 mm

Packaging content

  • Cables included: AC
  • User guide: Yes

Packaging data

  • Package type: Box

Certificates

  • Certification: FCC, CE, RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
