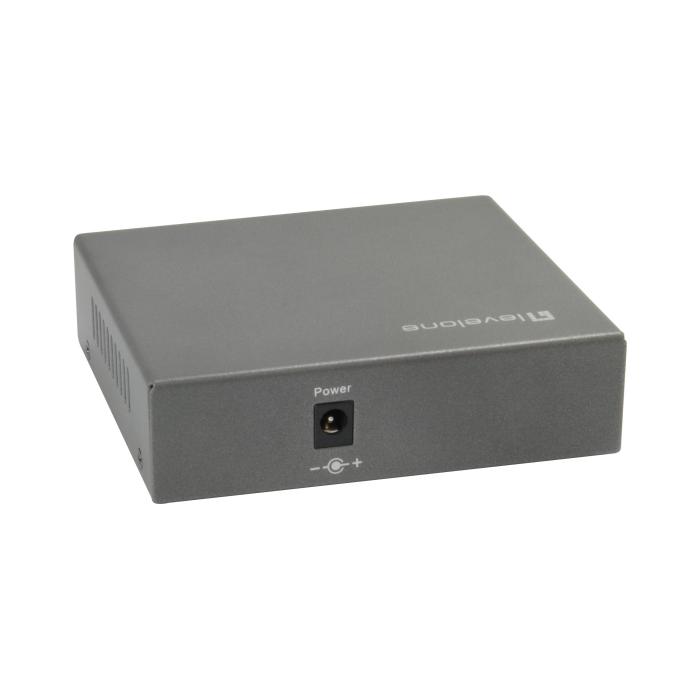

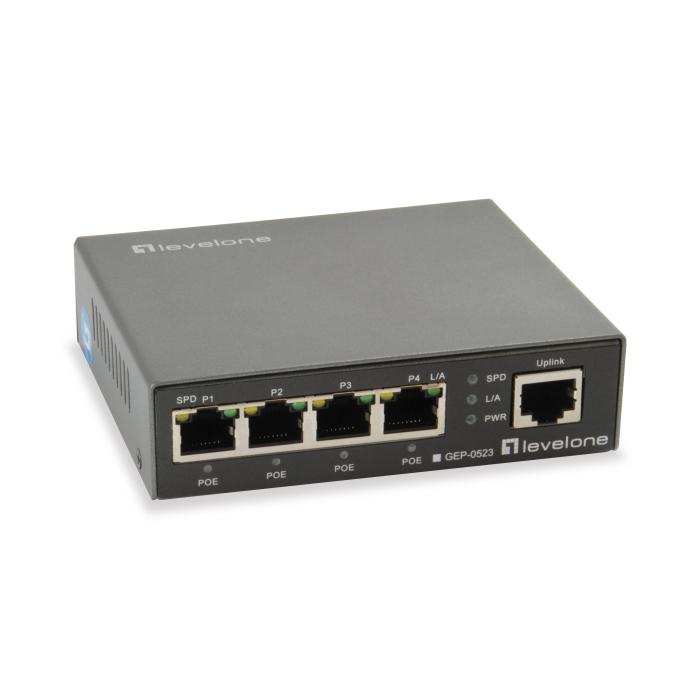

LevelOne 5-Port Gigabit PoE Switch, 802.3at/af PoE, 4 PoE Outputs, 60W

$74.27
$74.27 without VAT

More info

Brand: LEVELONE
SKU: 82325 PRC: 252835 EAN: 4015867207437 PN: GEP-0523

Description

LevelOne 5-Port Gigabit PoE Switch, 802.3at/af PoE, 4 PoE Outputs, 60W, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Specifications

Management features

  • Traffic classification: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
  • 10G support: No

Data transmission

  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Maximum data transfer rate: 1000 Gbit/s
  • Jumbo frames support: Yes
  • Jumbo frames: 9126
  • Packet buffer memory: 1 MB

Design

  • Rack mounting: No
  • Product colour: Black

Performance

  • Mean time between failures (MTBF): 30000 h

Power

  • Power supply included: Yes
  • DC input voltage: 52 - 57 V
  • Input current: 1.25 A
  • Power consumption (typical): 5 W
  • Power protection features: Over current, Short circuit

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 4
  • Total Power over Ethernet (PoE) budget: 60 W

Operational conditions

  • Operating temperature (T-T): -20 - 70 °C
  • Storage temperature (T-T): -20 - 70 °C
  • Operating relative humidity (H-H): 5 - 90%
  • Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

  • Width: 96 mm
  • Depth: 30 mm
  • Height: 111 mm
  • Weight: 350 g

Packaging content

  • Quick start guide: Yes

Packaging data

  • AC adapter included: Yes
  • Package width: 190 mm
  • Package depth: 55 mm
  • Package height: 230 mm
  • Package weight: 750 g

Certificates

  • Certification: CE,FCC

Logistics data

  • Harmonized System (HS) code: 85176990
