Kolink KL-500MV2 power supply unit 450 W 20+4 pin ATX ATX Black

Return

Few units

Product 1 image

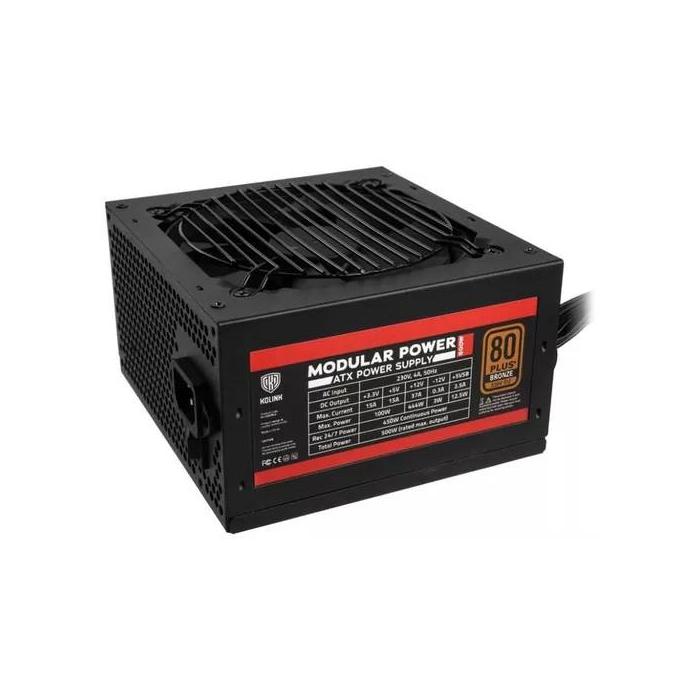

Kolink KL-500MV2 power supply unit 450 W 20+4 pin ATX ATX Black

$50.47

$50.47 without VAT

Amount

Brand: KOLINK

SKU: 89201 PRC: 335351 EAN: 5999094002890 PN: kl-500mv2

Description

Specifications

Power

Total power: 450 W
Peak power: 500 W
AC input voltage: 220 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 4 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 444 W
Combined power (+5V): 100 W
Combined power (-12V): 3 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 15 A
Max output current (+12V): 37 A
Max output current (+5V): 15 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Hold time: 16 ms
Efficiency: 87%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 4
SATA power cable length: 500, 600, 700, 800 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 500, 600 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 60 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
ATX power connector (20+4 pin): Yes
PCI Express connector: Yes
Cabling type: Semi-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.31
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Compliance certificates: CE, RoHS
Certification: CB

Safety regulation & standards

Safety: ErP 2013 Lot 6, ErP 2014 Lot, EU 617/2013

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 1.62 kg

Packaging data

Package width: 233 mm
Package depth: 196 mm
Package height: 95 mm
Package weight: 1.72 kg
Package type: Box
