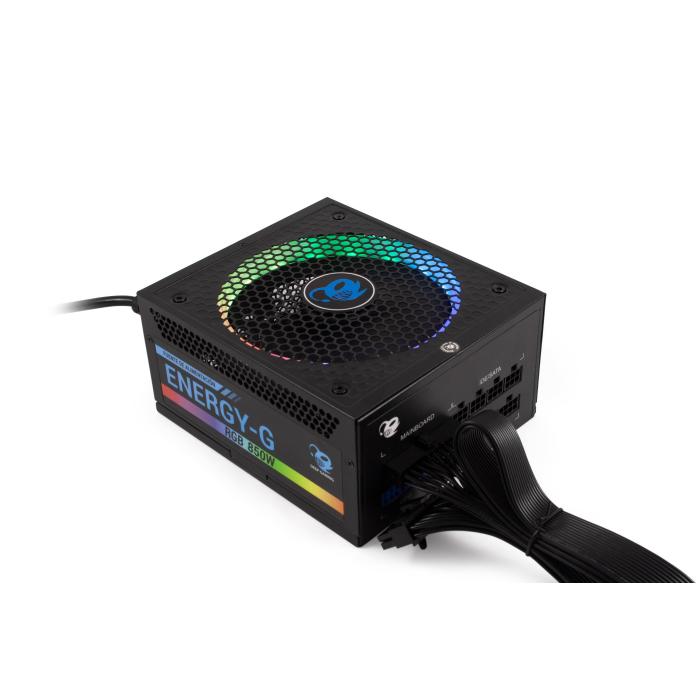

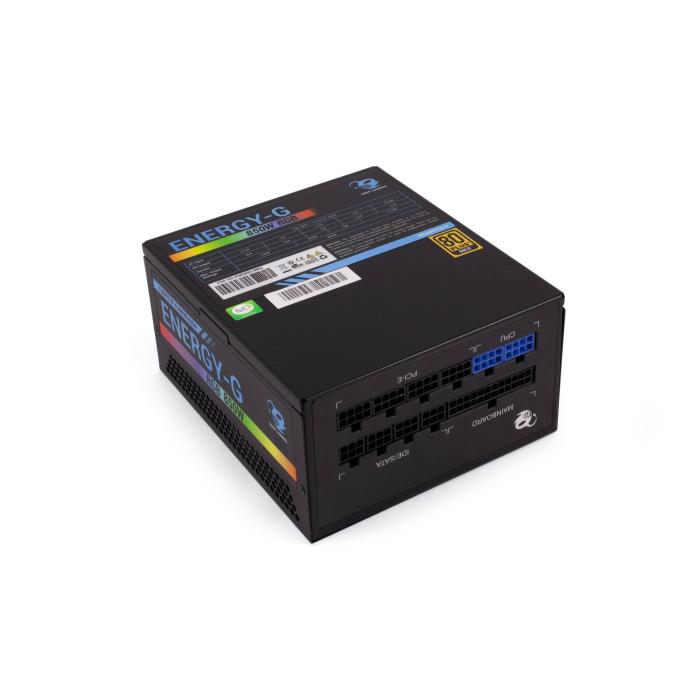

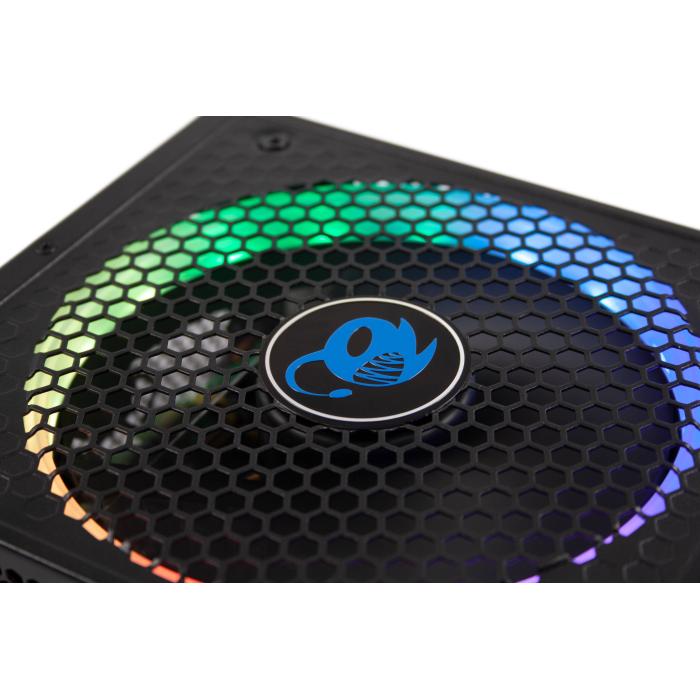

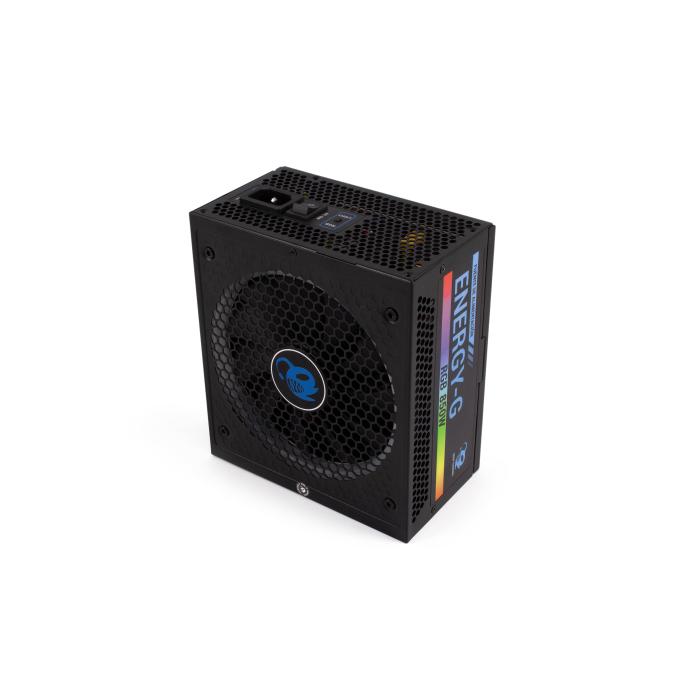

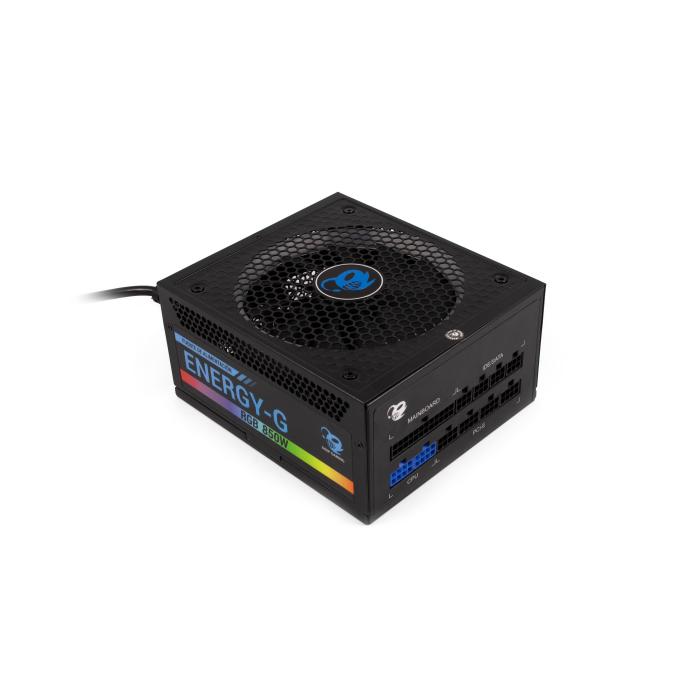

CoolBox RGB-850 Rainbow power supply unit 850 W 20+4 pin ATX ATX Black

Not avaliable

CoolBox RGB-850 Rainbow, 850 W, 100 - 240 V, 50/60 Hz, 6 A, 12 A, Active. More info

Amount

Brand: COOLBOX

SKU: 88382 PRC: 326112 EAN: 8436556143717 PN: DG-PWS850-MRG

Description

CoolBox RGB-850 Rainbow, 850 W, 100 - 240 V, 50/60 Hz, 6 A, 12 A, Active

Specifications

Power

Combined power (-12V): 6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 70 A
Max output current (+5V): 20 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 12.5 A
Efficiency: 87%
Power protection features: Over power, Over voltage, Short circuit, Under voltage
Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 6 A
Maximum input current (@220V): 12 A
Power factor: 0.99
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+5V): 100 W

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
CPU power connector (4+4 pin): Yes
Floppy disk drive connector: Yes
Cabling type: Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Weight & dimensions

Width: 150 mm
Depth: 170 mm
Height: 86 mm
Weight: 1.6 kg

Packaging data

Cables included: CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA

Other features

Manual: Yes
