Description

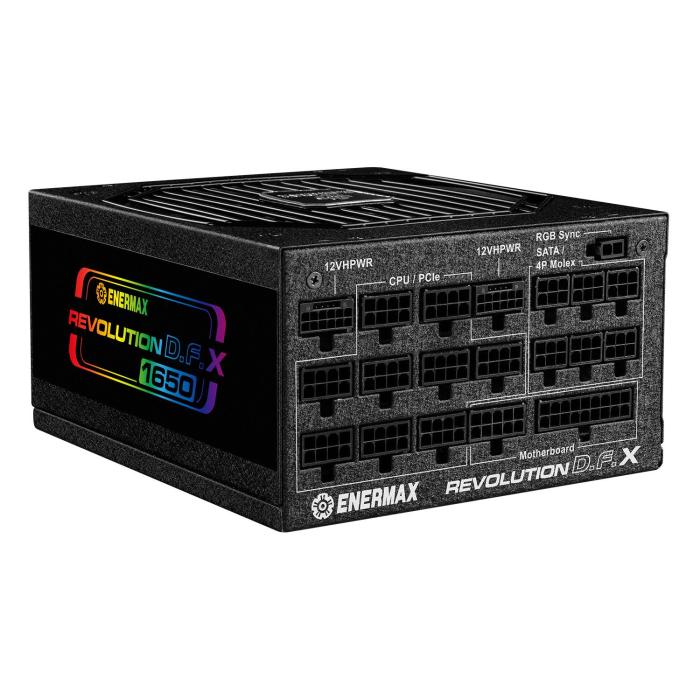

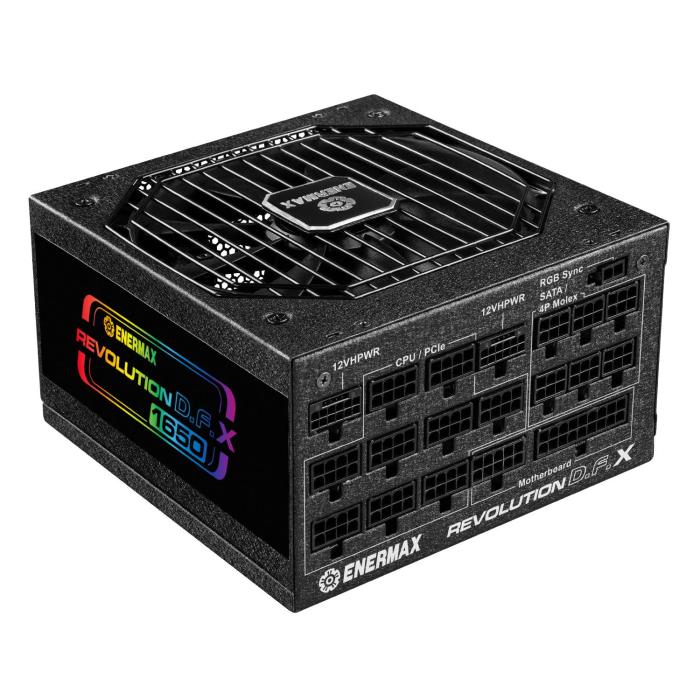

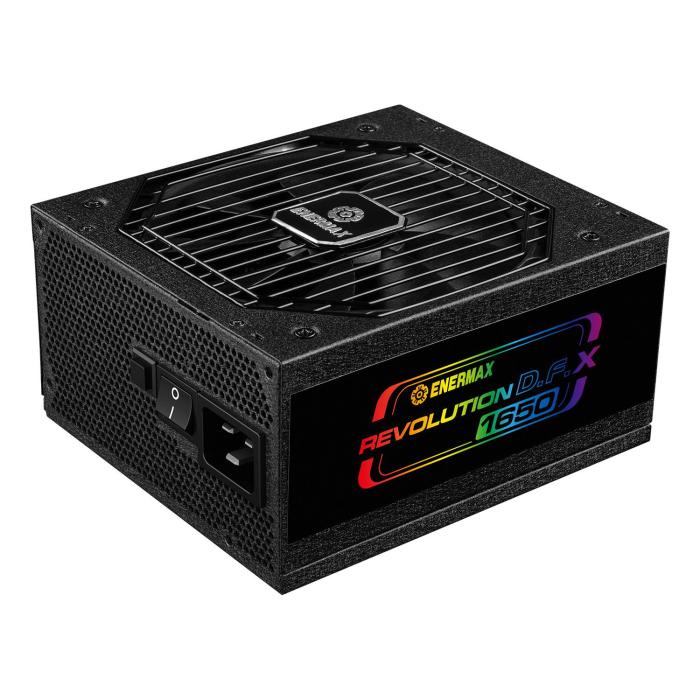

Enermax ERT1650EWT power supply unit with 1650 W total power in ATX format and a 20+4 pin main connector, designed for high-consumption systems. It offers an AC input voltage range of 115-240 V with a frequency of 50/60 Hz, and a maximum output current of 137.5 A on the +12 V rail, along with 25 A for +3.3 V and +5 V. It includes protections against overcurrent, overvoltage, overvoltage, overheating, short circuit, and undervoltage, as well as power cables for the motherboard at 65 cm, CPU at 70 cm, PCI Express at 80 cm, and SATA cables at 450, 600, 750, and 900 mm.
Specifications
Power
- Total power: 1650 W
- AC input voltage: 115 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 15 - 8 A
- Maximum input current (@110V): 15 A
- Maximum input current (@220V): 8 A
- Max output current (+3.3V): 25 A
- Max output current (+12V1): 137.5 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

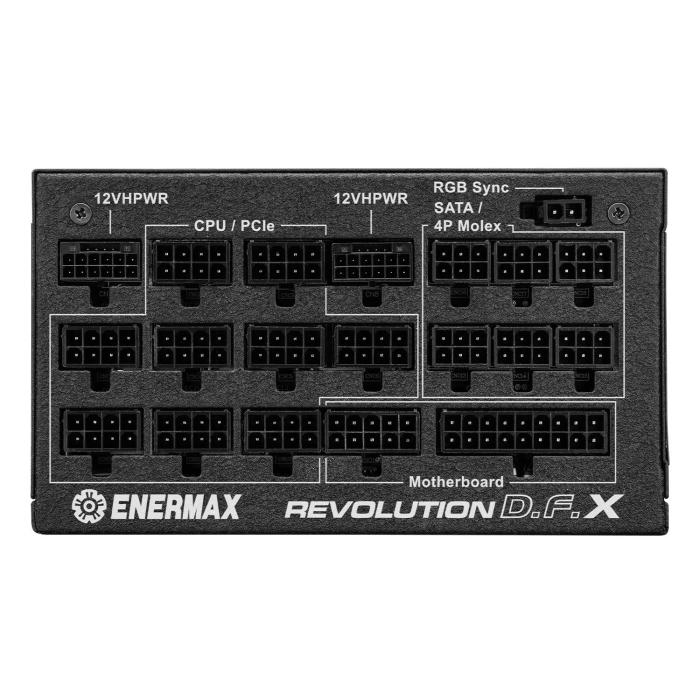

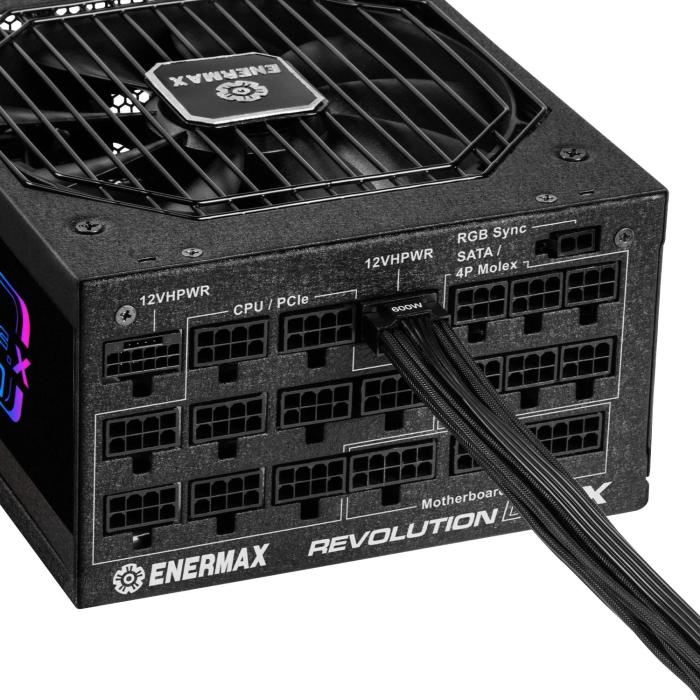

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 65 cm
- Number of SATA power connectors: 12
- SATA power cable length: 450, 600, 750, 900 mm
- Peripheral (Molex) power connectors (4-pin): 6
- Peripheral (Molex) power cable length: 500, 650, 800 mm

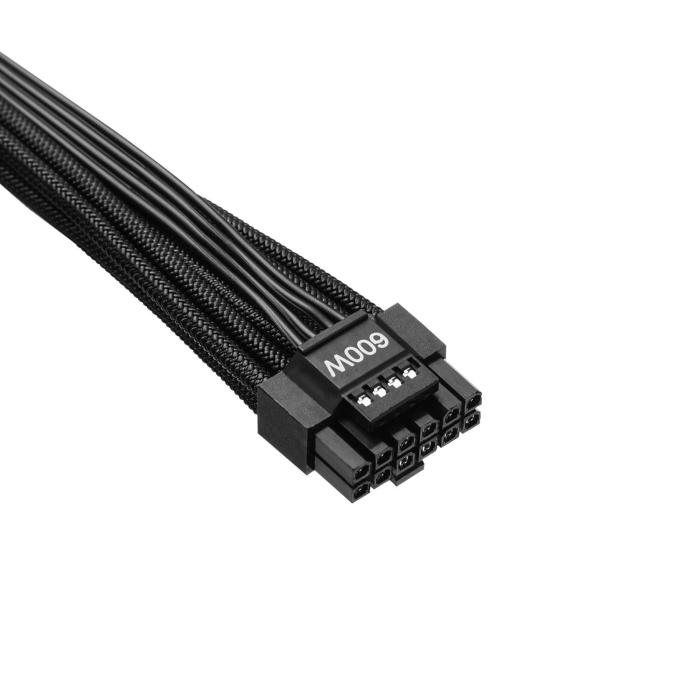

- PCI Express power connectors (6+2 pin): 7
- PCI Express power cable length: 80 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 70 cm
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 10 cm
- PCI Express connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Supported motherboard form factors: ATX
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- Silent mode: Yes
- Noise level: 30 dB
- Bearing technology: DBB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

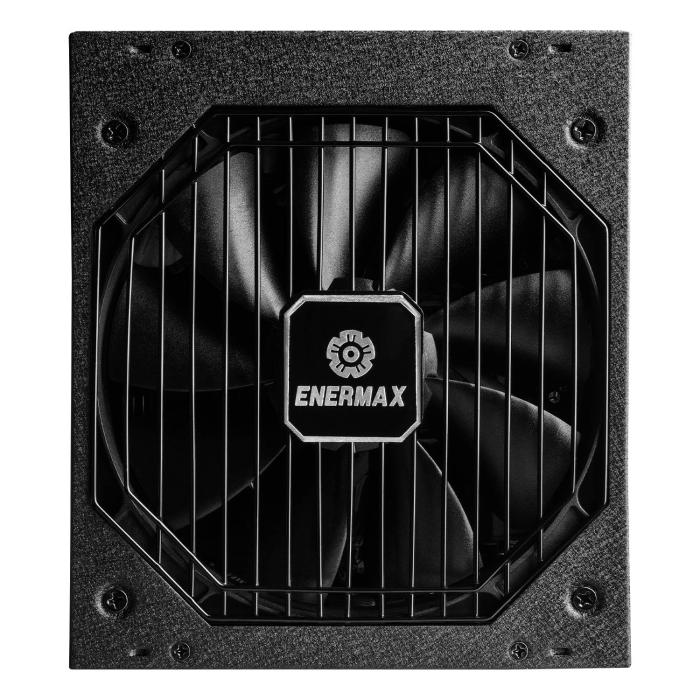

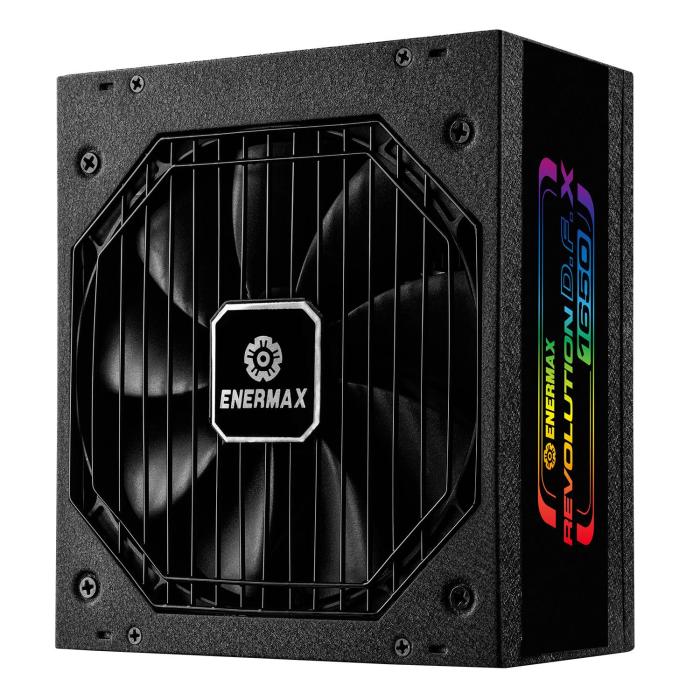

- Fan diameter: 14 cm
- Fan location: Top
- Illumination: Yes

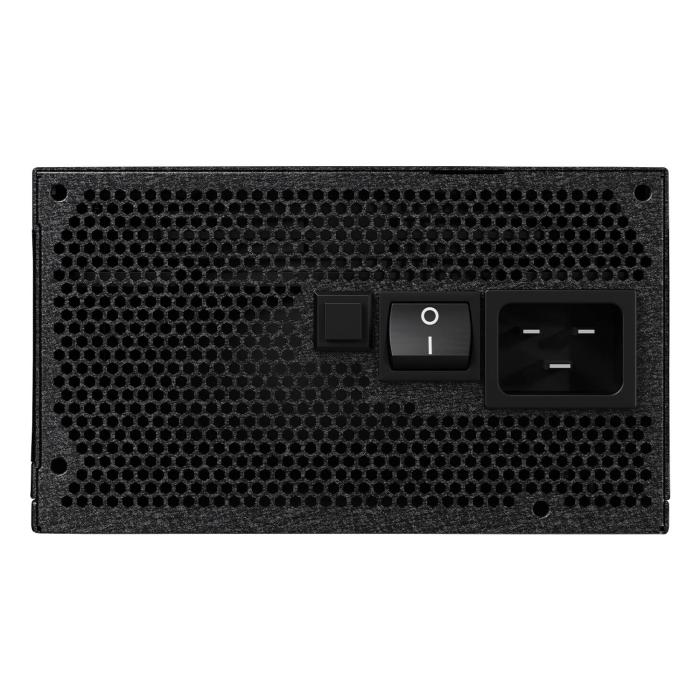

- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content
- Cables included: AC
Weight & dimensions
- Width: 150 mm
- Depth: 170 mm
- Height: 86 mm
Packaging data
- Package width: 210 mm
- Package depth: 360 mm
- Package height: 115 mm
- Package weight: 4.43 kg
- Package type: Box
