Description

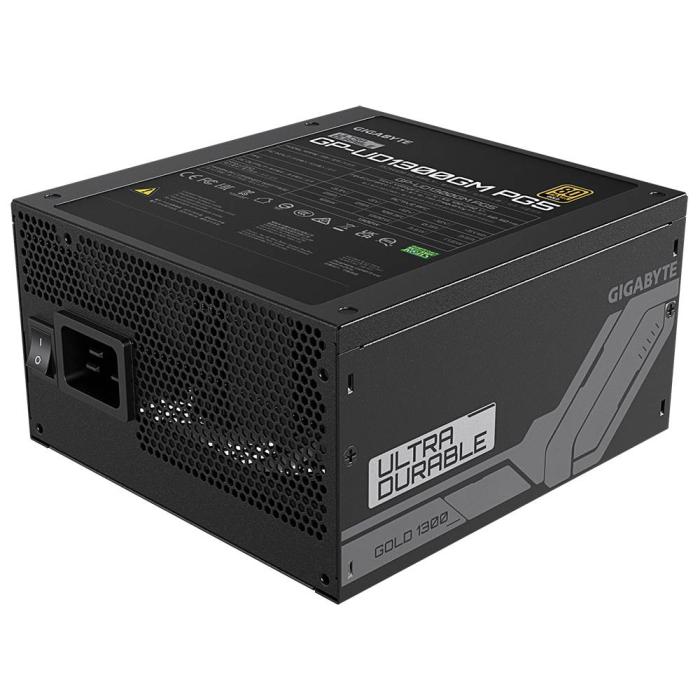

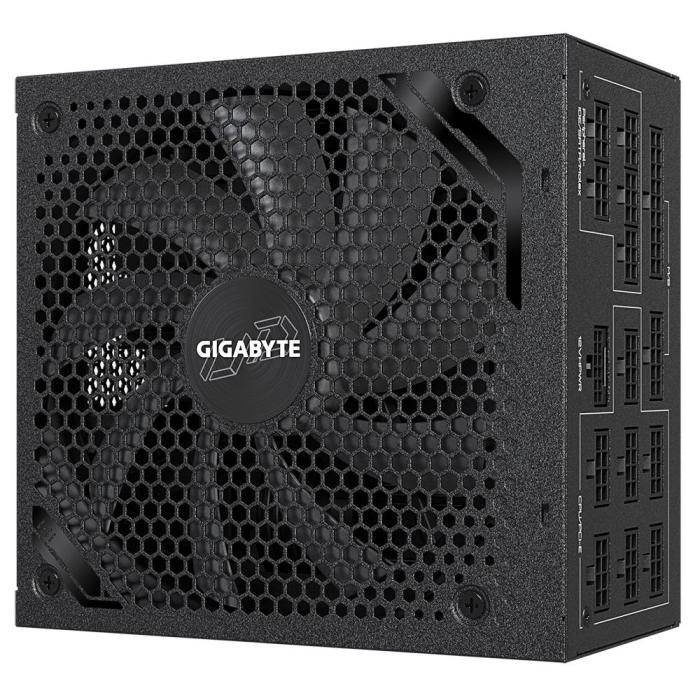

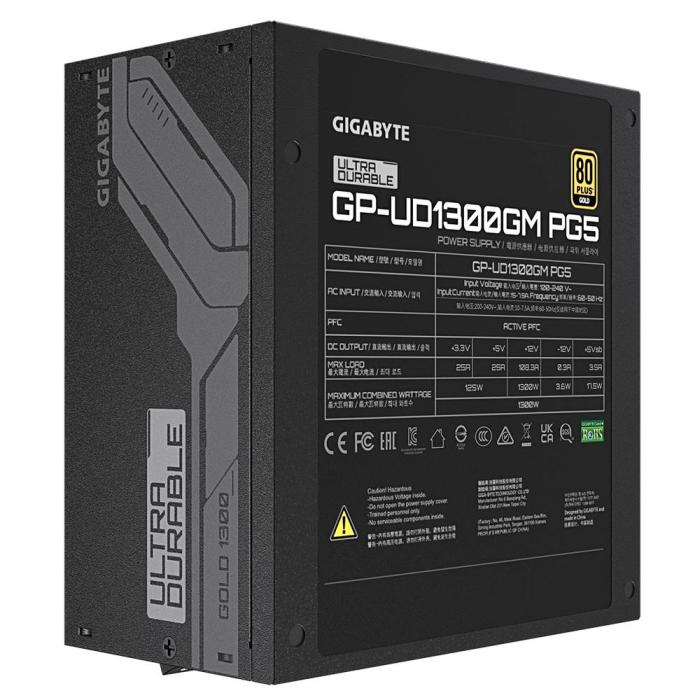

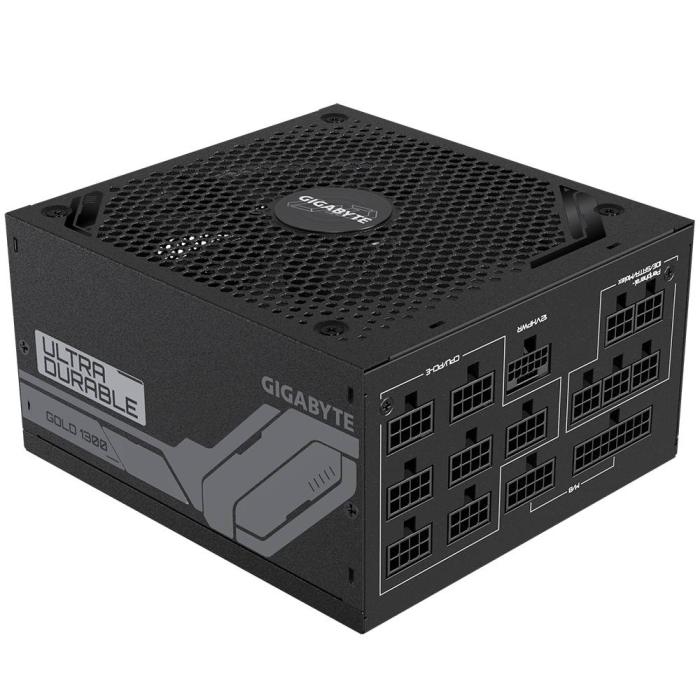

The GIGABYTE UD1300GM PG5 power supply unit in black delivers a total power of 1300 W with a main 20+4 pin connector and ATX form factor, designed for demanding configurations. Its efficiency reaches 90%, while active PFC and power factor correction optimise consumption over an input range of 100-240 V AC with a frequency of 50-60 Hz. It offers maximum output currents of 108.3 A on the +12 V rail, 25 A on +3.3 V and +5 V, plus 3.5 A on +5 Vsb, with combined powers of 125 W for +5 V and +3.3 V, 17.5 W for +5 Vsb and 3.6 W for -12 V. It includes protections against overcurrent, overvoltage, overvoltage, overheating, short circuit and undervoltage, with a hold-up time of 16 ms and an input current of 12-6 A.
Specifications
Power
- Total power: 1300 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 12 - 6 A
- Maximum input current (@110V): 6 A
- Maximum input current (@220V): 12 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 125 W
- Combined power (+12V): 1300 W
- Combined power (+5V): 125 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 17.5 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 108.3 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3.5 A
- Hold time: 16 ms
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

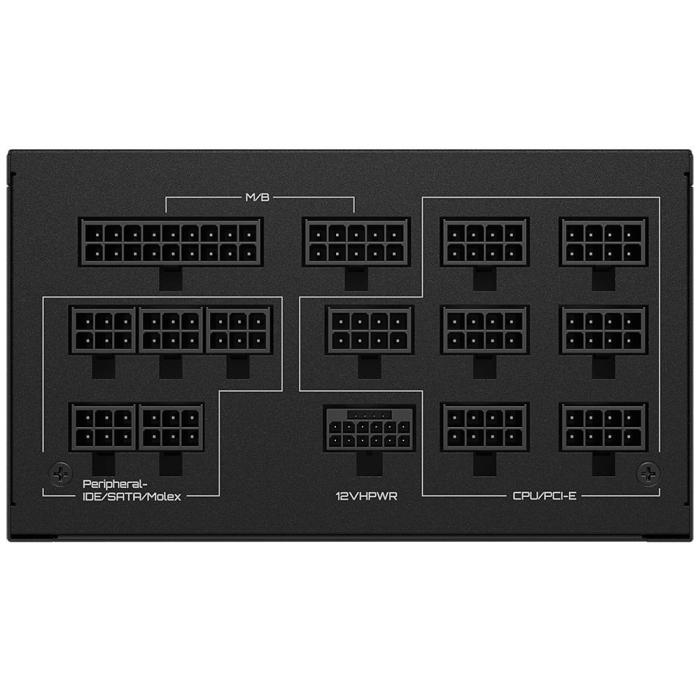

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 8
- Number of PATA power connectors: 3
- SATA power cable length: 150, 600 mm
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 200, 600 mm
- PCI Express power connectors (6+2 pin): 4
- PCI Express power connectors (16-pin): 1
- PCI Express power cable length: 70 cm
- CPU power connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes
- PCI Express connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Noise level: 40 dB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

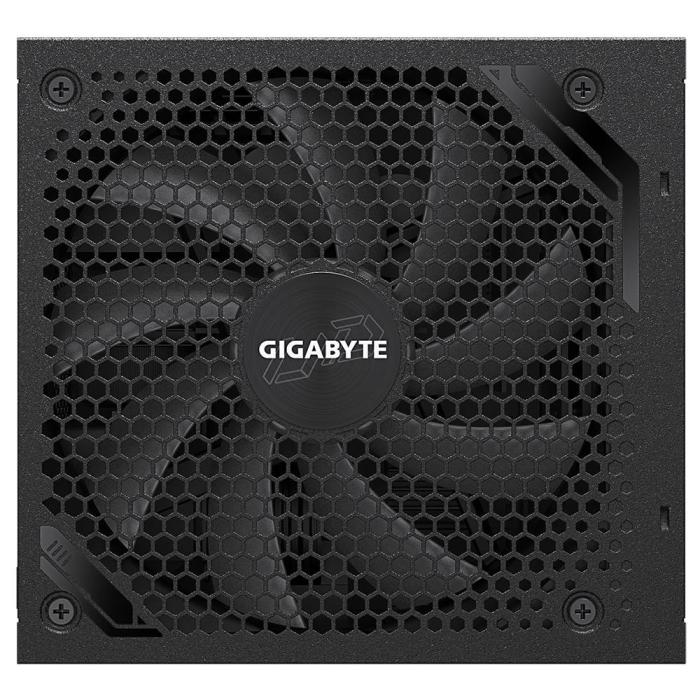

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- Illumination: No
Packaging content
- Cables included: CPU, PATA, Peripheral (Molex), SATA
- Cable tie(s) included: Yes
Certificates
- Compliance certificates: CCC, CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
Packaging data

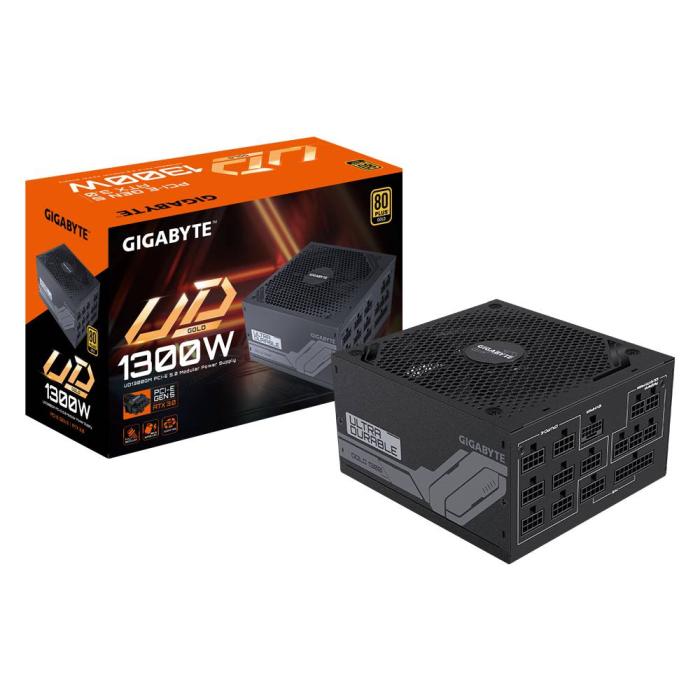

- Package type: Box
Logistics data
- Warranty period: 5 year(s)
