Description

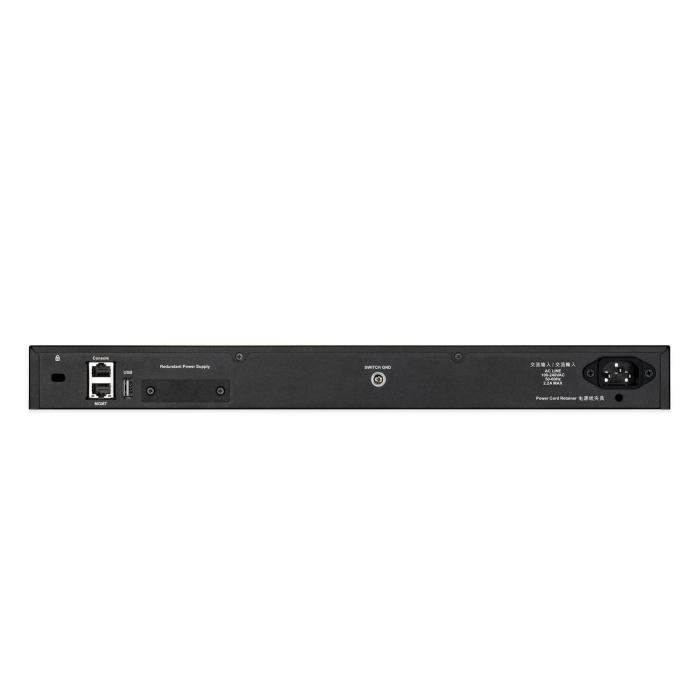

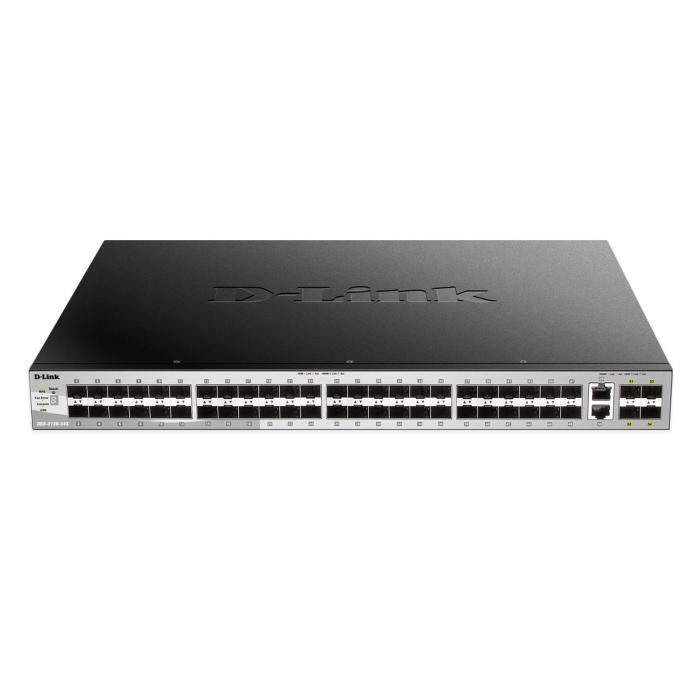

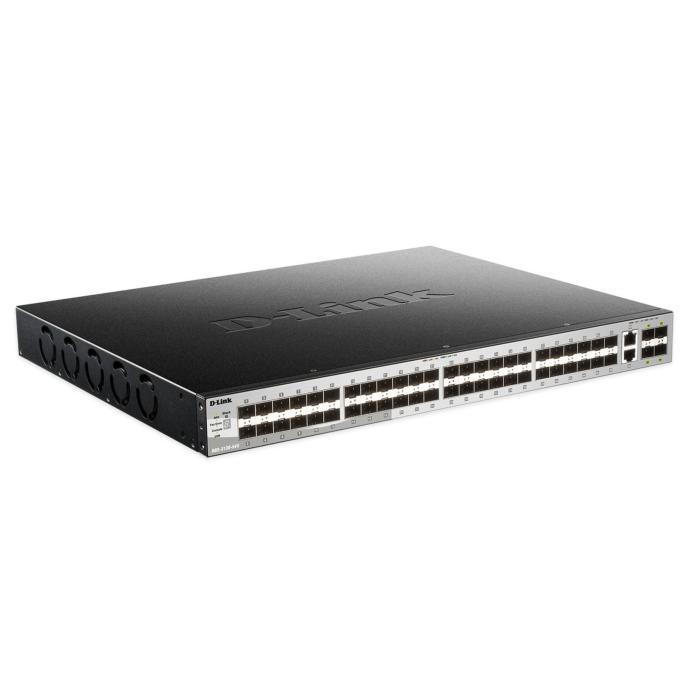

The D-Link DGS-3130-54S managed switch, in black and grey, is an L3 layer device designed for the control and segmentation of demanding networks. It offers 48 SFP module slots and 4 SFP+ module slots for fibre optics, as well as 10G support and 10GBASE-T copper Ethernet cabling technology. It incorporates a USB 2.0 slot and an AC-in power connector for start-up. In the area of administration, it allows web-based management, ARP inspection, system event logging and Quality of Service QoS support. It manages up to 4000 VLANs and supports virtual LAN functions such as port-based VLANs, tagged VLANs, private VLANs, MAC address VLANs and voice VLAN. It also includes Spanning Tree Protocol and flow control to maintain traffic stability. With dimensions of 440 x 44 x 350 mm and a weight of 4.52 kg, it integrates into professional network installations.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 8
Ports & interfaces
- SFP module slots quantity: 48
- SFP+ module slots quantity: 4
- Fiber optic connector: SFP, SFP+
- USB 2.0 ports quantity: 1
- Power connector: AC-in jack
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.
- 10G support: Yes
- Copper ethernet cabling technology: 10GBASE-T
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 4000
Data transmission
- Switching capacity: 216 Gbit/s
- Forwarding rate: 161 Mpps
- MAC address table: 16384 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 4 MB
Security
- DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
- Access Control List (ACL): Yes
- Access Control List (ACL) rules: 2048
- Access Control List (ACL) egress: 512
- Access Control List (ACL) ingress: 2048
- IGMP snooping: Yes
- Security algorithms: SNMP, SNMPv3, SSH-2, SSL/TLS
- SSH/SSL support: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
- Root protection: Yes
- DoS attack prevention: Yes
- Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
- Multicast support: Yes
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- Virtual Router Redundancy Protocol (VRRP): Yes
- Routing protocols: RIP
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Black, Grey
- LED indicators: Yes
- Number of fans: 5 fan(s)
- Safety: CB, cUL, BSMI, CCC
Performance
- Physical stacking (units): 9
- Virtual stacking (units): 32
- Noise level: 54 dB
- Telnet: Yes
- sFlow: Yes
- Mean time between failures (MTBF): 520861 h
Power
- Power source: AC
- Redundant power supply (RPS) support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 131 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 446.99 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 350 mm
- Height: 44 mm
- Weight: 4.52 kg
Packaging content
- Quick start guide: Yes
- Manual: Yes
Packaging data
- Package width: 450 mm
- Package depth: 595 mm
- Package height: 118 mm
- Package weight: 6.32 kg
Technical details
- Shipping (inner) case height: 62.6 cm
- Shipping (inner) case width: 37.4 cm
- Shipping (inner) case length: 46.8 cm
- Shipping (inner) case net weight: 19 kg
- Products per shipping (inner) case: 3 pc(s)
- Pallet gross weight (air): 389.8 kg
- Master (outer) cases per pallet (air): 18 pc(s)
- Products per pallet (air): 54 pc(s)
- Pallet gross length: 102 cm
- Pallet gross width: 122 cm
- Pallet height (air): 2.01 m
- Pallet gross weight (sea): 389.8 kg
- Master (outer) cases per pallet (sea): 18 pc(s)
- Products per pallet (sea): 54 pc(s)
- Pallet height (sea): 2.01 m
- Shipping (inner) case gross weight: 20.7 kg
Certificates
- Certification: FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
Logistics data
- Harmonized System (HS) code: 85176990
