Description

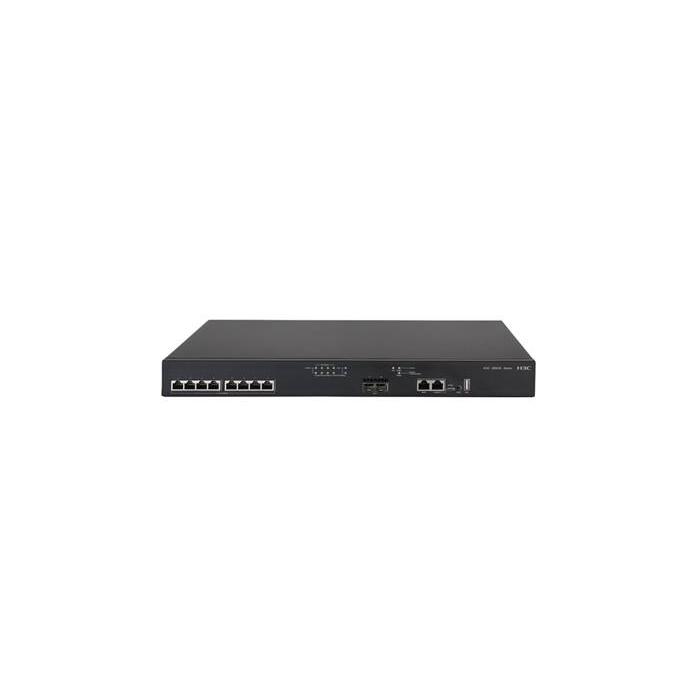

Managed H3C LS-6520X-10XT-SI L3 switch, in 1U form factor and black colour, integrating 8 RJ-45 10G Ethernet ports (100/1000/10000) plus 2 combo SFP ports and 2 SFP+ slots. It offers web-based management, CLI and event logging, along with advanced features such as ARP inspection, traffic classification and QoS support. Its VLAN management covers port-based, tagged, stacked, private and mapping options, and supports IPv4 and IPv6 routing. Link aggregation and half-duplex transmission are included, as well as MAC address auto-learning for flexible integration into corporate networks.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Traffic classification: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- Combo SFP ports quantity: 2
- SFP+ module slots quantity: 2
Network
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 80
- 10G support: Yes
- Port mirroring: Yes
- Full duplex: Yes
- Policy-based routing: Yes
- Half duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s
- Auto-sensing: Yes
- MAC address auto-learning supported: Yes
- IPv4 routes: 16000
- IPv6 routes: 8000
- VLAN support: Yes
- Virtual LAN features: MVRP, Port-based VLAN, Private VLAN, Stacked VLAN, Tagged VLAN, VLAN mapping
- Number of VLANs: 4094
Data transmission
- Switching capacity: 200 Gbit/s
- Forwarding rate: 240 Mpps
- MAC address table: 32768 entries
- Number of queues: 8
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 3 MB
Security
- DHCP features: DHCP Option 82, DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 serve
- Access Control List (ACL): Yes
- Access Control List (ACL) egress: 256
- Access Control List (ACL) ingress: 1024
- IGMP snooping: Yes
- Security algorithms: HTTPS, SNMP, SSH-2, SSL/TLS
- SSH/SSL support: Yes
- BPDU filtering/protection: Yes
- IP-MAC-Port binding: Yes
- Authentication: MAC-based authentication, Port-based authentication
- Password protection: Yes
- Authentication type: AAA, HWTACACS, IEEE 802.1x, RADIUS
- MAC address entries: Blackhole MAC address entries, Static MAC address entries
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: SNMP, Telnet
- GARP VLAN Registration Protocol (GVRP): Yes
- Routing protocols: BGP, IS-IS, MPLS, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2, VRRP
- IPv4 & IPv6 features: ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 Telnet
- IP Source Guard (IPSG): Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
Performance
- Physical stacking (units): 9
- Built-in processor: Yes
- Processor frequency: 1600 MHz
- Memory type: SDRAM
- Internal memory: 2048 MB
- Flash memory: 1024 MB
- Noise level: 60.7 dB
- Mean time between failures (MTBF): 508.644 h
Power
- Power source: AC
- Power supply included: Yes
- Redundant power supply (RPS) support: Yes
- Number of power supply units: 2
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- DC input voltage: 48 - 60 V
- Power consumption (max): 48.3 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 440 mm
- Depth: 360 mm
- Height: 43.6 mm
- Weight: 3.32 kg
Certificates
- Compliance certificates: Electromagnetic Compatibility (EMC)
