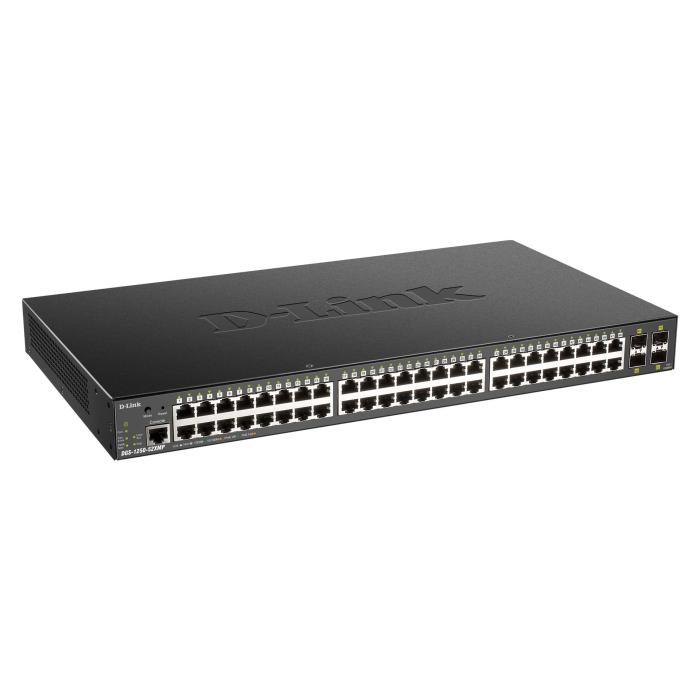

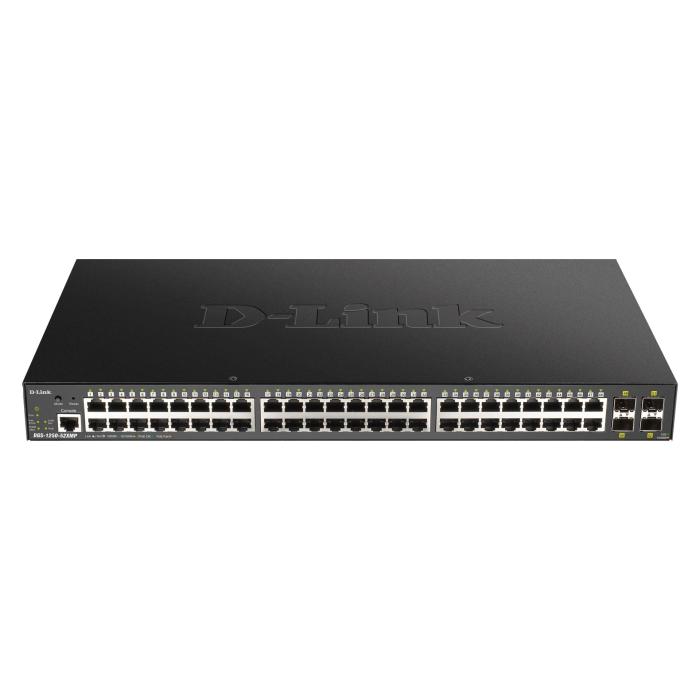

Name: D-Link 48-port Gigabit Smart Managed Switch with 4 x 10G SFP+, 370Watts
Brand: D-LINK
Availability: OutOfStock

D-Link 48-port Gigabit Smart Managed Switch with 4 x 10G SFP+, 370Watts

Not avaliable

D-Link 48-port Gigabit Smart Managed Switch with 4 x 10G SFP+, 370Watts. More info

Amount

Brand: D-LINK

SKU: 82896 PRC: 264091 EAN: 790069443022 PN: DGS-1250-52XMP

Description

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: No
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB support: RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RF

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: No
SFP+ module slots quantity: 4
Console port: RJ-45

Network

VLAN support: Yes
Virtual LAN features: Voice VLAN
Number of VLANs: 4094
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.
10G support: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes

Data transmission

Switching capacity: 176 Gbit/s
Forwarding rate: 130.95 Mpps
MAC address table: 32000 entries
Static route: Yes
Number of static routes: 124
Jumbo frames support: Yes
Jumbo frames: 12000
Packet buffer memory: 16 MB

Security

DHCP features: DHCP client, DHCP server, DHCP snooping
Access Control List (ACL): Yes
Access Control List (ACL) rules: 768
IGMP snooping: Yes
Security algorithms: EAP, LEAP, PEAP, SSH, TTLS
Loop protection: Yes
IP-MAC-Port binding: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes

Design

Rack mounting: Yes
Product colour: Black
LED indicators: Activity, Link, Power, Speed
Electromagnetic compatibility: CE A, VCCI A, FCC A, IC, BSMI

Performance

Memory type: DDR3-SDRAM
Internal memory: 2048 MB
Flash memory: 64 MB
Noise level: 51.2 dB
Mean time between failures (MTBF): 309053.1 h

Power

Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 467.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 48
Power over Ethernet (PoE) power per port: 15.4 W
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 1512.676 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 430 mm
Height: 44 mm
Weight: 3.85 kg

Packaging data

Package width: 393 mm
Package depth: 563 mm
Package height: 89 mm
Package weight: 5.17 kg

Technical details

Shipping (inner) case height: 42.8 cm
Shipping (inner) case width: 47.8 cm
Shipping (inner) case length: 58.5 cm
Shipping (inner) case net weight: 22.9 kg
Products per shipping (inner) case: 5 pc(s)
Pallet gross weight (air): 456.1 kg
Master (outer) cases per pallet (air): 16 pc(s)
Products per pallet (air): 80 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 184.7 cm
Pallet gross weight (sea): 456.1 kg
Master (outer) cases per pallet (sea): 16 pc(s)
Products per pallet (sea): 80 pc(s)
Pallet height (sea): 184.7 cm
Shipping (inner) case gross weight: 27.4 kg

Certificates

Certification: CB, UL, BSMI, CCC

Logistics data

Harmonized System (HS) code: 85176990
