Name: D-Link Gigabit Smart Managed Switches DGS-1100 Series
Brand: D-LINK
Price: 45.7 USD
Availability: InStock

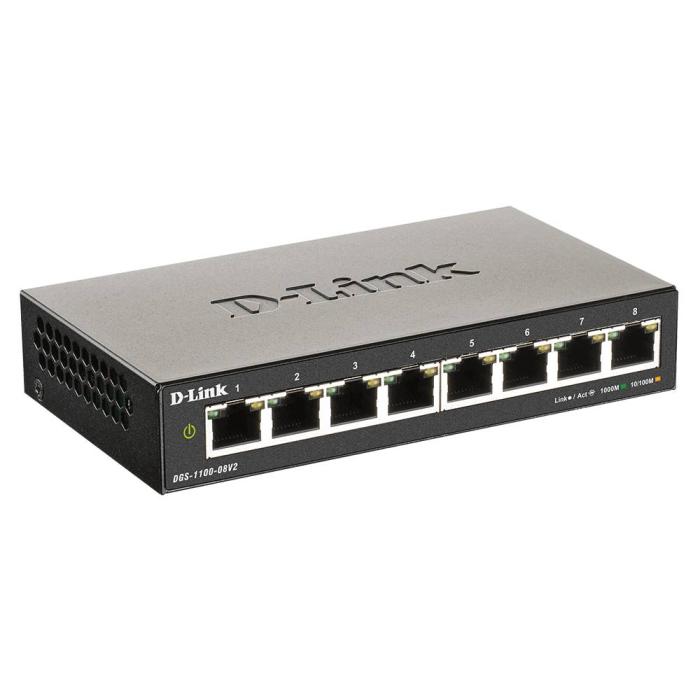

D-Link Gigabit Smart Managed Switches DGS-1100 Series

$45.70

$45.70 without VAT

D-Link Gigabit Smart Managed Switches DGS-1100 Series. More info

Amount

Brand: D-LINK

SKU: 86464 PRC: 304423 EAN: 790069453304 PN: DGS-1100-08V2

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Power connector: DC-in jack

Network

Copper ethernet cabling technology: 1000BASE-T
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support: No
Port mirroring: Yes
Full duplex: Yes
Half duplex: Yes
Flow control support: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Head-of-line (HOL) blocking: Yes
Auto-negotiation: Yes
VLAN support: Yes
Virtual LAN features: Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 4000 entries
Number of queues: 4
Jumbo frames support: Yes
Jumbo frames: 9216
Packet buffer memory: 1.5 MB

Security

IGMP snooping: Yes
IGMP entries: 128
Static port security: Yes
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)

Design

Rack mounting: No
Product colour: Black
Reset button: Yes
Number of fans: 0 fan(s)

Performance

Noise level: 0 dB
Fanless: Yes
Mean time between failures (MTBF): 1456992 h

Power

Power source: DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
DC input voltage: 5 V
Input current: 1 A
Power consumption (max): 4.94 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 2000 m
Heat dissipation: 16.85 BTU/h

Weight & dimensions

Width: 145 mm
Depth: 82 mm
Height: 28 mm
Weight: 340 g

Certificates

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI, cUL

Logistics data

Harmonized System (HS) code: 85176990
