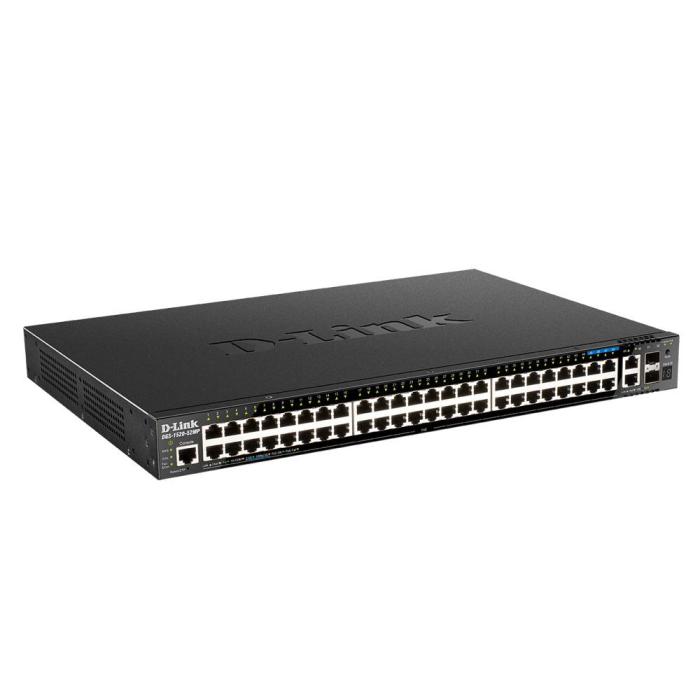

Name: D-Link 48-Port Gigabit Stackable POE+ Smart Managed Switch with 2 x 10GBase-T & 2 x 10G SFP+
Brand: D-LINK
Price: 1757.72 USD
Availability: InStock

D-Link 48-Port Gigabit Stackable POE+ Smart Managed Switch with 2 x 10GBase-T & 2 x 10G SFP+

$1,757.72 ~~$1,944.35~~

$1,757.72 without VAT

D-Link 48-Port Gigabit Stackable POE+ Smart Managed Switch with 2 x 10GBase-T & 2 x 10G SFP+. More info

Amount

Brand: D-LINK

SKU: 86556 PRC: 305475 EAN: 790069454806 PN: DGS-1520-52MP

Description

Specifications

Management features

Switch type: Managed
Switch layer: L3
Web-based management: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 44
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
2.5G Ethernet (copper) ports quantity: 4
10G Ethernet (copper) ports quantity: 2
SFP+ module slots quantity: 2
Fiber ports quantity: 2
Fiber optic connector: SFP+

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 8
10G support: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
Flow control support: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes

Data transmission

Switching capacity: 188 Gbit/s
Forwarding rate: 139.88 Mpps
MAC address table: 16384 entries
Store-and-forward: Yes
Static route: Yes
Jumbo frames support: Yes
Jumbo frames: 12288

Security

Loop protection: Yes
BPDU filtering/protection: Yes
MAC address entries: Static MAC address entries
DHCP features: DHCP snooping
IGMP snooping: Yes

Multicast features

Multicast Listener Discovery (MLD) snooping: v1/v2

Protocols

GARP VLAN Registration Protocol (GVRP): Yes
Routing protocols: OSPF, RIP, RIPng, VRRP

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Black
LED indicators: Activity, Link, Power, Speed

Performance

Physical stacking (units): 8
Virtual stacking (units): 32
Noise level: 56.7 dB
Mean time between failures (MTBF): 328174 h

Power

Power source: AC
AC input voltage: 100 - 240 V
Power consumption (max): 459.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 44
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 1635.1 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 308.5 mm
Height: 44 mm
Weight: 4.8 kg

Certificates

Certification: CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A

Logistics data

Harmonized System (HS) code: 85176990
