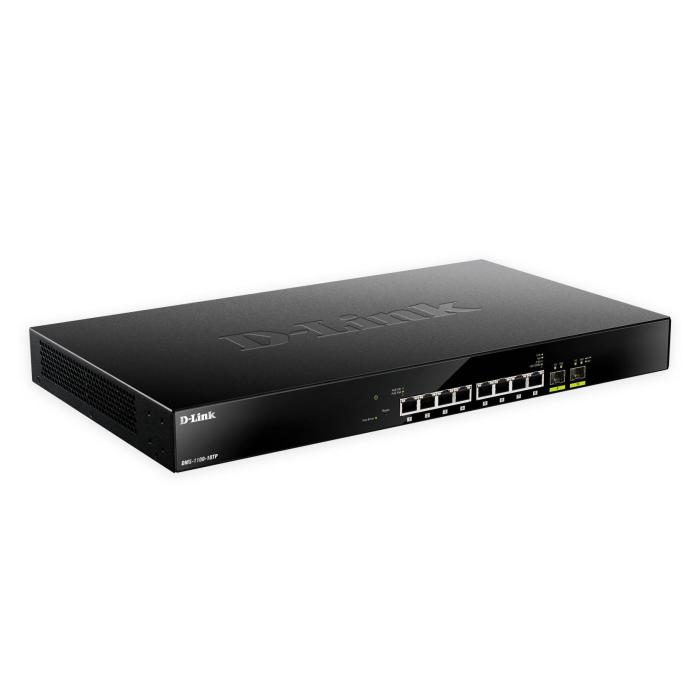

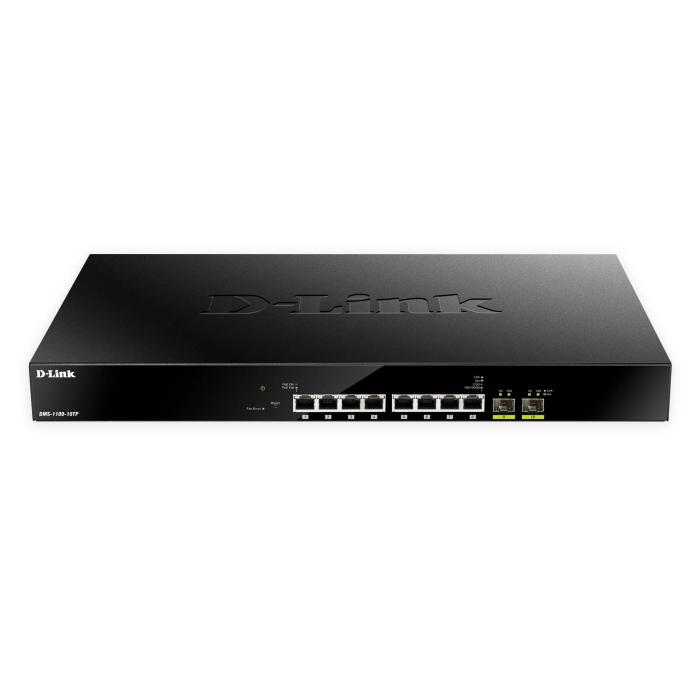

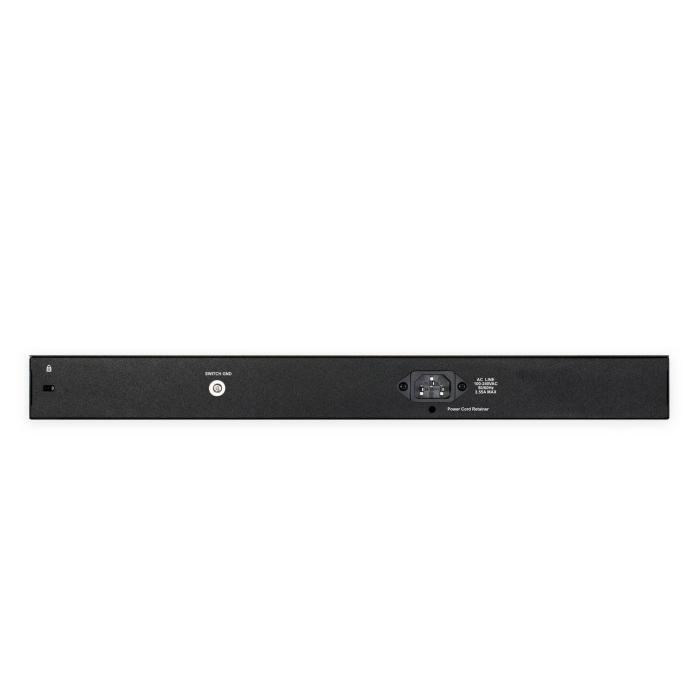

Name: D-Link 10-Port Multi-Gigabit PoE+ Smart Managed Switch
Brand: D-LINK
Price: 752.22 USD
Availability: InStock

D-Link 10-Port Multi-Gigabit PoE+ Smart Managed Switch

$752.22

$752.22 without VAT

D-Link 10-Port Multi-Gigabit PoE+ Smart Managed Switch. More info

Amount

Brand: D-LINK

SKU: 88692 PRC: 328857 EAN: 790069437168 PN: DMS-1100-10TP

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
System event log: Yes
MIB support: RFC768 UDP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC826 ARP, RFC1213 MIB II, RFC768 UDP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC8

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity: 2

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE
10G support: Yes
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T
Cable types supported: Cat5e
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Ethernet Ring Protection Switching (ERPS): Yes
VLAN support: Yes
Virtual LAN features: Voice VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs: 4094

Optical fiber

Fiber ethernet cabling technology: 1000BASE-X

Data transmission

Switching capacity: 80 Gbit/s
Throughput: 59.52 Mpps
MAC address table: 16000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 9216

Security

DHCP features: DHCP client
IGMP snooping: Yes
IGMP entries: 192
Security algorithms: SNMP, SSL/TLS
DoS attack prevention: Yes
Queue scheduling algorithms: Strict Priority Queue (SPQ), Deficit weighted round robin (DWRR), Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes
MLD entries: 192

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Activity, Fan fail, Link, PoE, Power, Speed
Number of fans: 1 fan(s)
Safety: cUL, CB, CE, CCC, BSMI

Performance

Maximum cable length: 100 m
Mean time between failures (MTBF): 676329 h

Power

AC input voltage: 100 - 240 V
Power consumption (max): 293.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 240 W

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 440 mm
Depth: 250 mm
Height: 44 mm
Weight: 3.43 kg

Certificates

Certification: CE, FCC, C-Tick, VCCI, BSMI, CCC

Logistics data

Harmonized System (HS) code: 85176990
