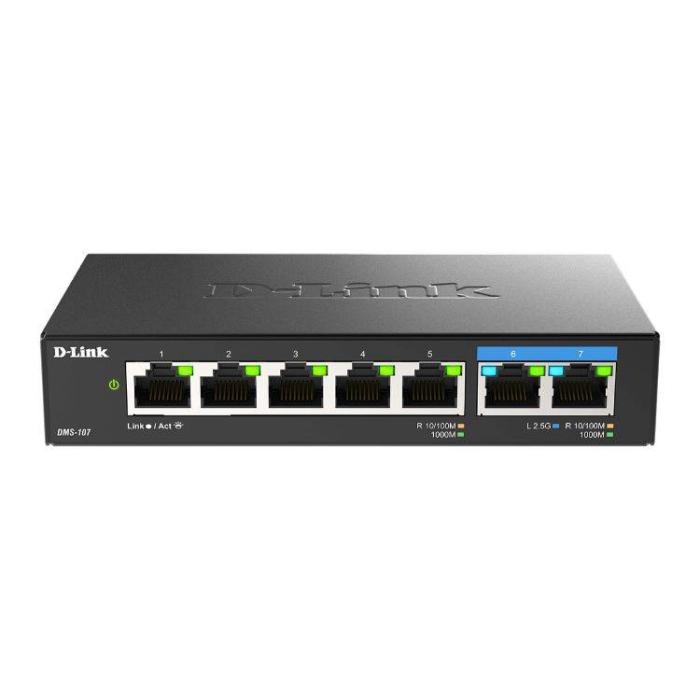

D-Link 7-Port Multi-Gigabit Unmanaged Switch

$113.31

$113.31 without VAT

D-Link 7-Port Multi-Gigabit Unmanaged Switch. More info

Amount

Brand: D-LINK

SKU: 98294 PRC: 426384 EAN: 790069470240 PN: DMS-107

Description

Specifications

Management features

Switch type: Unmanaged
Quality of Service (QoS) support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
2.5G Ethernet (copper) ports quantity: 2

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
MAC address auto-learning supported: Yes

Data transmission

Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 2000 entries
Store-and-forward: Yes
Number of queues: 8
Packet buffer memory: 2 MB

Design

Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power

Performance

Fanless: Yes
Mean time between failures (MTBF): 944277.78 h

Power

Power source: DC
DC input voltage: 12 V
Input current: 0.5 A
Power consumption (typical): 3.37 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 14.28 BTU/h

Weight & dimensions

Width: 145 mm
Depth: 28 mm
Height: 82 mm
Weight: 295.2 g

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: BSMI, CE, Low Voltage Directive (LVD), RoHS
