Description

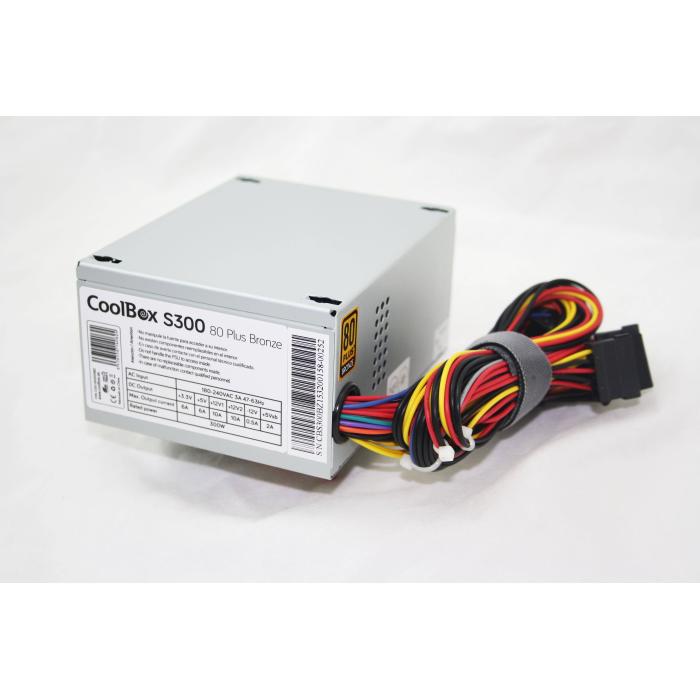

The 300 W CoolBox SFX power supply unit, with 80+ Bronze certification, is designed for compact systems requiring a reduced form factor. Its SFX form factor and dimensions of 125 x 62 x 100 mm (width x height x depth) make it easy to install in small cases, with a weight of 593 g and silver colour. It supports an AC input voltage of 180 to 240 V and an input frequency of 47 to 63 Hz. It offers a total power of 300 W distributed across its various rails: 10 A on +12 V1, 10 A on +12 V2, 6 A on +3.3V, 6 A on +5V, 2 A on +5Vsb and 0.5 A on -12V. It incorporates protection functions against overcurrent, overvoltage and short circuit. As for connectivity, it includes a 20+4 pin ATX motherboard power connector, a 4-pin CPU P4 connector, three SATA power connectors, a 4-pin Molex peripheral connector and a floppy drive connector. Its non-modular cabling keeps the cables fixed.
Specifications
Power
- Total power: 300 W
- AC input voltage: 180 - 240 V
- AC input frequency: 47 - 63 Hz
- Max output current (+3.3V): 6 A
- Max output current (+12V1): 10 A
- Max output current (+12V2): 10 A
- Max output current (+5V): 6 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 2 A
- Power protection features: Over current, Over voltage, Short circuit
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 3
- Peripheral (Molex) power connectors (4-pin): 1
- CPU P4 connector (4-pin): 1
- ATX power connector (20+4 pin): Yes
- Floppy disk drive connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Silver
- Fan diameter: 8 cm
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 85%
Weight & dimensions
- Width: 125 mm
- Depth: 100 mm
- Height: 62 mm
- Weight: 593 g
