Description

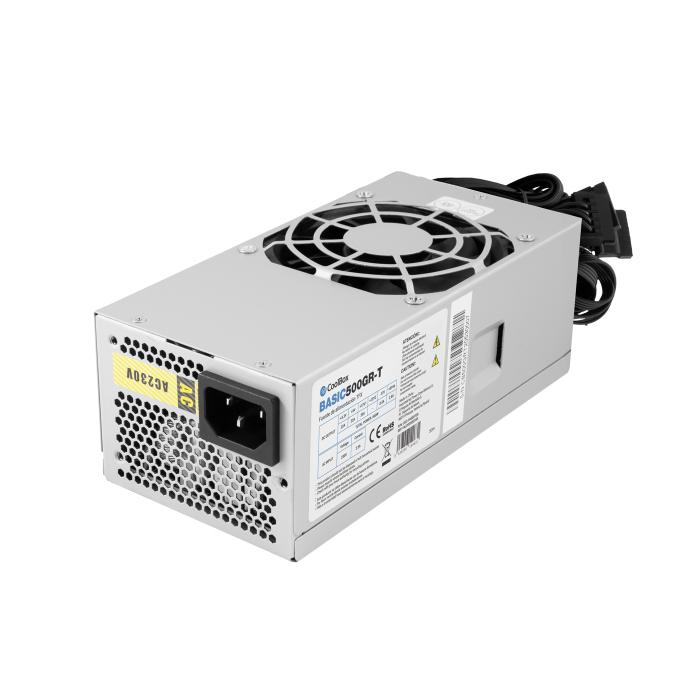

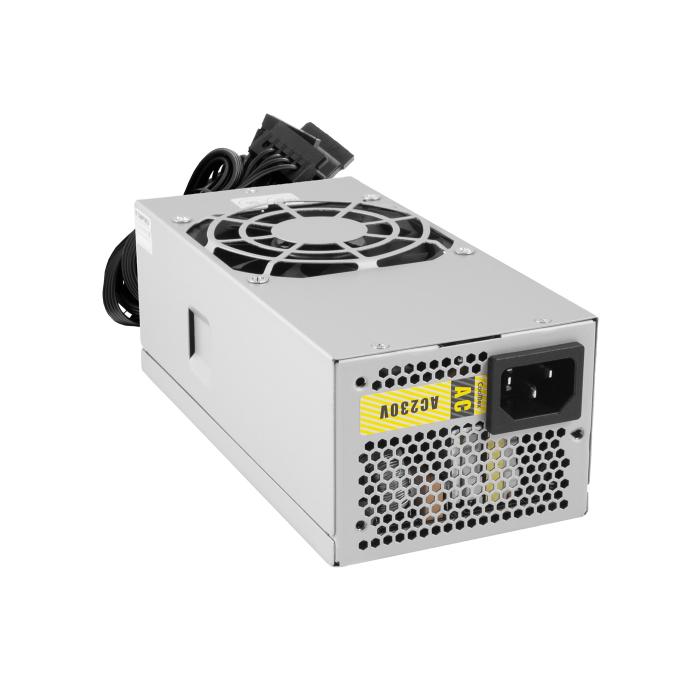

The CoolBox TFX Basic is a 500 W power supply unit with non-modular cabling and TFX form factor, measuring 85 x 65 x 175 mm (width x height x depth) and weighing 750 g, in grey. It operates with a 230 V input at 50 Hz and a consumption of 2.5 A, and distributes power across its different rails: 26 A on the +12 V output, 22 A on the +3.3 V rail and also 22 A on the +5 V rail, plus 2.5 A on the +5 Vsb rail and 0.5 A on the -12 V rail. It incorporates overcurrent, overvoltage and short circuit protections, so the equipment is covered against common mains incidents. As for connectors, it includes one 20+4 pin ATX motherboard power connector, one 4-pin P4 CPU connector, three SATA power connectors, one floppy power connector and one 4-pin Molex peripheral connector. With this distribution you can power the motherboard, the processor and several drives or peripherals without resorting to adapters.
Specifications
Power
- Total power: 500 W
- AC input voltage: 230 V
- AC input frequency: 50 Hz
- Input current: 2.5 A
- Max output current (+3.3V): 22 A
- Max output current (+12V1): 26 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 2.5 A
- Power protection features: Over current, Over voltage, Short circuit
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 3
- Peripheral (Molex) power connectors (4-pin): 1
- CPU P4 connector (4-pin): 1
- ATX power connector (20+4 pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Cabling type: Non-Modular
Performance
- Purpose: PC
- Power supply unit (PSU) form factor: TFX
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Grey
- Cooling type: Active
- Fan diameter: 8 cm
- Fan location: Top
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 85%
Weight & dimensions
- Width: 85 mm
- Depth: 175 mm
- Height: 65 mm
- Weight: 750 g
Packaging data
- Manual: Yes
