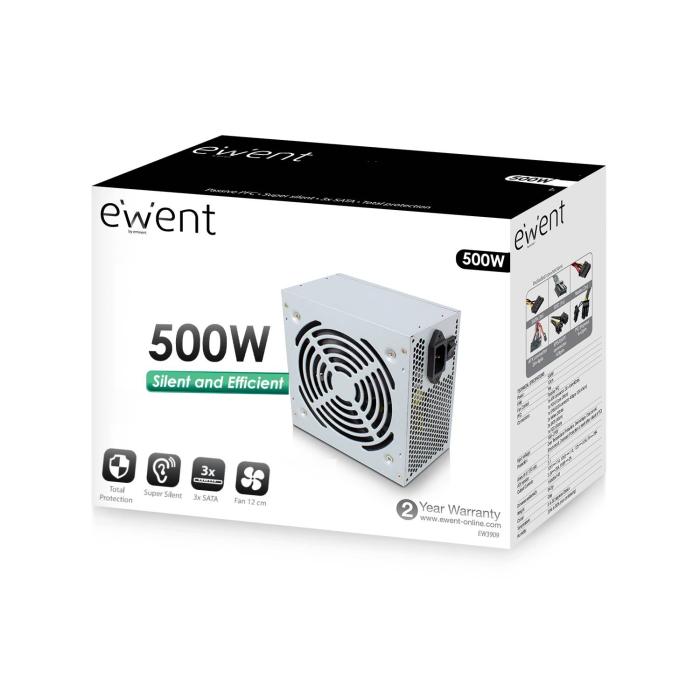

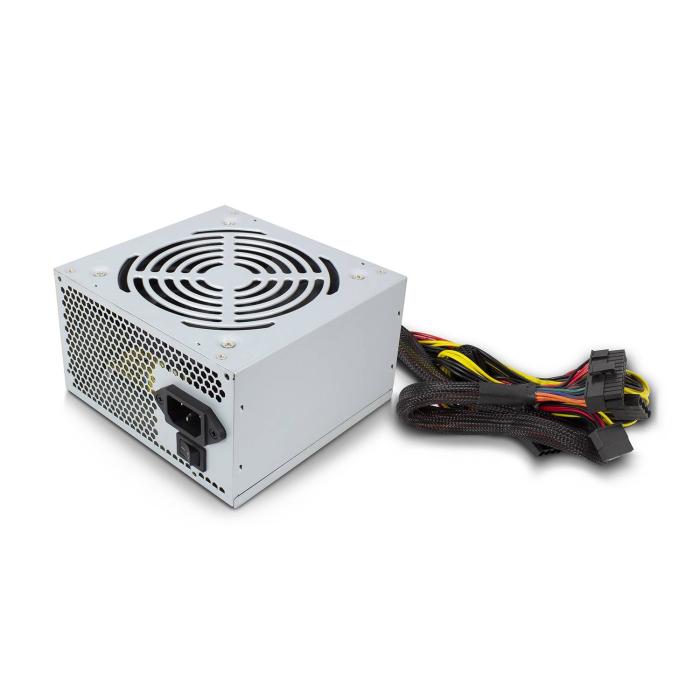

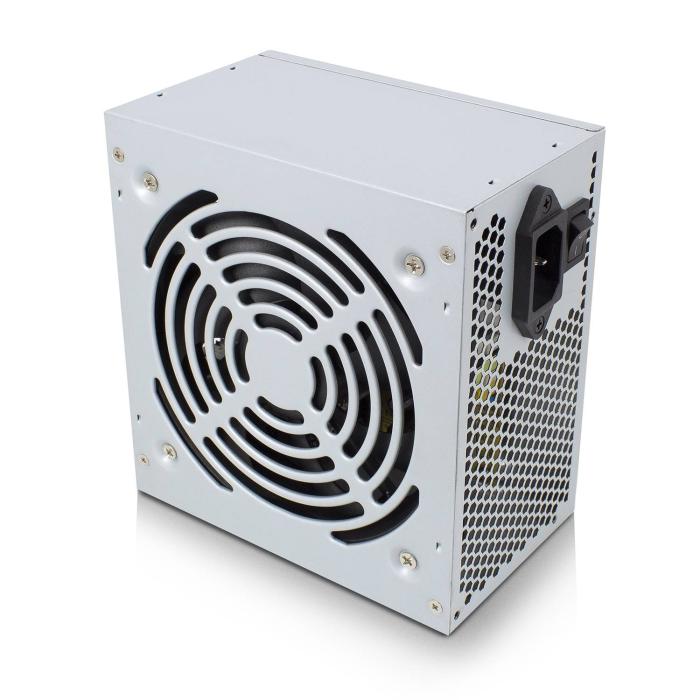

Ewent EW3909 power supply unit 500 W 20+4 pin ATX ATX Grey

$21.90
$21.90 without VAT

More info

Brand: EWENT
SKU: 84520 PRC: 285395 EAN: 8054392617331 PN: EW3909

Description

Ewent EW3909, 500 W, 160 - 270 V, 6 A, 10 A, 0.5 A, 10 A

Specifications

Power

  • Total power: 500 W
  • AC input voltage: 160 - 270 V
  • Max output current (+3.3V): 6 A
  • Max output current (+12V1): 10 A
  • Max output current (+12V2): 0.5 A
  • Max output current (+5V): 10 A
  • Max output current (+5Vsb): 2 A
  • Power protection features: Over current, Over voltage, Overload, Short circuit

Ports & interfaces

  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 40 cm
  • Number of SATA power connectors: 3
  • SATA power cable length: 400 mm
  • Peripheral (Molex) power connectors (4-pin): 3
  • Peripheral (Molex) power cable length: 300 mm
  • CPU P4 connector (4-pin): 1
  • CPU power cable length: 35 cm
  • ATX power connector (20+4 pin): Yes
  • Floppy drive power connector: 1
  • Floppy disk drive connector: Yes
  • Floppy disk drive cable length: 30 cm
  • Cabling type: Non-Modular

Performance

  • 80 PLUS certification: No
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 2.31

Design

  • Product colour: Grey
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • On/off switch: Yes

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Operating relative humidity (H-H): 20 - 80%

Certificates

  • Compliance certificates: CE, REACH
  • Certification: IEC62321:2013 EN 55032:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010+A1:2015 EN 60950-1:2006+A11:2009+A1:2010+A12:2011+

Weight & dimensions

  • Width: 150 mm
  • Depth: 140 mm
  • Height: 85 mm
  • Weight: 1.02 kg

Packaging data

  • Package width: 215 mm
  • Package depth: 167 mm
  • Package height: 93 mm
  • Package weight: 1.02 kg
  • Package type: Box

Technical details

  • Sustainability compliance: Yes
