UNYKAch SFX 450W power supply unit 20+4 pin ATX Silver

Return

Few units

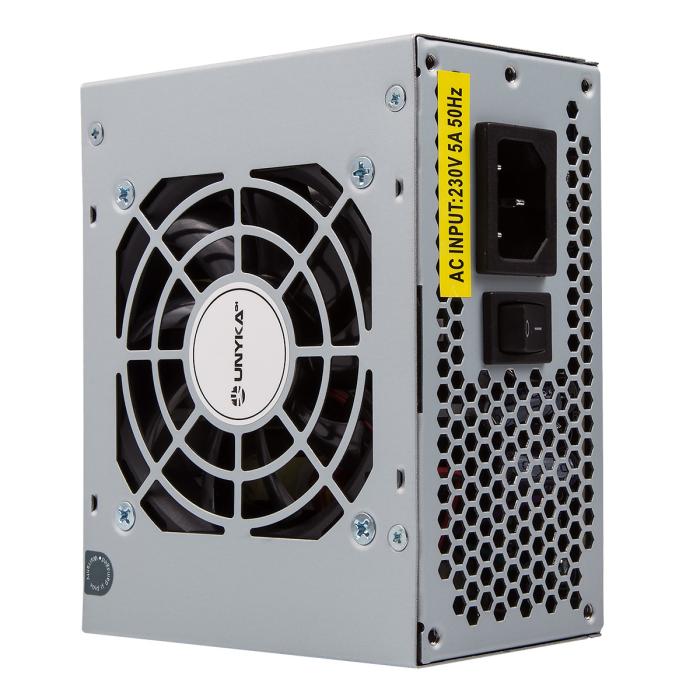

Product 1 image

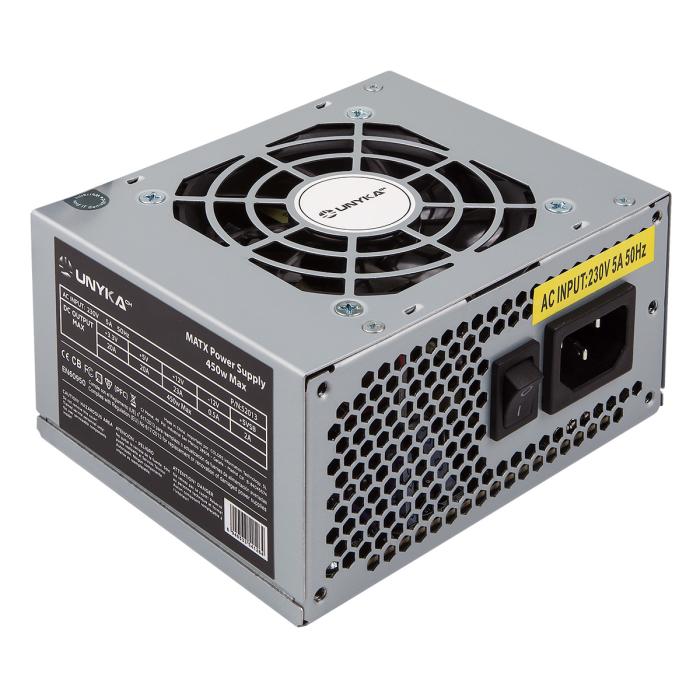

Product 2 image

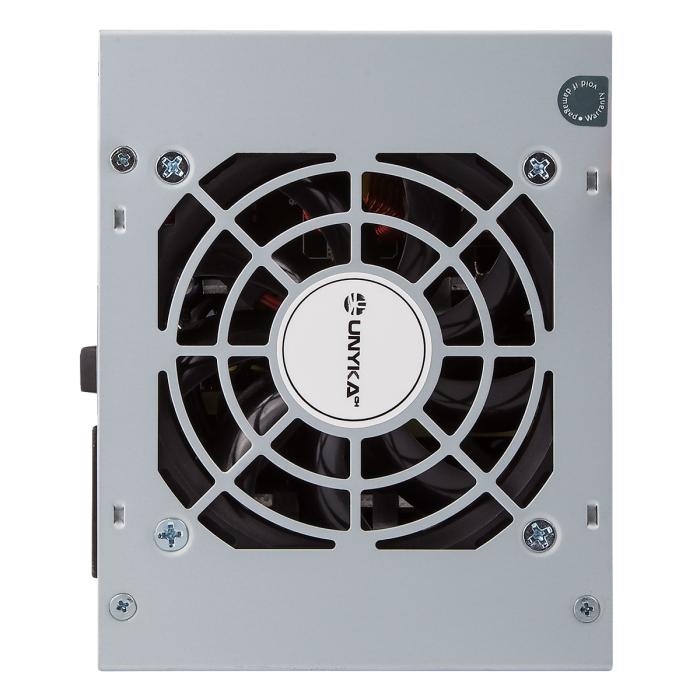

Product 3 image

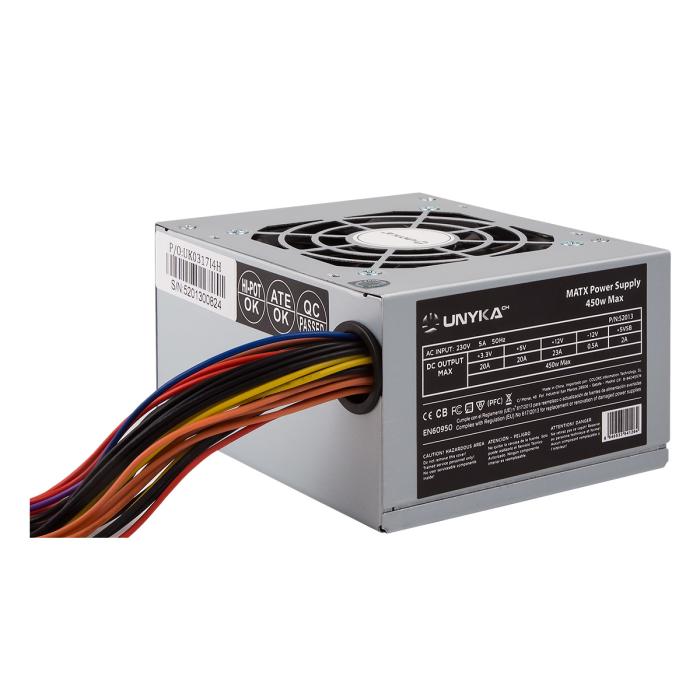

Product 4 image

UNYKAch SFX 450W power supply unit 20+4 pin ATX Silver

$17.14

$17.14 without VAT

UNYKAch SFX 450W power supply unit 20+4 pin ATX Silver. More info

Amount

Brand: UNYKACH

SKU: 76688 PRC: 113270 EAN: 6940533541264 PN: 52017

Description

Specifications

Power

AC input voltage: 230 V
AC input frequency: 50 - 60 Hz
Max output current (+3.3V): 20 A
Max output current (+12V1): 23 A
Max output current (+5V): 20 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2 A
Efficiency: 78%
Power protection features: Over power, Over voltage, Overcharge, Overheating, Overload, Short circuit, Under voltage
Total power: 450 W

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 32 cm
Number of SATA power connectors: 2
SATA power cable length: 330, 480 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 330, 480 mm
CPU P4 connector (4-pin): 1
CPU power cable length: 43 cm
ATX power connector (20+4 pin): Yes
Cabling type: Non-Modular

Performance

Purpose: PC/Server
Power supply unit (PSU) form factor: SFX
Noise level: 28 dB

Design

Product colour: Silver
Cooling type: Active
Fan diameter: 8 cm
Number of fans: 1 fan(s)
On/off switch: Yes

Certificates

Compliance certificates: RoHS
Certification: EUP 2013 / EN60950 / TÜV / CE

Weight & dimensions

Width: 125 mm
Depth: 100 mm
Height: 65 mm
Weight: 558 g

Packaging data

Package width: 155 mm
Package depth: 130 mm
Package height: 75 mm
Package weight: 718 g
Package type: Box

Other features

Package volume: 0.0015 cm³
