Description
Sharkoon SilentStorm SFX Bronze power supply unit, 450 W, SFX format and black finish, designed for compact systems without compromising stable performance. It offers a 20+4 pin ATX main connector and a 4+4 pin CPU connector, with a combined power of 432 W on the +12 V rail and a maximum output current of 36 A. It includes protections against overvoltage, surge, short circuit and undervoltage, as well as an input range of 100-240 V AC with a frequency of 50-60 Hz and an input current of 7 A. Its outputs include +3.3 V (21 A, 120 W), +5 V (22 A, 120 W), +5Vsb (3 A, 15 W) and -12 V (0.5 A, 6 W), suitable for powering low-consumption configurations.
Specifications
Power
- Total power: 450 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 7 A
- Maximum input current (@110V): +12V,+3.3V,+5V,+5Vsb,-12V
- Combined power (+3.3V): 120 W
- Combined power (+12V): 432 W
- Combined power (+5V): 120 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 21 A
- Max output current (+12V): 36 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over power, Over voltage, Short circuit, Under voltage

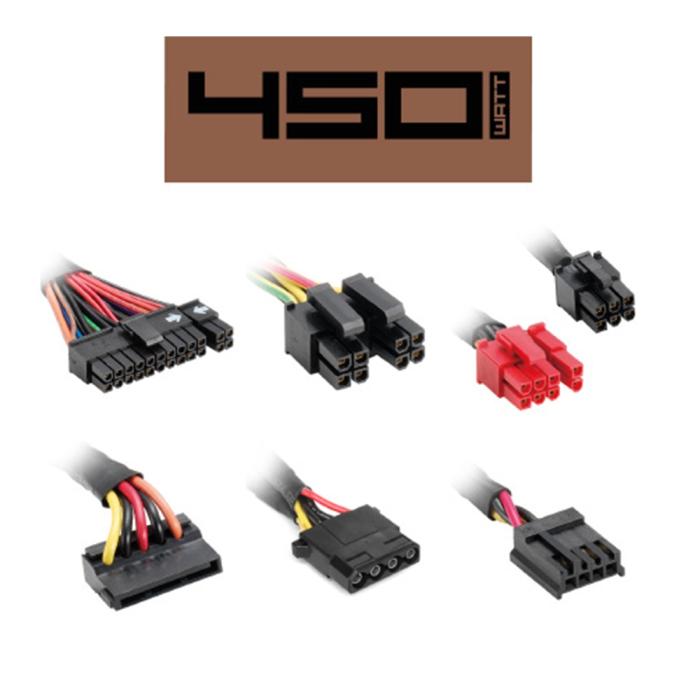

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 3
- Peripheral (Molex) power connectors (4-pin): 2
- PCI Express power connectors (6-pin): 1
- PCI Express power connectors (6+2 pin): 1
- CPU power connector (4+4 pin): Yes
- Floppy disk drive connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 8 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Weight & dimensions
- Width: 100 mm
- Depth: 125 mm
- Height: 63 mm
Packaging data
- Manual: Yes
- Package width: 230 mm
- Package depth: 190 mm
- Package height: 80 mm
- Package weight: 1.5 kg
Logistics data
- Harmonized System (HS) code: 84733020
Other features
- Housing colour: Black
