TooQ TQAPOLO-700SP power supply unit 700 W 20+4 pin ATX ATX Black

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Product 6 image

Product 7 image

TooQ TQAPOLO-700SP power supply unit 700 W 20+4 pin ATX ATX Black

41.00 €

33.88 € without VAT

Amount

Brand: TOOQ

SKU: 90650 PRC: 346977 EAN: 8433281010307 PN: TQAPOLO-700SP

Description

TooQ TQAPOLO-700SP, 700 W, 220 V, 50 - 60 Hz, 2.5 - 5 A, Active, 30 A

Specifications

Power

Total power: 700 W
AC input voltage: 220 V
AC input frequency: 50 - 60 Hz
Input current: 2.5 - 5 A
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 30 A
Max output current (+12V1): 20 A
Max output current (+12V2): 20 A
Max output current (+5V): 30 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

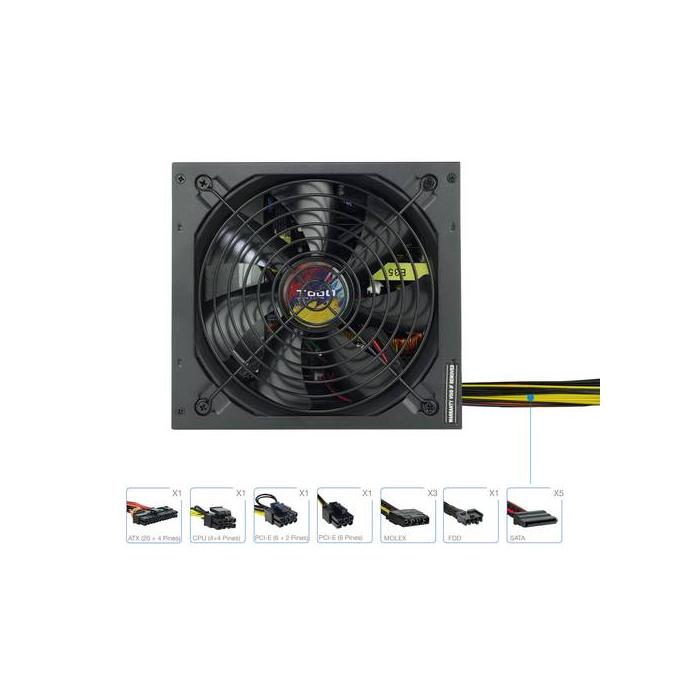

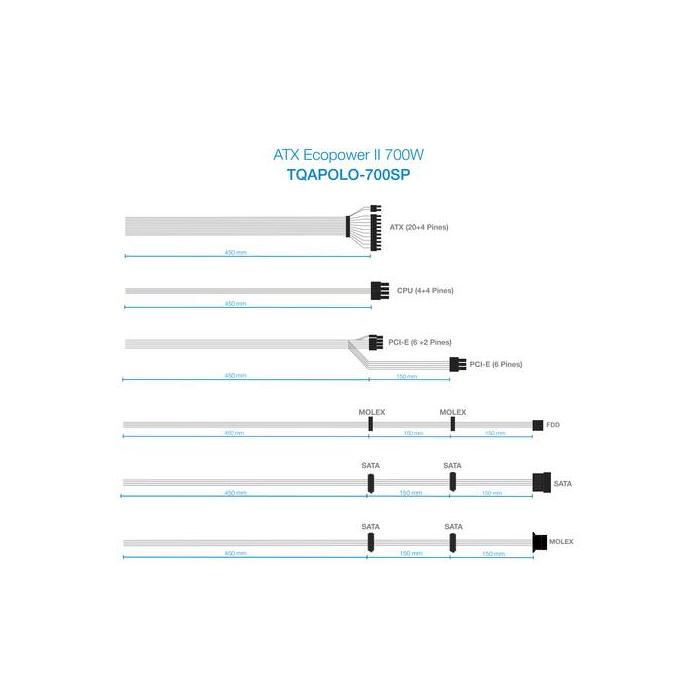

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 45 cm
Number of SATA power connectors: 5
SATA power cable length: 700 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 750 mm
PCI Express power connectors (6-pin): 1
PCI Express power connectors (6+2 pin): 1
PCI Express power cable length: 60 cm
CPU P4 connector (4-pin): 1
CPU power connector (4+4 pin): Yes
CPU power cable length: 45 cm
ATX power connector (20+4 pin): Yes
Floppy drive power connector: 1
Floppy disk drive connector: Yes
Floppy disk drive cable length: 75 cm
PCI Express connector: Yes
Cabling type: Non-Modular

Performance

80 PLUS certification: No
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Mean time between failures (MTBF): 10000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Packaging content

Cables included: AC

Certificates

Compliance certificates: CE, RoHS

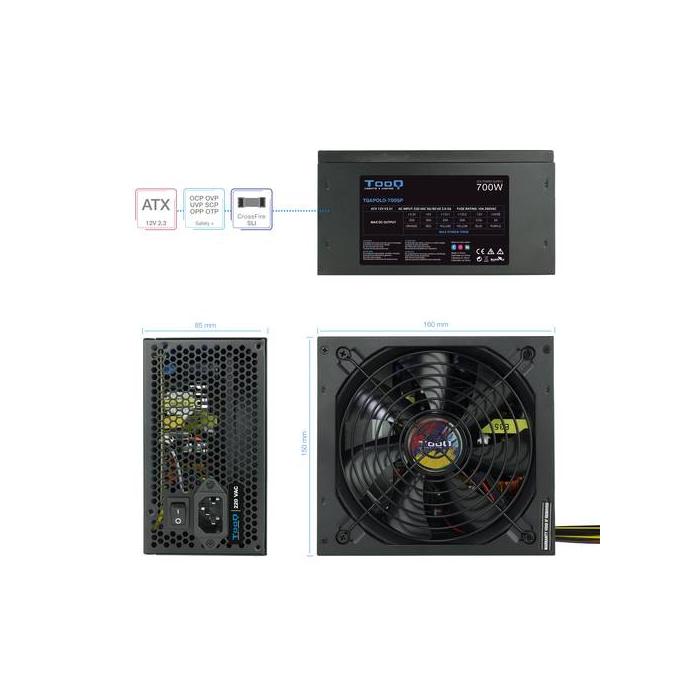

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 85 mm

Packaging data

Manual: Yes
Package width: 256 mm
Package depth: 172 mm
Package height: 102 mm
Package type: Box

Other features

Screws included: Yes
Number of screws: 5
