Description

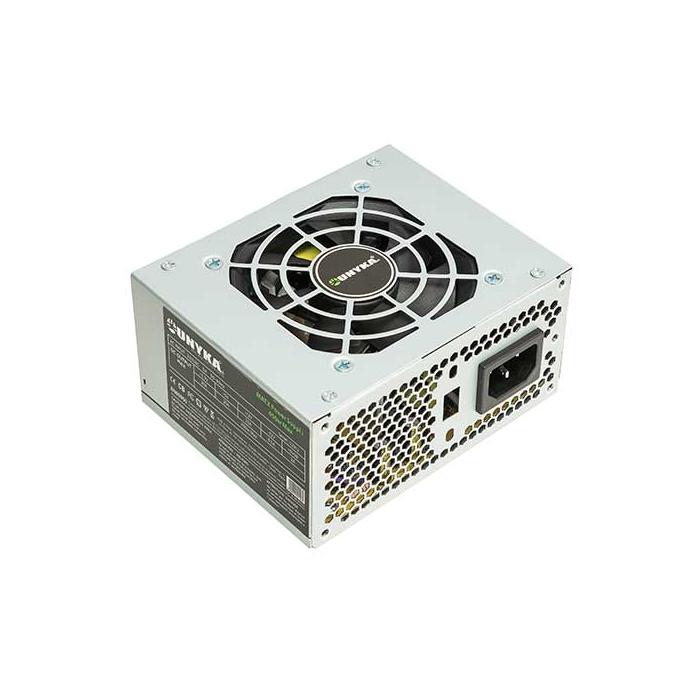

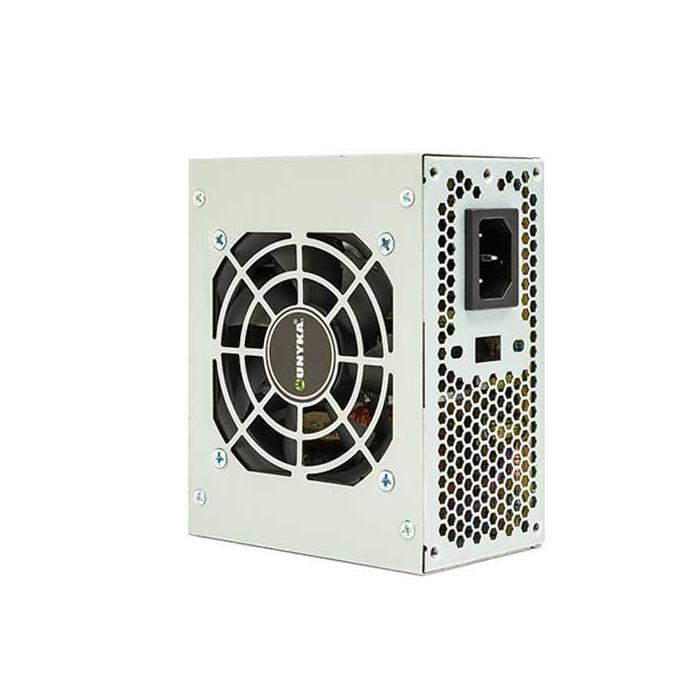

The UNYKAch MATX SFX is a 300 W power supply unit with a compact form factor, designed for small cases. Its aluminium colour finish and dimensions of 100 x 63 x 125 mm (width x height x depth) make it easy to integrate into small systems. It features active power factor correction and achieves 85% efficiency. It supports an AC input voltage of 110 to 230 V with a frequency of 50 to 60 Hz and an input current of 2 A. The non-modular cabling includes a 20+4 pin ATX connector for the motherboard. It distributes its power across the usual rails: 240 W on the +12 V line, with a maximum output current of 20 A, and 49.8 W on both +5 V and 3.3 V. It has protection against overcurrent, overvoltage, short circuit and undervoltage.
Specifications
Power
- Total power: 300 W
- AC input voltage: 110 - 230 V
- AC input frequency: 50 - 60 Hz
- Input current: 2 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 49.8 W
- Combined power (+12V): 240 W
- Combined power (+5V): 49.8 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 10 W
- Max output current (+3.3V): 6 A
- Max output current (+12V): 20 A
- Max output current (+5V): 6 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2 A
- Efficiency: 85%
- Power protection features: Over current, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 3
- Peripheral (Molex) power connectors (4-pin): 2
- CPU power connector (4+4 pin): Yes
- Cabling type: Non-Modular
Performance
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
- ATX version: 2.3
Design
- Product colour: Aluminium
- Fan diameter: 8 cm
- Number of fans: 1 fan(s)
- Fan location: Top
Certificates
- Compliance certificates: RoHS
- Certification: CE EN60950 TÜV ErP OVP/UVP/OTP/OCP/OLP/OPP/SCP/ETC APFC
Weight & dimensions
- Width: 100 mm
- Depth: 125 mm
- Height: 63 mm
