Description

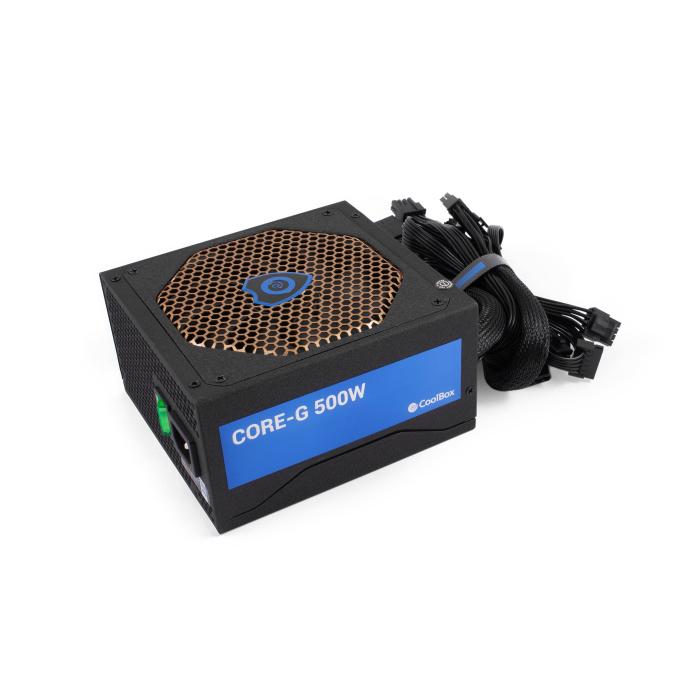

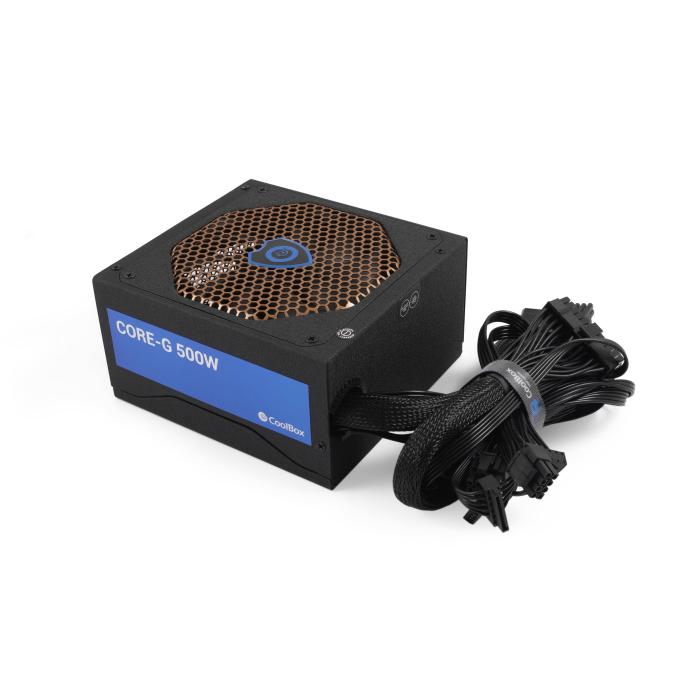

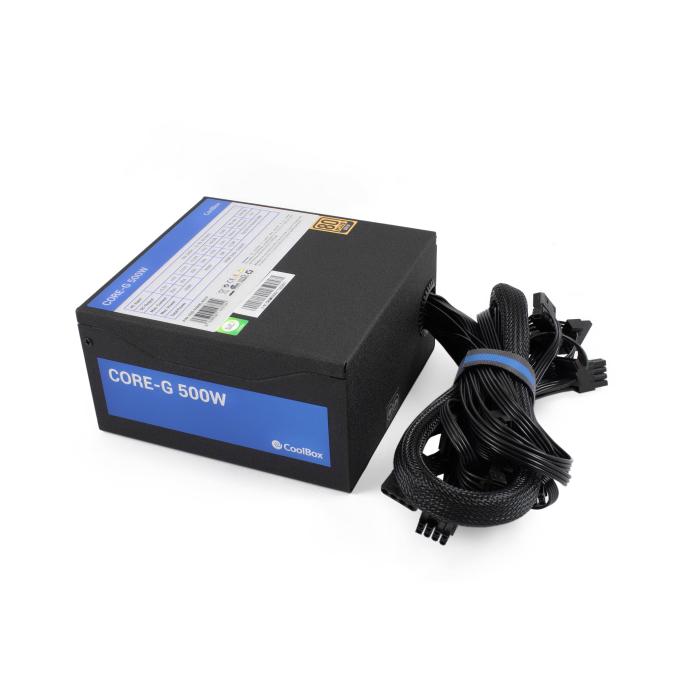

The CoolBox Core-G is a 500 W ATX power supply unit with 80 Plus Gold certification, in black and weighing 2.18 kg. Its dimensions of 150 x 86 x 160 mm (width x height x depth) fit standard ATX cases. It supports an input voltage of 100 to 240 V and a frequency of 50 to 60 Hz, with a maximum input current of 4 A at 110 V and 8 A at 220 V. It features active power factor correction and achieves a power factor of 0.99 alongside an efficiency of 87%. It distributes the load across two +12 V rails of 20 A each, plus +3.3 V, +5 V and +5 VSB outputs of 20 A, with combined power of 100 W on +5 V, 12.5 W on +5 VSB and 6 W on -12 V. It includes protection against overvoltage, overvoltage, short circuit and undervoltage.
Specifications
Power
- Combined power (+3.3V): 100 W
- Combined power (+5V): 100 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V1): 20 A
- Max output current (+12V2): 20 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 87%
- Power protection features: Over power, Over voltage, Short circuit, Under voltage
- Total power: 500 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Maximum input current (@110V): 4 A
- Maximum input current (@220V): 8 A
- Power factor: 0.99
- Power Factor Correction (PFC) type: Active
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 3
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.3
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
- Weight: 2.18 kg
Packaging data
- Manual: Yes
