FSP VITA GM 650W power supply unit 20+4 pin ATX ATX Black

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Product 6 image

Product 7 image

Product 8 image

Product 9 image

Product 10 image

Product 11 image

Product 12 image

FSP VITA GM 650W power supply unit 20+4 pin ATX ATX Black

100.81 €

83.31 € without VAT

Amount

Brand: FSP

SKU: 118011 PRC: 615604 EAN: 4713224529580 PN: PPA6506602

Description

FSP VITA GM 650W, 650 W, 100 - 240 V, 50/60 Hz, 8-4 A, Active, 100 W

Specifications

Power

Total power: 650 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 8-4 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 650 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54.17 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

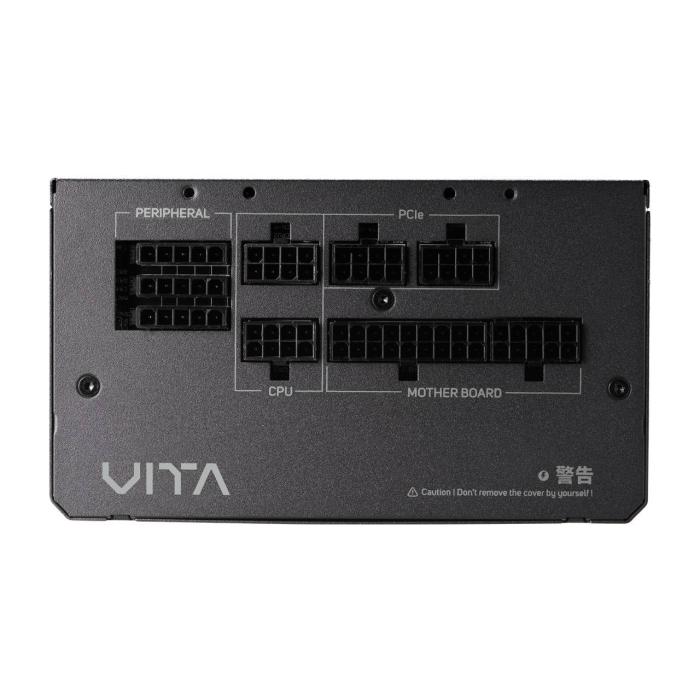

Ports & interfaces

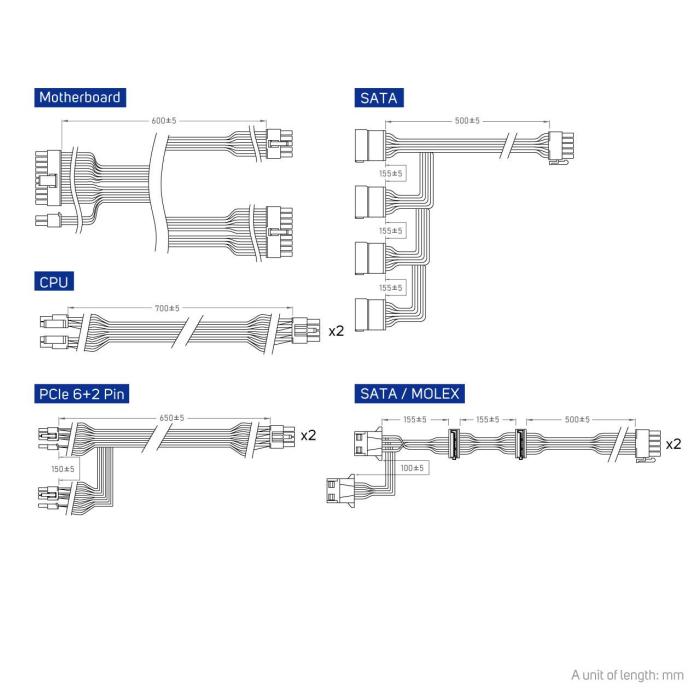

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
SATA power cable length: 500 mm
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 4
CPU power connector (4+4 pin): Yes
CPU power cable length: 70 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Bearing technology: HYB

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top

Packaging content

Cables included: CPU, Peripheral (Molex), SATA

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
