CoolBox Force BR-500 power supply unit 500 W 20+4 pin ATX ATX Black

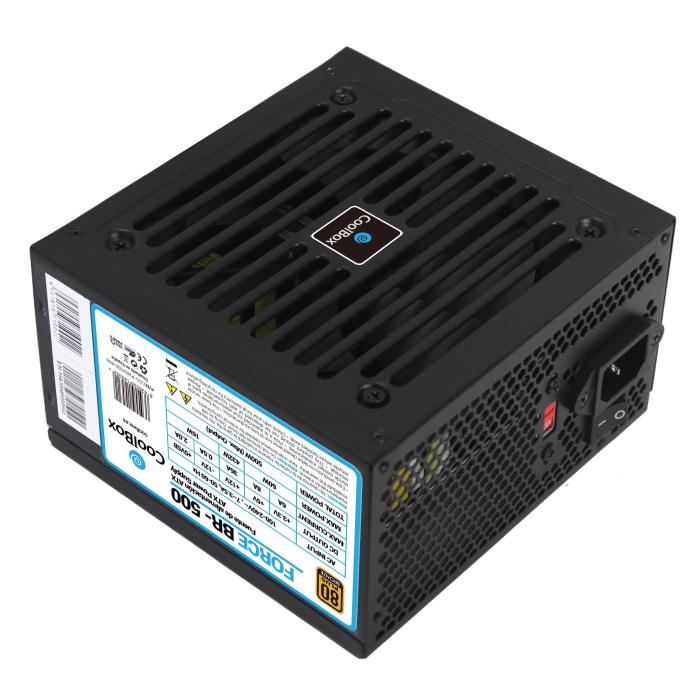

Product 1 image

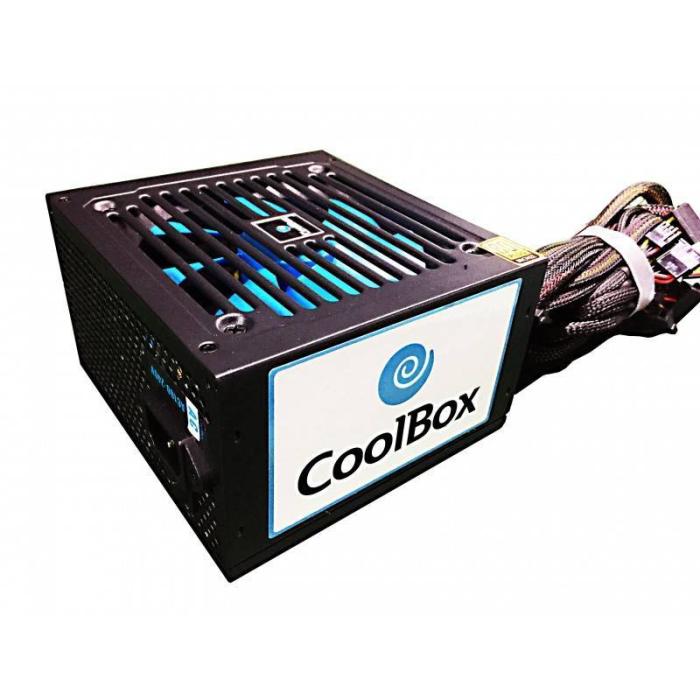

Product 2 image

CoolBox Force BR-500 power supply unit 500 W 20+4 pin ATX ATX Black

36.00 €

29.75 € without VAT

Amount

Brand: COOLBOX

SKU: 80081 PRC: 197166 EAN: 8436556145322 PN: COO-PWEP500-85S

Description

Specifications

Power

Total power: 500 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Maximum input current (@110V): 7 A
Maximum input current (@220V): 3.5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 60 W
Combined power (+12V): 432 W
Combined power (+5V): 60 W
Combined power (-12V): 16 W
Combined power (+5Vsb): 16 W
Max output current (+3.3V): 6 A
Max output current (+12V): 36 A
Max output current (+5V): 8 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2 A
Efficiency: 85%
Power protection features: Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 1
CPU power connector (4+4 pin): Yes
Floppy drive power connector: 1
Floppy disk drive connector: Yes
PCI Express connector: Yes
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 2.31

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes

Packaging content

Cables included: AC

Certificates

Compliance certificates: RoHS
Certification: CE, WEEE

Packaging data

Manual: Yes
Package type: Box
