Return
Product 1 image

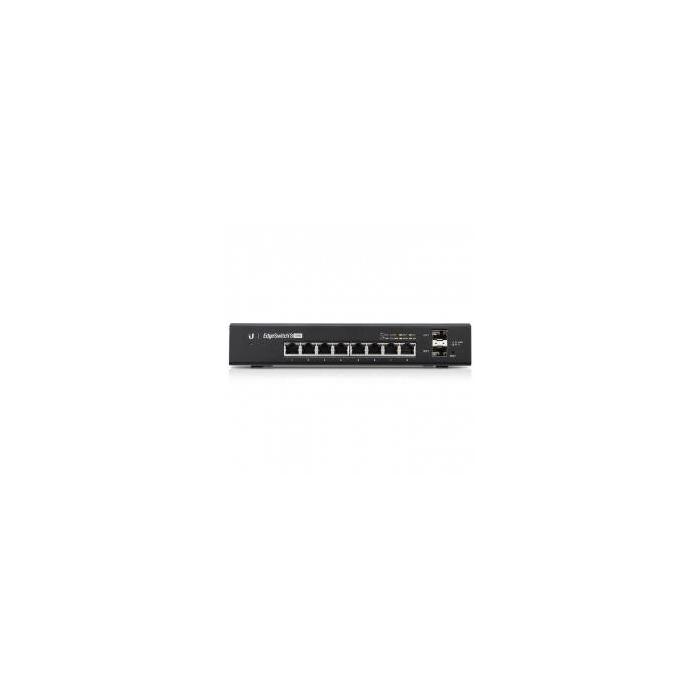

Ubiquiti EdgeSwitch 8 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Not avaliable

More info

Brand: UBIQUITI NETWORKS
SKU: 79138 PRC: 158917 EAN: 810354025679 PN: ES-8-150W

Description

Specifications

Management features

  • Switch type: Managed
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • System event log: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2
  • Console port: RJ-45
  • Power connector: DC-in jack

Network

  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Spanning tree protocol: Yes
  • Active link detection: Yes
  • VLAN support: Yes
  • Virtual LAN features: Tagged VLAN, Port-based VLAN
  • Number of VLANs: 255

Data transmission

  • Switching capacity: 20 Gbit/s
  • Throughput: 14.88 Mpps
  • MAC address table: 8000 entries
  • Number of trunks: 8
  • Jumbo frames support: Yes

Security

  • DHCP features: DHCP server
  • Access Control List (ACL): Yes
  • Access Control List (ACL) rules: 100
  • IGMP snooping: Yes
  • Security algorithms: SNMP, SSH, SSH-2
  • MAC address filtering: Yes
  • SSH/SSL support: Yes
  • Authentication: Guest VLAN, Port-based authentication

Multicast features

  • Multicast support: Yes

Design

  • Stackable: No
  • Product colour: Black
  • LED indicators: Activity, LAN, Link, PoE, Speed
  • Wall mountable: Yes

Power

  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input voltage: 42 - 56 V
  • Power consumption (max): 150 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Power over Ethernet (PoE) voltage range: 50 - 75 V
  • Power over Ethernet (PoE) power per port: 34.2 W

Operational conditions

  • Operating temperature (T-T): -25 - 60 °C
  • Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

  • Width: 204 mm
  • Depth: 235 mm
  • Height: 43 mm
  • Weight: 1.72 kg

Packaging data

  • Mounting brackets included: Yes

Certificates

  • Certification: CE, FCC, IC

Logistics data

  • Harmonized System (HS) code: 85176990
