Description

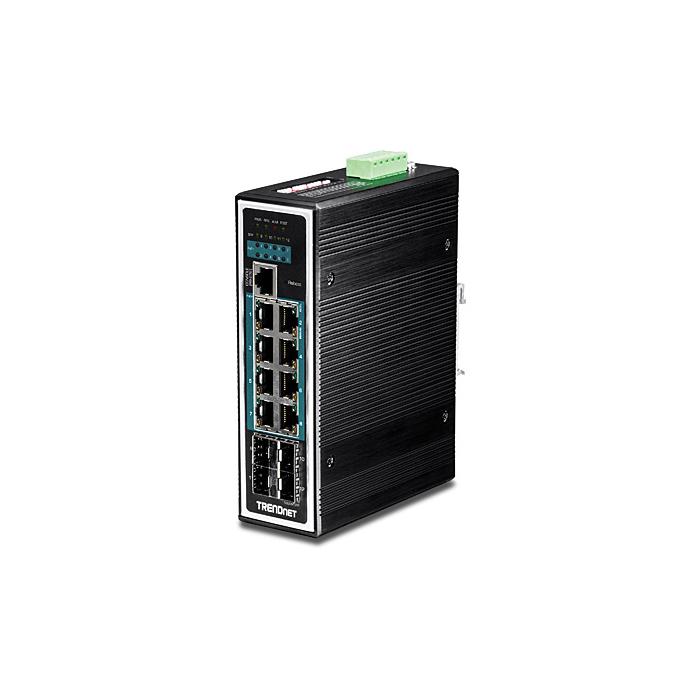

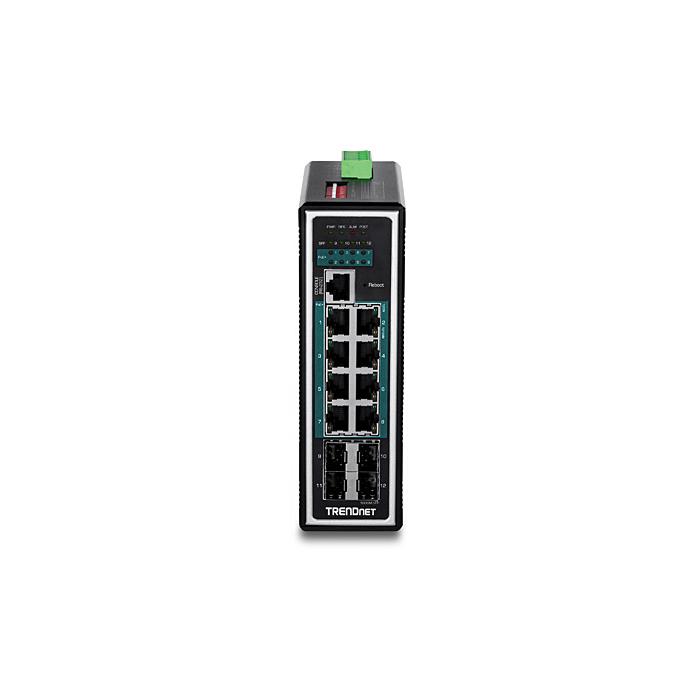

The managed L2+ switch Trendnet TI-PG1284i, in black finish, offers eight Gigabit Ethernet ports (10/100/1000) with Power over Ethernet (PoE) support, plus four SFP slots for fibre uplinks. Its web-based management includes ARP inspection, event logging and QoS, and complies with MIB RFC 1213, 1493, 1643 and 1757. Layer 2+ management allows advanced VLAN configuration, storm control, spanning tree, link aggregation and full duplex, with automatic MAC address learning. Its RJ-45 console port facilitates initial setup, making it a suitable option for networks requiring PoE and enterprise-level features.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: RFC 1213, RFC 1493, RFC 1643, RFC 1757
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 4
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- MAC address auto-learning supported: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN, Protocol-based VLAN
- Number of VLANs: 256
Data transmission
- Switching capacity: 24 Gbit/s
- Throughput: 17.86 Mpps
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 128 MB
Security
- DHCP features: DHCP server
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS, HTTPS, SNMP
- Loop protection: Yes
- Authentication: Port-based authentication
Multicast features
- Multicast support: Yes
- Multicast MAC address table: 256 entries
Design
- Rack mounting: No
- Product colour: Black
- LED indicators: Yes
- International Protection (IP) code: IP30
- DIN rail mounting: Yes
Performance
- Mean time between failures (MTBF): 322805 h
Power
- Redundant power supply (RPS) support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Output voltage: 48 V
- Output current: 5 A
- Power consumption (max): 260 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 240 W
Other features

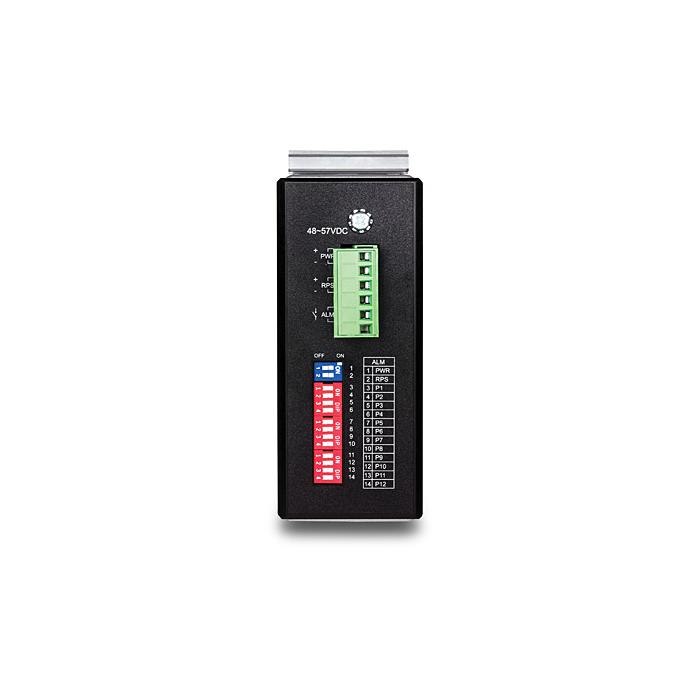

- Terminal block port: Yes
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 170 mm
- Depth: 132 mm
- Height: 50 mm
- Weight: 920 g
Packaging content
- Quick start guide: Yes
Packaging data
- Terminal block included: Yes
- Resource CD: Yes
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
